TS5000A Tripod Turnstile
User Manual
Page | 12 Copyright©2020 ZKTECO CO., LTD. All rights reserved.
3 Menus
Function introduction 3.1
1. After powered on, the LCD screen on the control board will display the default state showing the
current working mode.
2. There are 4 buttons on the control board: UP, DOWN, ENT, and ESC, show as Figure 3-1:
UP: to move upwards or increase the value.
DOWN: to move downwards or decrease the value.
ENT: to enter a menu setting item or confirm the current modified value.
ESC: to return to the previous menu or cancel the current operation.

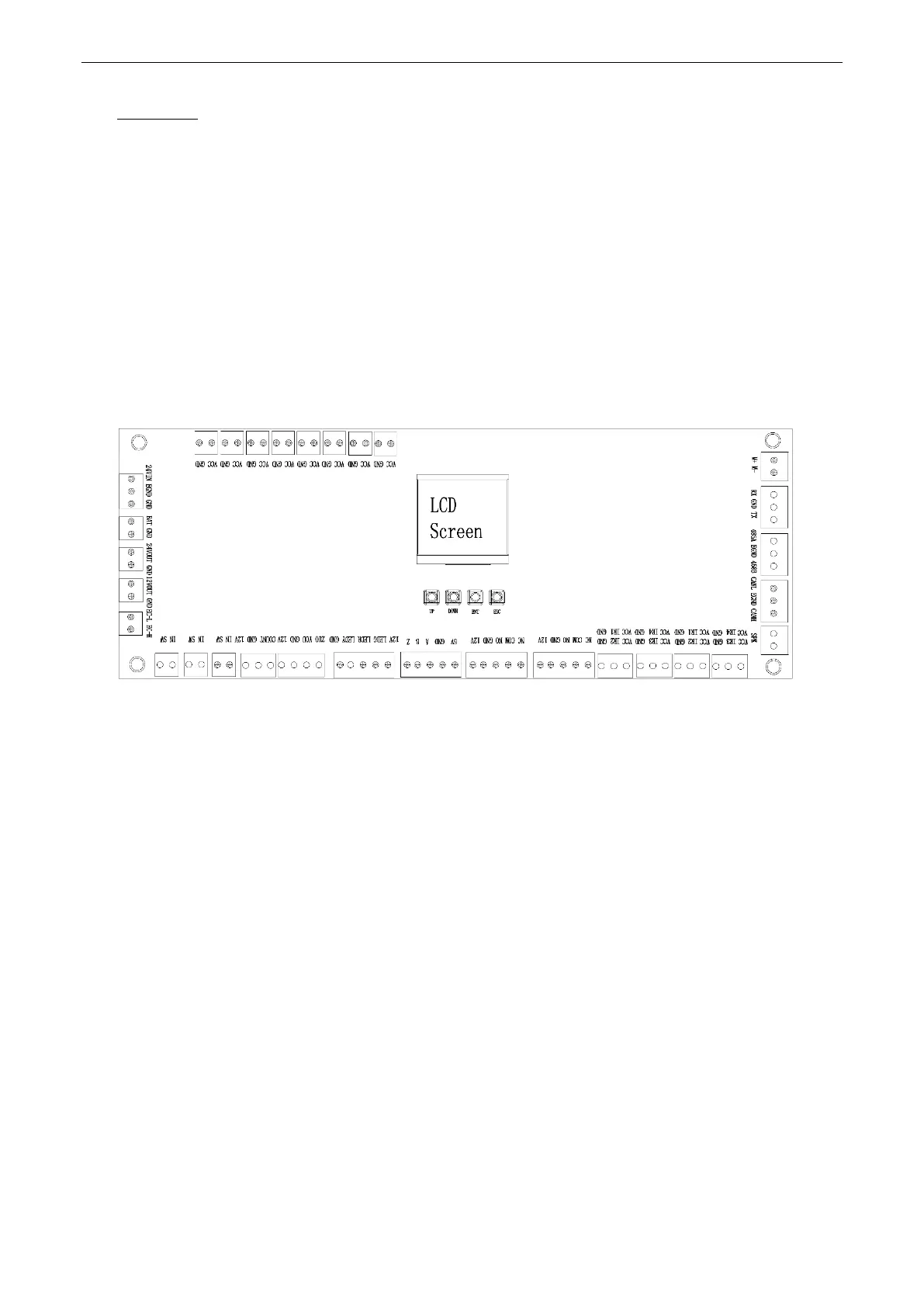

Figure 3-1
3. Operation and instruction of menu
Press the ENT button and enter the password input interface. The default password is: UP, UP, DOWN,
DOWN, DOWN, DOWN. You may press the ESC button to erase the last input. After entering the
menu, press UP or DOWN to choose a menu item, then press ENT to enter the interface and adjust
such function or value.
Menu Introduce 3.2
After input correctly password then press ”OK” and the menu operation interface is displayed.
The menu has the following options:
1. Position adjustment of the swing barrier
Type: zero (default)
Left limit
Right limit
2. Passing mode
Opening mode: Two-way swipe (default)
To Next Page
