TS5000A Tripod Turnstile
User Manual
Page | 10 Copyright©2020 ZKTECO CO., LTD. All rights reserved.

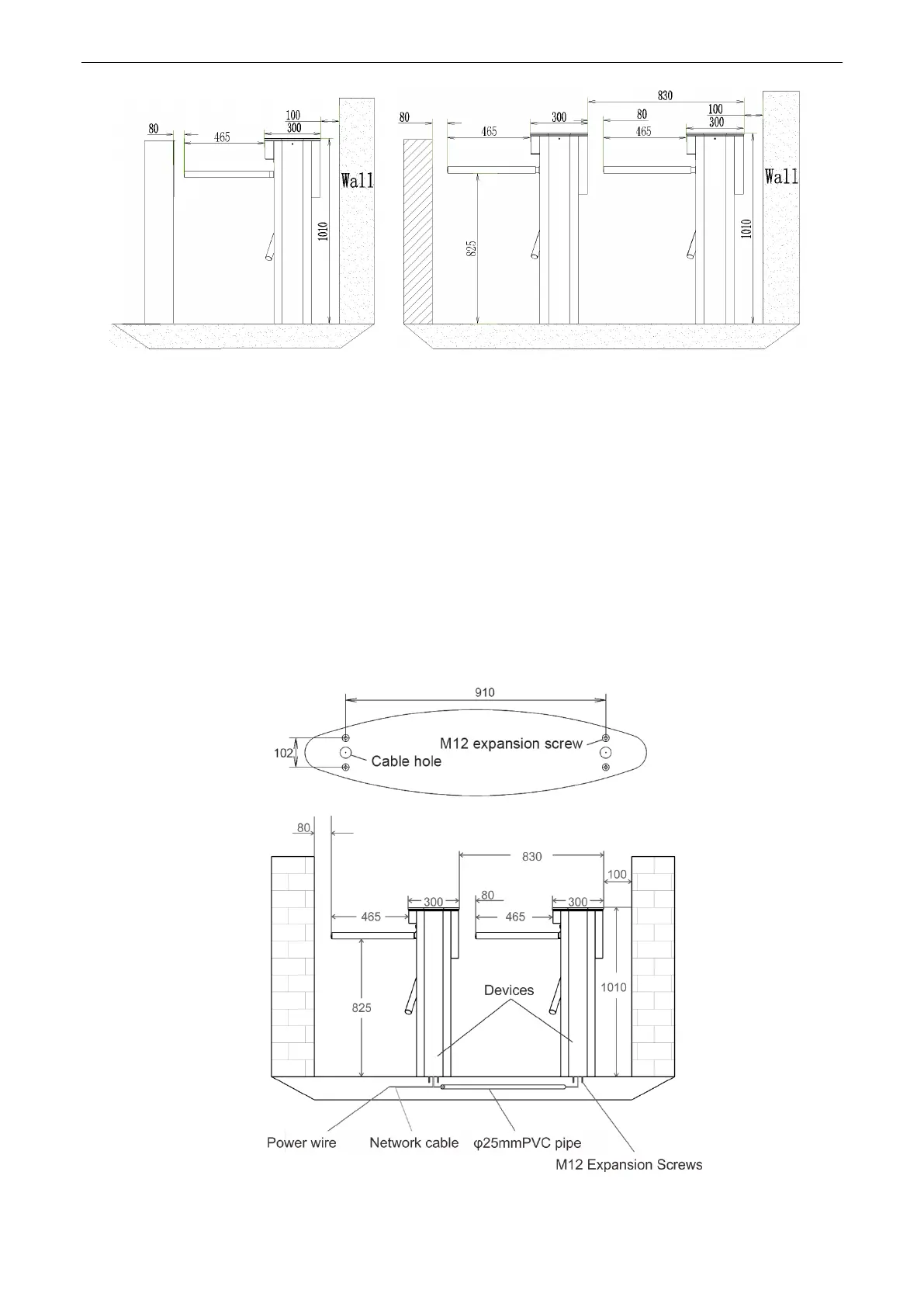

Figure 2-1 TS5000A Single channel and dual channel
Cables Installation and Fixing 2.3
For the outlets of the concealed cables, please refer to the drawing indicating the cable holes. The input
voltage for this tripod turnstile is AC110-220V, and its master and slave are connected with an 5-core cable
(signal) and a 2-core cable (power). When installing the tripod turnstile, the user only needs to connect it
to the corresponding ports. Note that the PVC conduits are laid 100mm under the ground, with the height
of the exposed part not exceeding 100mm. In addition, the conduit outlet is bent to prevent the ingress of
water into the conduit.
TS5000A series installation holes and cabling positions are as shown in Figure 2-2:
Figure 2-2
