X-Ray Inspection System
User Manual
Page | 22 Copyright©2020 ZKTECO CO., LTD. All rights reserved.
1- Keyboard outer cover 7 - Key zone
2 - Key slot 8 - Touch pad mouse
3 - Start button 9 - Fingerprint reader USB interface
4 - Indicator light 10 - Touch pad mouse USB interface
5 - Fingerprint reader 11 –DB15 Control interface
6 - Emergency stop button

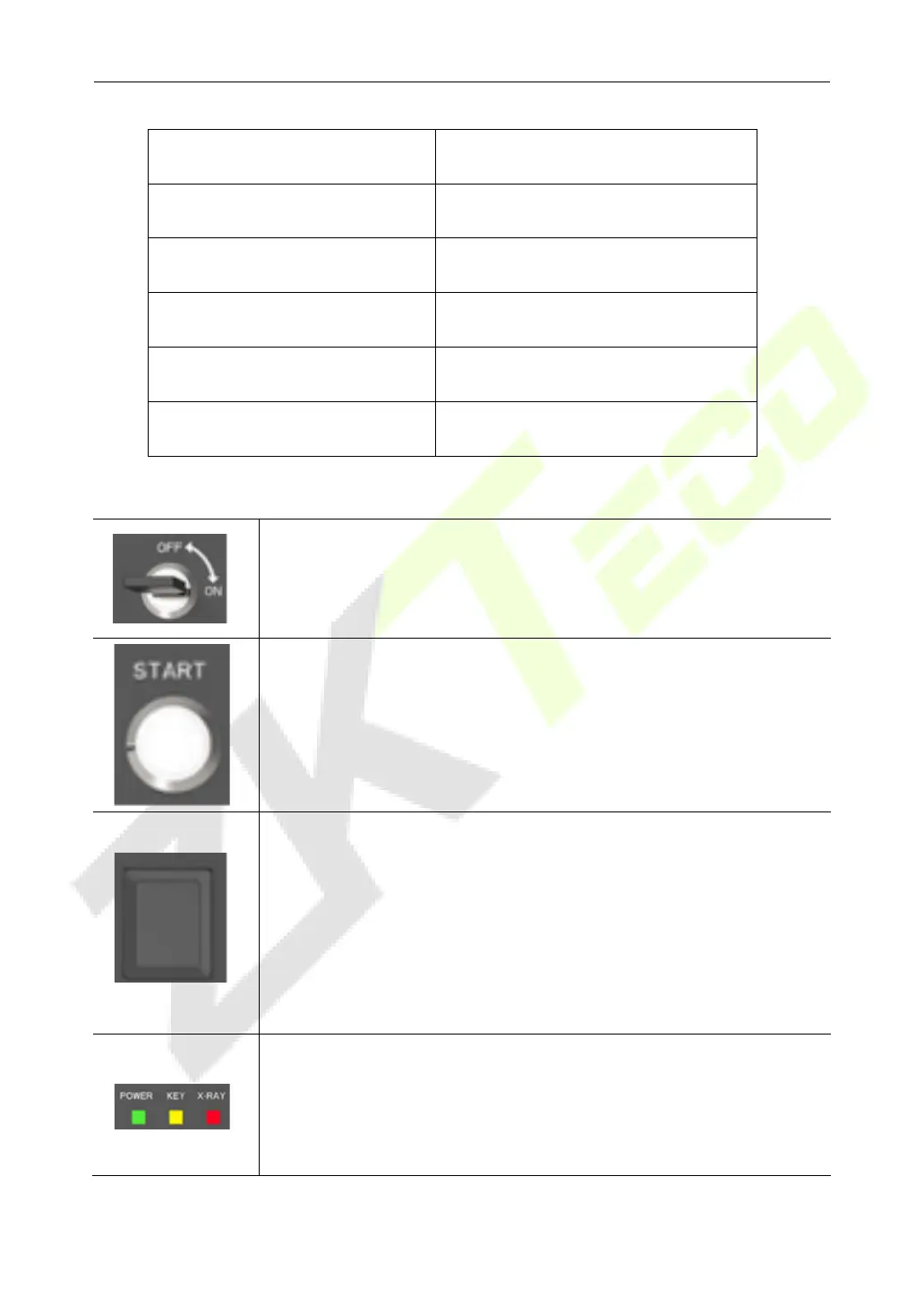

Description of Components and key functionalities
Key slot: The main switch is designed to power on the equipment
after connecting to an external power supply. It is also used to
prevent unauthorized persons from operating it.
Start button: Press the S
tart button to start the equipment
operation and the green indicator light will glow indicating that
the equipment has started.
Fingerprint reader: The fingerprint reader is used to login or add a
new user. If the fingerprint is successfully verified, a green light will
flicker. If the fingerprint verification failed, a red light will flicker.
The fingerprint reader includes a storage device that can store the
fingerprint data of 65,535 users and each user can enroll up to 10
fingerprints. The User name can only be set to a number maximum
of 6 digits i.e the User ID must be in the range of 1-65535.
Indicator light:
(i) X-Ray indicator light (red): When the security equipment starts X-
Ray generation, the red light will glow; when the X-Ray scanning is
completed, the red light will fade out.
