X-Ray Inspection System
User Manual
Page | 28 Copyright©2020 ZKTECO CO., LTD. All rights reserved.
Ready
Displays the normal working state .
Emergency
Displays (Emergency) if the emergency button is pressed .

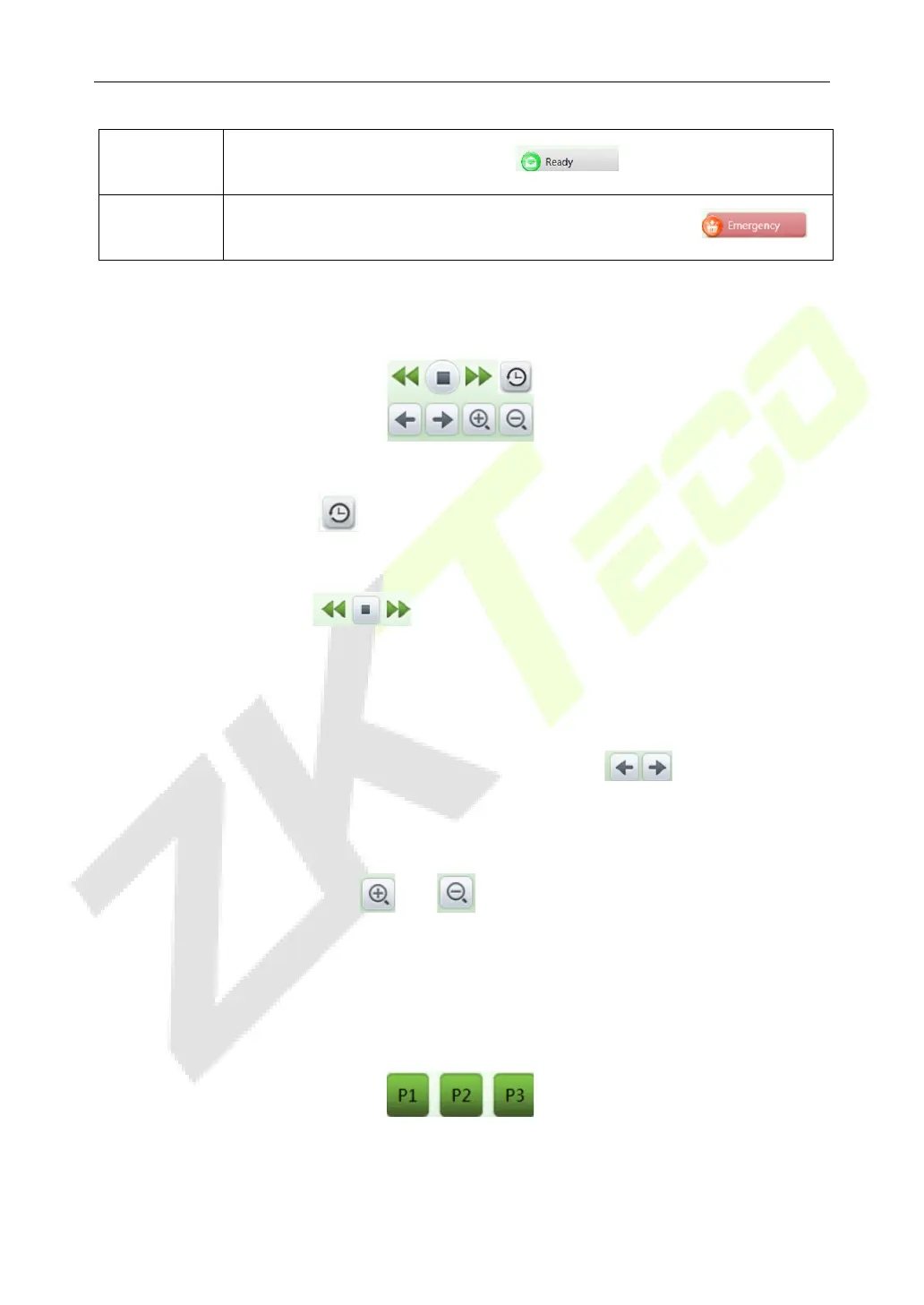

Operating function area 4.4
Figure 4-3 Operating function area
Restore the image: Click" ", after processing the image to restore the image color
which has been set on the system.
Conveyor control: Press " " on the screen or tap the corresponding conveyor
control key on the Special Keyboard to accomplish the "Forward", "Stop", "Back"
movements of the transmission belt, respectively.
Image pull front, pull back: During image interpretation, if the scanned image has
crossed the display, you can pull the image to front. Click icon or press the
direction buttons on the control board to drag the image, it allows the operator to view
the previous images.
Image zoom in and out: Click and or press the zoom button to zoom in and
zoom out the image. It could zoom in up to 64 times.
Combined Multi-processing Function keys: Through "4.12.2 Keyboard" in the
combination of key settings, image processing functions and P1-P3 keys facilitate the
image processing operations.
Figure 4-4 Combined multi-processing function keys
To Next Page
