Zodiac G2 - Removal of Diaphragm

SECTION 3 – QUICK RELEASE CASSETTE SYSTEM
STEP 2: Removal of Diaphragm

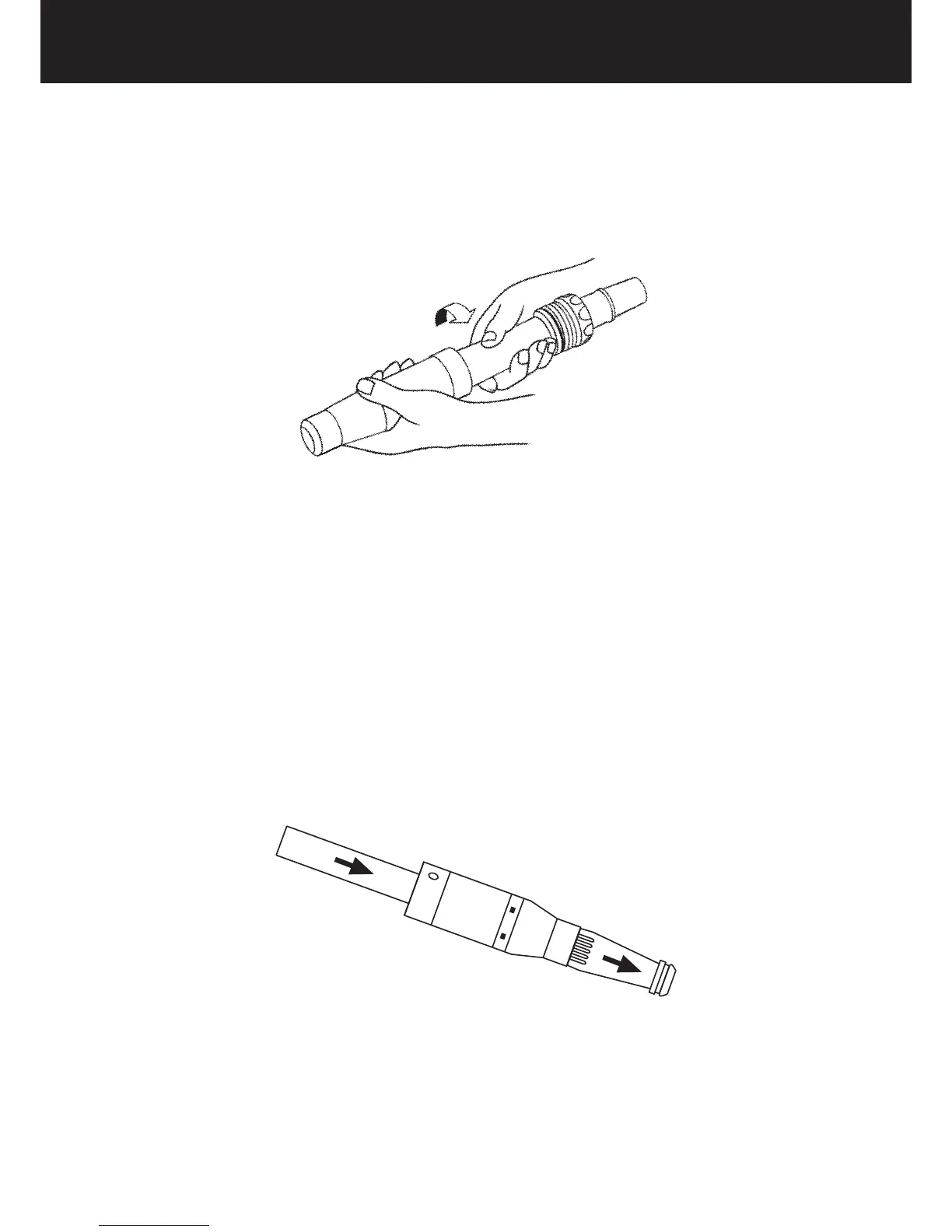

Grasp the Extension Pipe in one hand and unscrew the Cassette +/- 4 turns anti-clockwise
until the two separate (Diagram 9).
Push the Inner Extension Pipe with Diaphragm through the Cassette Body (Diagram 10).
Diagram 9
Diagram 10
8
