Zodiac G2 - Cassette Reassembly

SECTION 3 – QUICK RELEASE CASSETTE SYSTEM
STEP 6: Cassette Reassembly

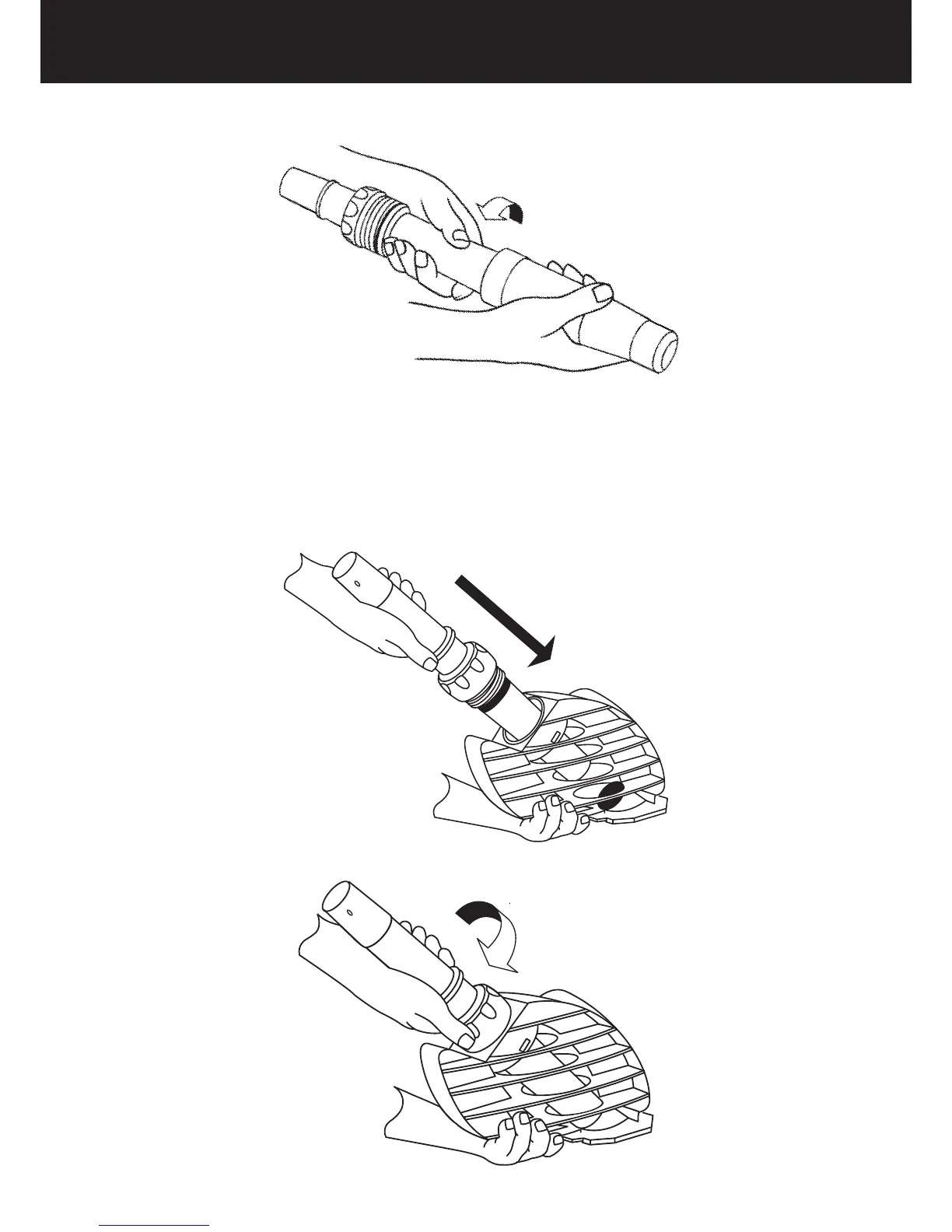

Re-insert the assembled Cassette unit into the G2™ body (Diagram 16) and tighten Cassette Swivel nut
+/- 3 turns clockwise until Hand-nut is ush with the threaded Locking Collar (Diagram 17).
Diagram 15
Diagram 17
Diagram 16
11
