SECTION 6 – PARTS IDENTIFICATION

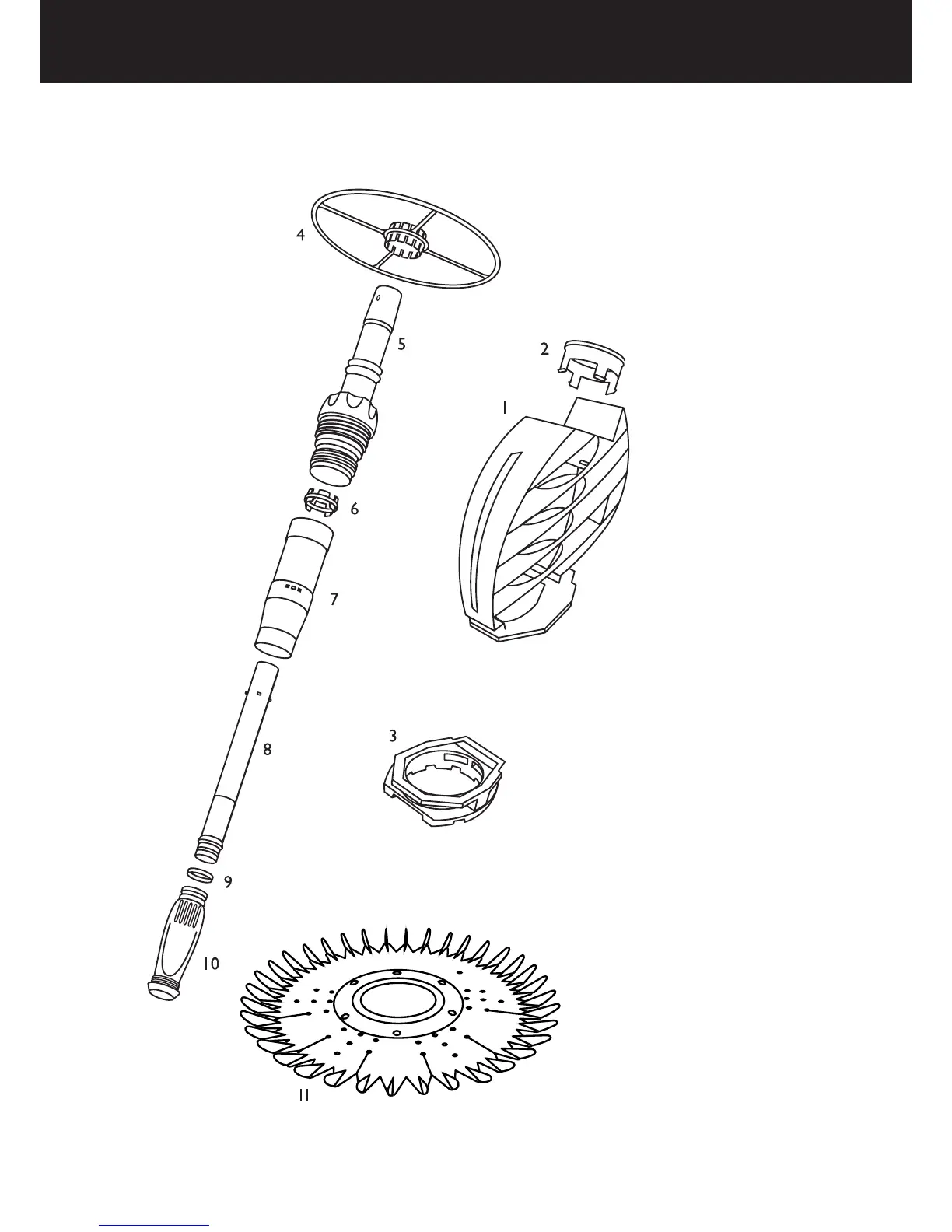

Exploded diagram - G2™
Description
1. Main Body
2. Locking Collar
3. Flexi-foot
4. Deector Wheel
5. Extension Pipe with Hand-nut
6. Compression Ring
7. Cassette Diaphragm Chamber
8. Inner Extension Pipe
9. Retaining Ring
10. Long-Life Diaphragm
11. 36 Fin Disc
