SECTION 1 - INSTALLATION
STEP 3: Assembling the Hoses
1. Always insert the male hose cuff into the female cuff and
twist until hose locks together. Hoses must connect fairly
tightly. Setting 1 or 2 is recommended on the Twist Lock
ratchet system. The ideal length of hose is from the weir to
the farthest point of the pool plus one extra section of hose.
If the weir is opposite the steps, use lowest step as furthest
point (see Diagram 3). To ensure the best performance from
your G2™, please ensure that only genuine ZODIAC
Long-Life Twist Lock Hoses are used.
2. Fit the hose weight to the rst section of the hose +/- 1 meter from the G2™ head.
3. Fit the Hose Protector (see Page 4).
Weir

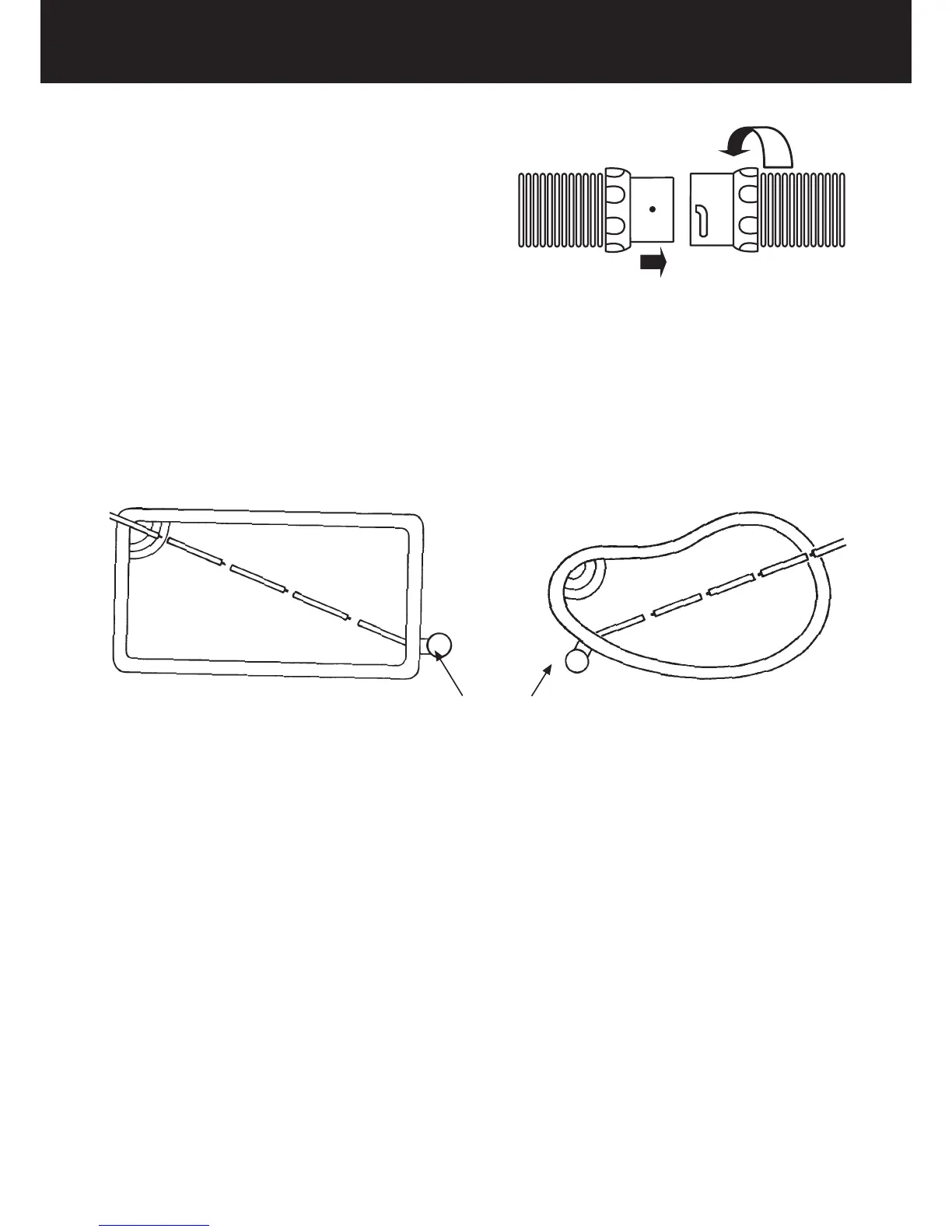

Diagram 3: Ideal Hose length
4. Bleed all the air from the hose by placing one end over the return jet – thus lling the hose length with water.
5. Keeping the hose-ends underwater, move the hose from the return line to the weir and connect the male cuff
directly to the Auto Weir Valve 90 Elbow.
6. Ensure that the Auto Weir Valve is rmly attached to the weir vacuum lid.
