4.3.3 Reassembling the diaphragm

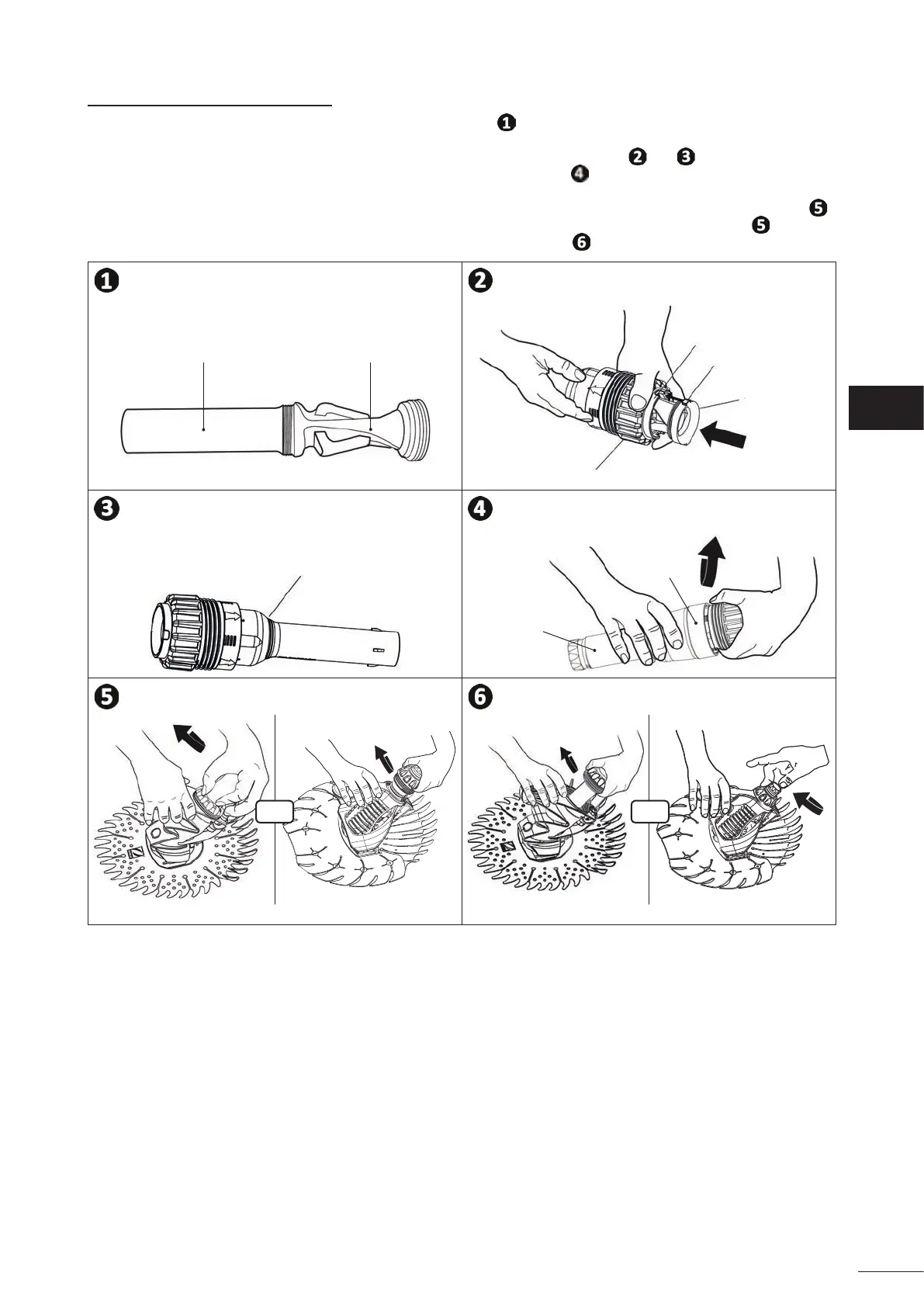

• Clip the diaphragm inside the internal output hose (see image ).
• Insert the internal output hose and the diaphragm into the cartridge. Align the diaphragm with the notches and pull
in a straight line (do not twist) unl the edge of the diaphragm is visible (see image and ).
• Screw the external output hose onto the cartridge and ghten (see image ).
• For the T3 / R3 / B3 models, check that the seal is sll in place inside the nut. Insert the cartridge inside
the body of the cleaner, slide the clamping nut above the external output hose and ghten (see image ).
For the T5 Duo model, insert the cartridge into the body of the cleaner and ghten the nut (see image ).
• Check that the external output hose pivots freely by rotang it (see image ).
Internal output
hose
Diaphragm
Cartridge
Diaphragm
Tab
Notch
Diaphragm edge
Cartridge
External output
hose
T3 / R3 / B3 T5 Duo T3 / R3 / B3 T5 Duo
oror
EN

Zodiac T3 Specifications

General

Pool Type	In-ground
Warranty	2 years
Pool Surface	Concrete, tile, vinyl, fiberglass
Cleaning Coverage	Floor and walls
Power Source	Pool Filtration System
Weight	18.5 lbs
Type	Suction-side pool cleaner
