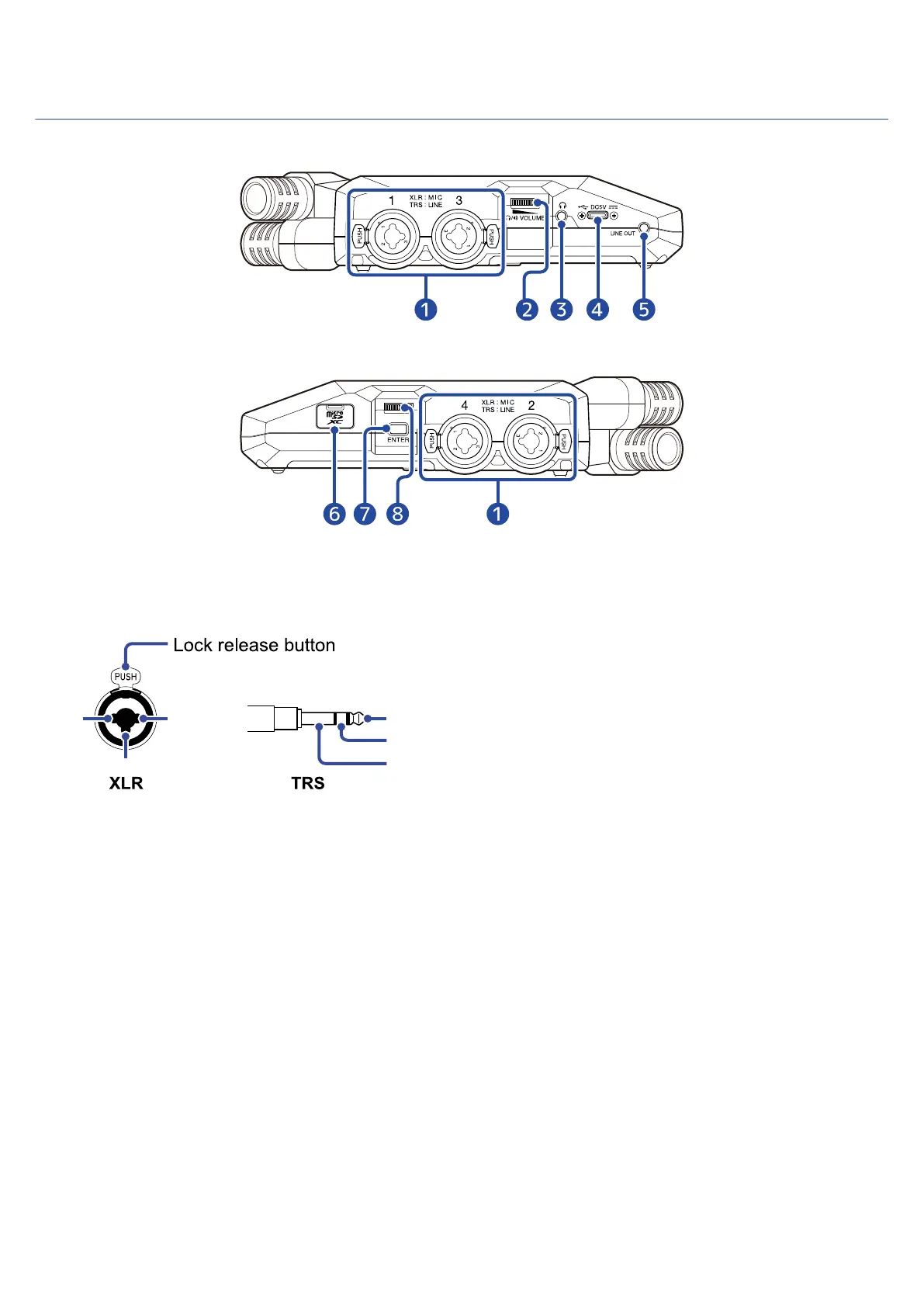

Left and right sides
■ Left side
■ Right side
❶
INPUT 1, INPUT 2, INPUT 3 and INPUT 4 jacks
Connect mics and instruments to these. These can be used with XLR and TRS plugs.
When disconnecting an XLR plug, pull it while pushing the connector lock release button.
TIP: HOT
RING: COLD
SLEEVE: GND
❷
VOLUME
This adjusts the volume of the headphone output and built-in speaker.
❸
Headphone jack
This can output sound to headphones.
❹
USB port (Type-C)
Connect this to a computer, smartphone or tablet to use file transfer functions and to use the
H6essential as an audio interface.
This supports operation on USB bus power.
❺
LINE OUT jack
This outputs sound to a connected device.
❻
microSD card slot
Insert a microSD card here.
