Zoom V3 User Manual

3

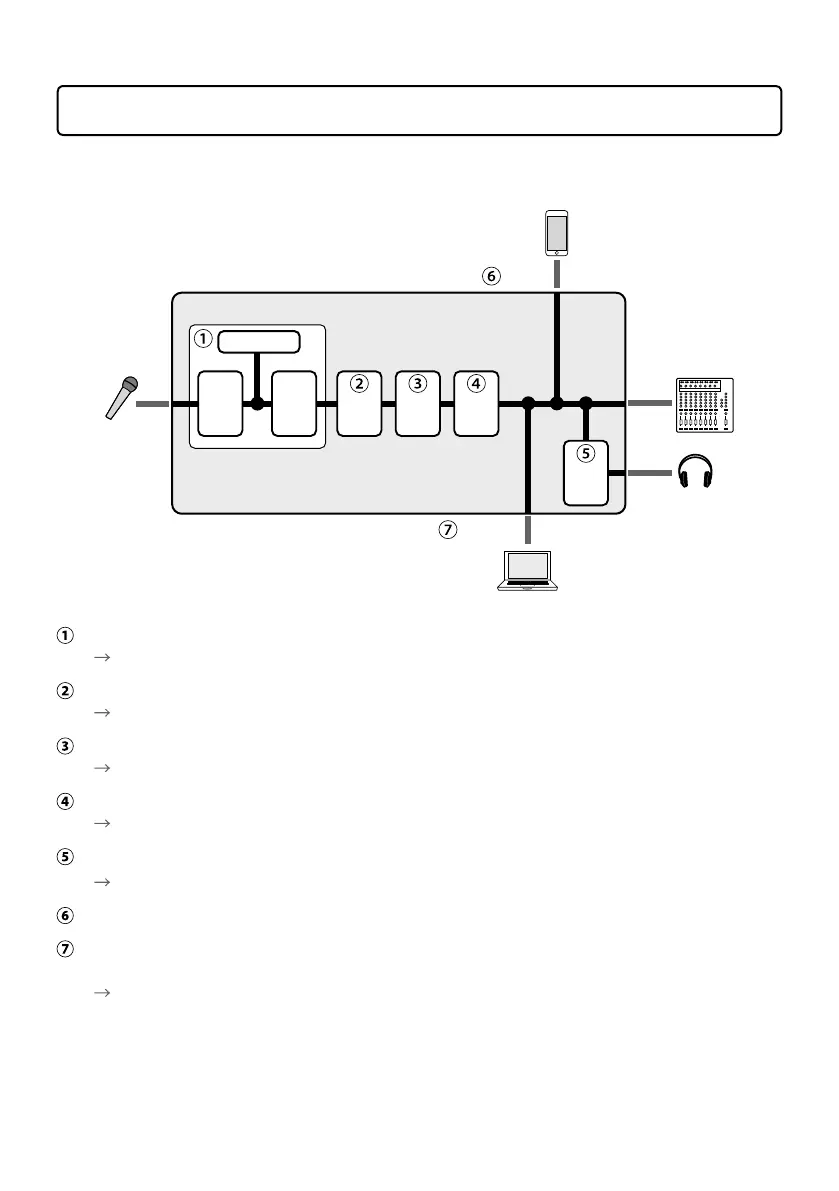

V3 structure
■
Signal ow
USB Audio
AUX IN
INPUT
OUTPUT
PHONES
PA system
Headphone
Computer
Clipping LED
Effect Delay ReverbVolume
Compressor
Enhance
volume
PHONES
Adjust the volume and tone of the mic input.
(
“Adjusting the volume and tone” on page 9)
Alter the voice or add harmony.
(
“Using effects” on page 10)
Apply delay.
(
“Adjusting the delay” on page 12)
Apply reverb.
(
“Adjusting the reverb” on page 13)
Adjust the headphone volume.
( “Adjusting the volume and tone” on page 9)
Audio from smartphones, portable audio players and other devices can be input.
Audio data can be transferred to and from computers using the audio interface
function.
(
“Using audio interface functions” on page 13)

Zoom V3 Specifications

Power

AC adapter voltage	9V DC
AC adapter current	500 mA
phantom power	+48 V
battery type	4 AA batteries
battery life	3.5 hours

Inputs and Outputs

MIC IN input gain	+3 – 40 dB
MIC IN maximum input level	+4 dBu
MIC IN input impedance	3 kΩ or more
AUX IN rated input level	−10 dBu
AUX IN input impedance	22 kΩ
L/R output maximum level	+6 dBu
L/R output impedance	100 Ω
PHONES maximum output	20 mW + 20 mW (into 32 Ω load)

Audio Specifications

sampling frequency	44.1 kHz
A/D conversion	24-bit 128× oversampling
D/A conversion	24-bit 128× oversampling
signal processing	32-bit
frequency response	20 Hz – 20 kHz (+1 dB/−3 dB)

Weight and Dimensions

weight	0.59 kg
depth	150 mm
width	190 mm
height	50 mm
