Zoom V3 User Manual

6

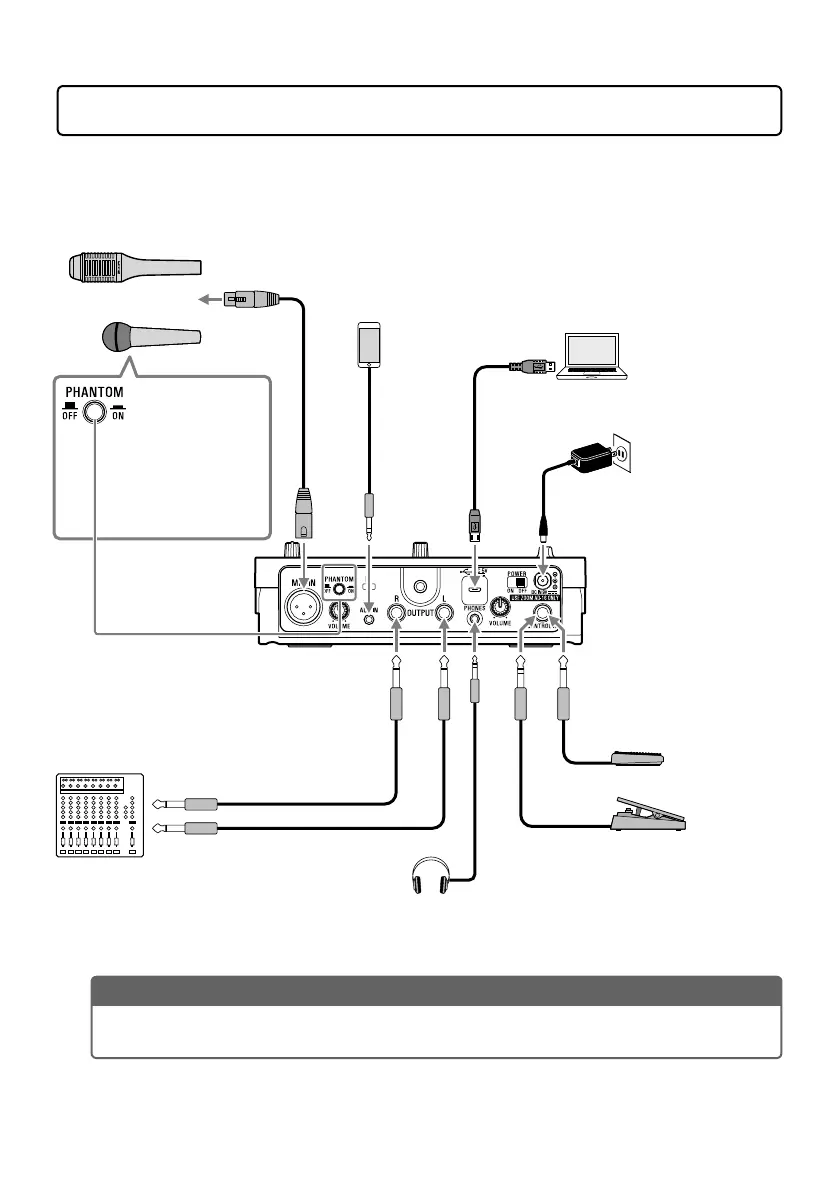

Making connections
■
Connection examples
Computer
AC adapter
(ZOOM AD-16)
Stereo mini plug
headphones
Mic (ZOOM SGV-6 or commercially-available mic)
Use a mic cable to connect it to the MIC IN jack.
Expression pedal
(ZOOM FP02M)
Connect it to the
CONTROL IN connector.
The pedal can be used to
control the effect.
Mixer, PA system, recorder, etc.
Use a cable with a connector that suits
the PA system or recorder input jacks.
When connecting
a ZOOM SGV-6,
condenser mic or
other device that
requires phantom
power, set the
PHANTOM switch
to ON.
or
Footswitch
(ZOOM FS01)
Connect it to the
CONTROL IN connector.
This turns the effect off.
Portable music player, etc.
Adjust the volume on the connected device.
Micro-B
NOTE
Always set the PHANTOM switch to OFF when connecting a device that does not support phantom
power. The device could be damaged if this is not done.

Zoom V3 Specifications

Power

AC adapter voltage	9V DC
AC adapter current	500 mA
phantom power	+48 V
battery type	4 AA batteries
battery life	3.5 hours

Inputs and Outputs

MIC IN input gain	+3 – 40 dB
MIC IN maximum input level	+4 dBu
MIC IN input impedance	3 kΩ or more
AUX IN rated input level	−10 dBu
AUX IN input impedance	22 kΩ
L/R output maximum level	+6 dBu
L/R output impedance	100 Ω
PHONES maximum output	20 mW + 20 mW (into 32 Ω load)

Audio Specifications

sampling frequency	44.1 kHz
A/D conversion	24-bit 128× oversampling
D/A conversion	24-bit 128× oversampling
signal processing	32-bit
frequency response	20 Hz – 20 kHz (+1 dB/−3 dB)

Weight and Dimensions

weight	0.59 kg
depth	150 mm
width	190 mm
height	50 mm
