Network operation with GiS BasePac software
02060420.fm 11.12.07/Ch,Kx Network T8 Control Unit – Version 2.0 3 - 3

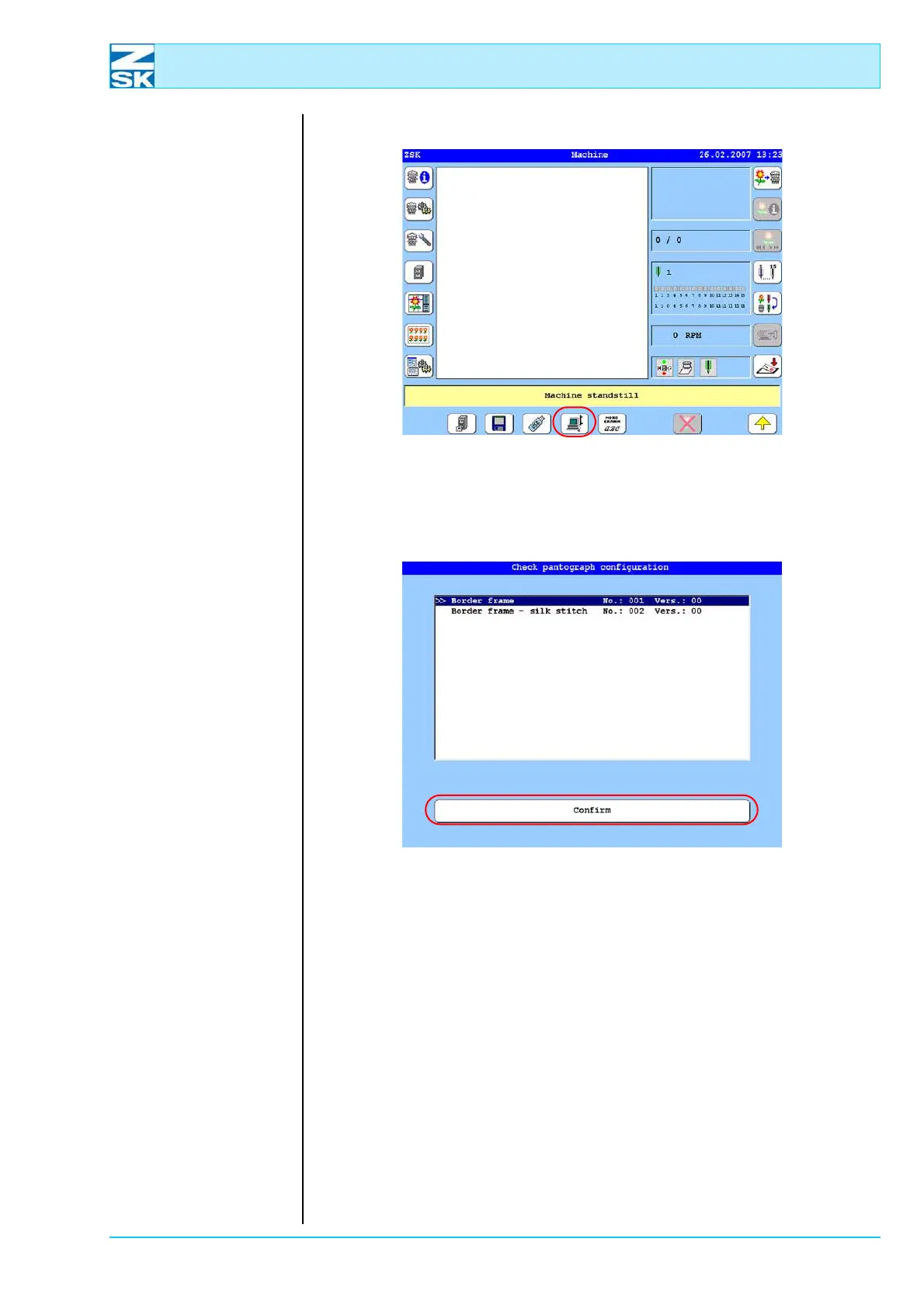

Figure 3.5:
T8 control unit,
machine basic screen
Variant 1
• Press [U5] Select design from network key .
Figure 3.6:
T8 control unit,
check pantograph
configuration
•In the Check pantograph configuration dialog, enter the machine setup used
with the cursor keys.
• Select with the
[L8], [R8] or [OK] keys.
