Chapter4ServiceConguration

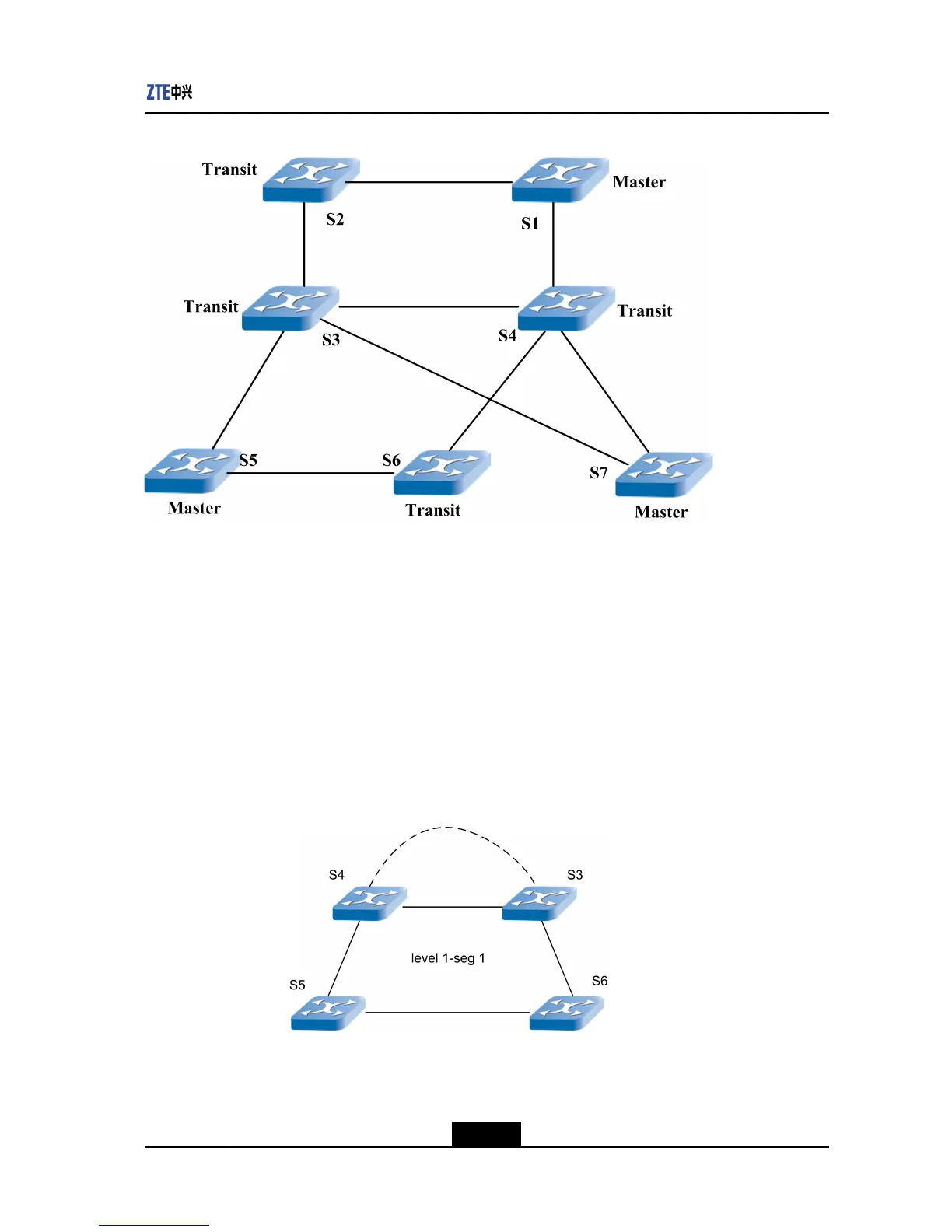

Figure4-37ZESRMulti-RingMulti-DomainDesignFigure
àBasicOperationPrincipleofNonLevel0SegmentLink
HierarchicalZESRtechnologyisbroughtintothecomplexnetwork.Therunning
ofZESRprotocolonsegmentlinkofonelevelisbasedonthattheupperlevel
primaryringorsegmentlinkisnotdown.
AsshowninFigure4-38,S3~S6composethesegmentlinksoflevel1segment
1,whereS3andS4areassistantnodesandS5isthemasternode.S3andS4
canalwaysintercommunicatewitheachotherviaprimaryring.Ifalllinkswhere
S3,S4,S5andS6locateonsegment1oflevel1areup,masternodeS5will
blockitssecondaryport,andifthestatesofsomelinksareDown,thesecondary
portofthemasternodewillbeenabled.
Figure4-38Nonlevel0SegmentLink
