ZXR102900ESeriesCongurationGuide

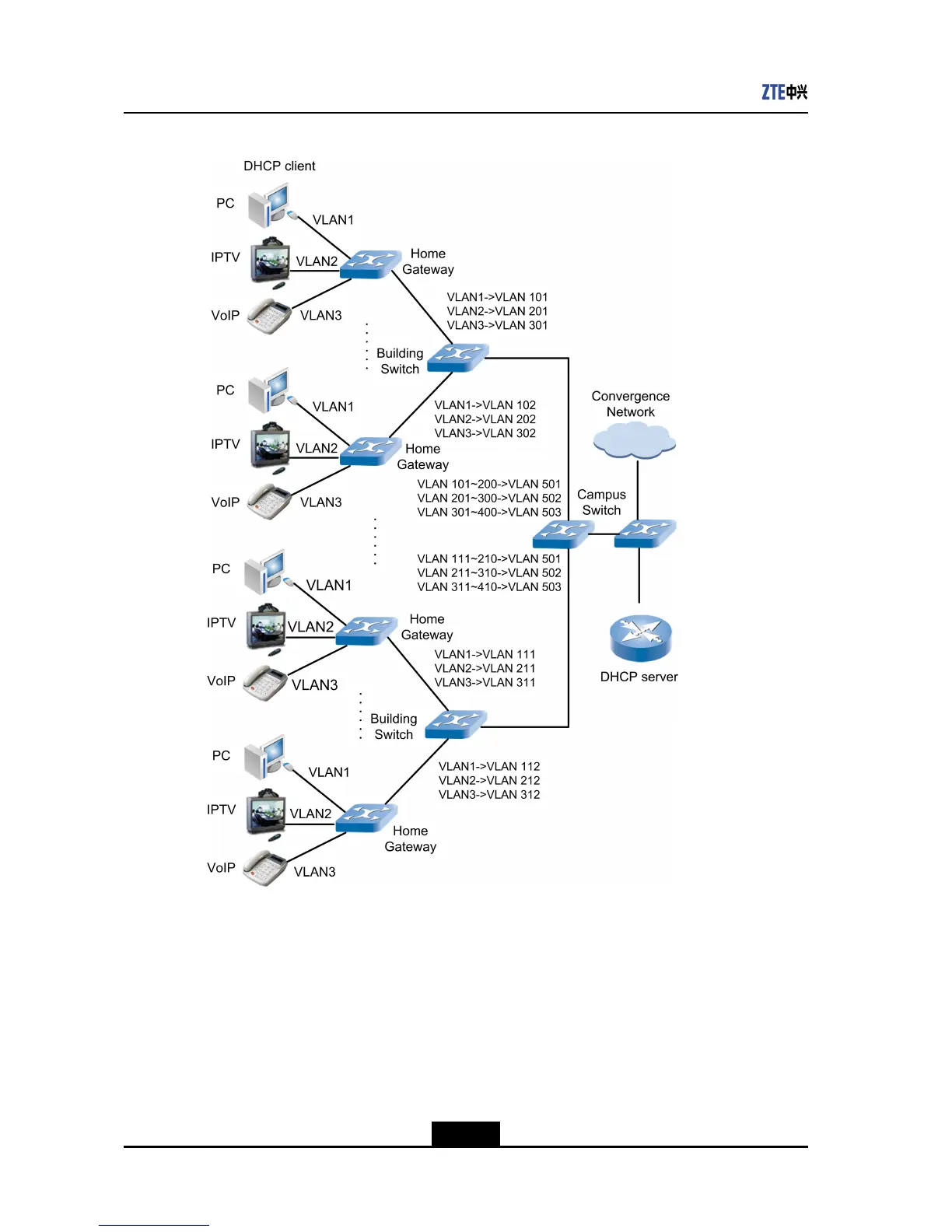

Figure4-47VLANMappingNetworkingDiagram
MappingModes:
Uplink:replacetheCVLANwithSVLANbasedon“Interface+customerVLAN”.
Downlink:replacetheSVLANintheoutermostlayerwithCVLANbasedon“SVLAN+
DestinationMACaddress”.
Thewholesystemsupports400sessions,upto400CVLANscanbesupported.
4-120
SJ-20120409144109-002|2012-07-02(R1.0)ZTEProprietaryandCondential
