Two packages can be used on the ZedBoard; SO-16 and WSON. For the WSON package,
there is a heat sink slug under the package that is not connected to any signal on the PCB.

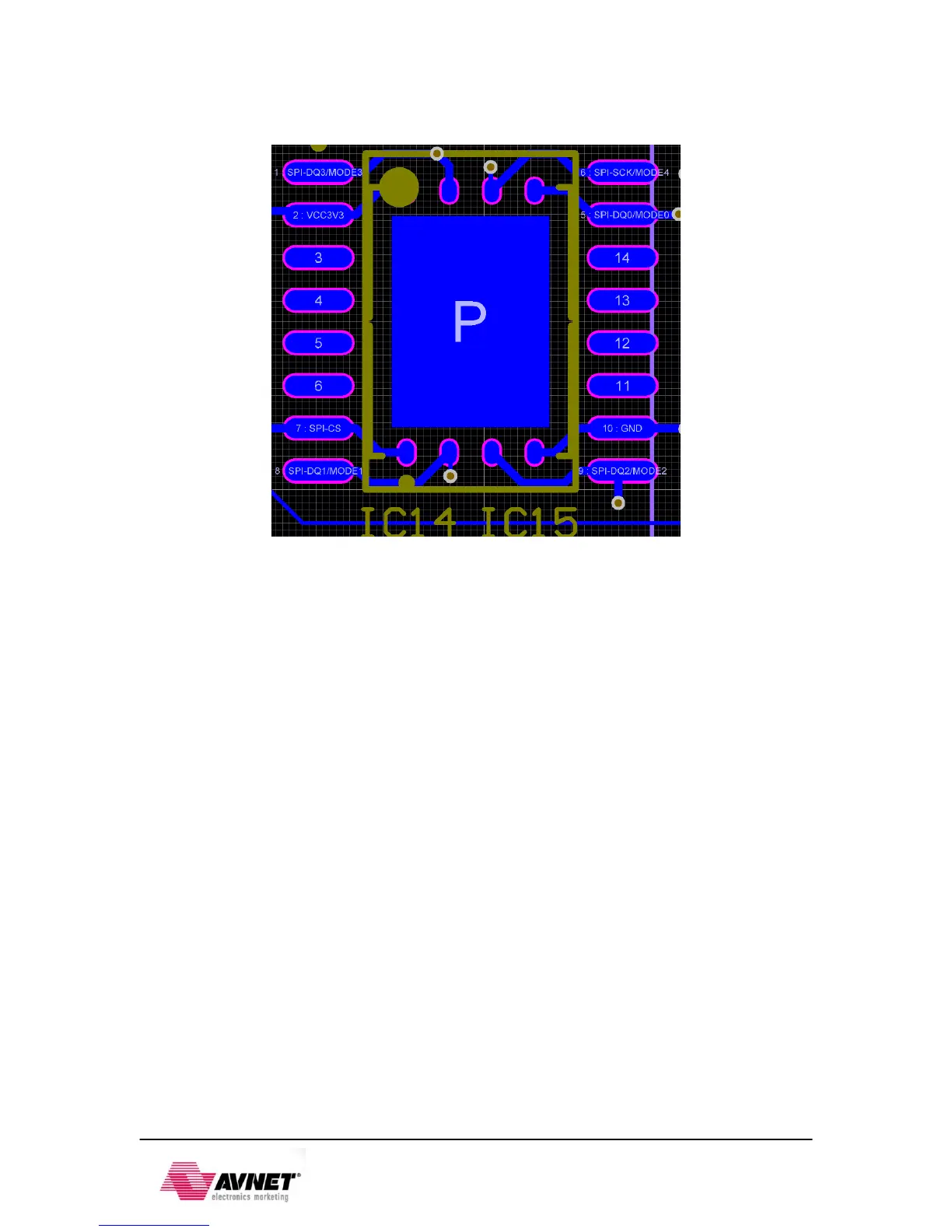

Figure 5 - Overlying Packages for SPI Flash
