Zynq ZedBoard User Manual

1-Aug-2012
17
2.4.2 VGA Connector
The ZedBoard also allows 12-bit color video output through a through-hole VGA connector, TE 4-
1734682-2. Each color is created from resistor-ladder from four PL pins.

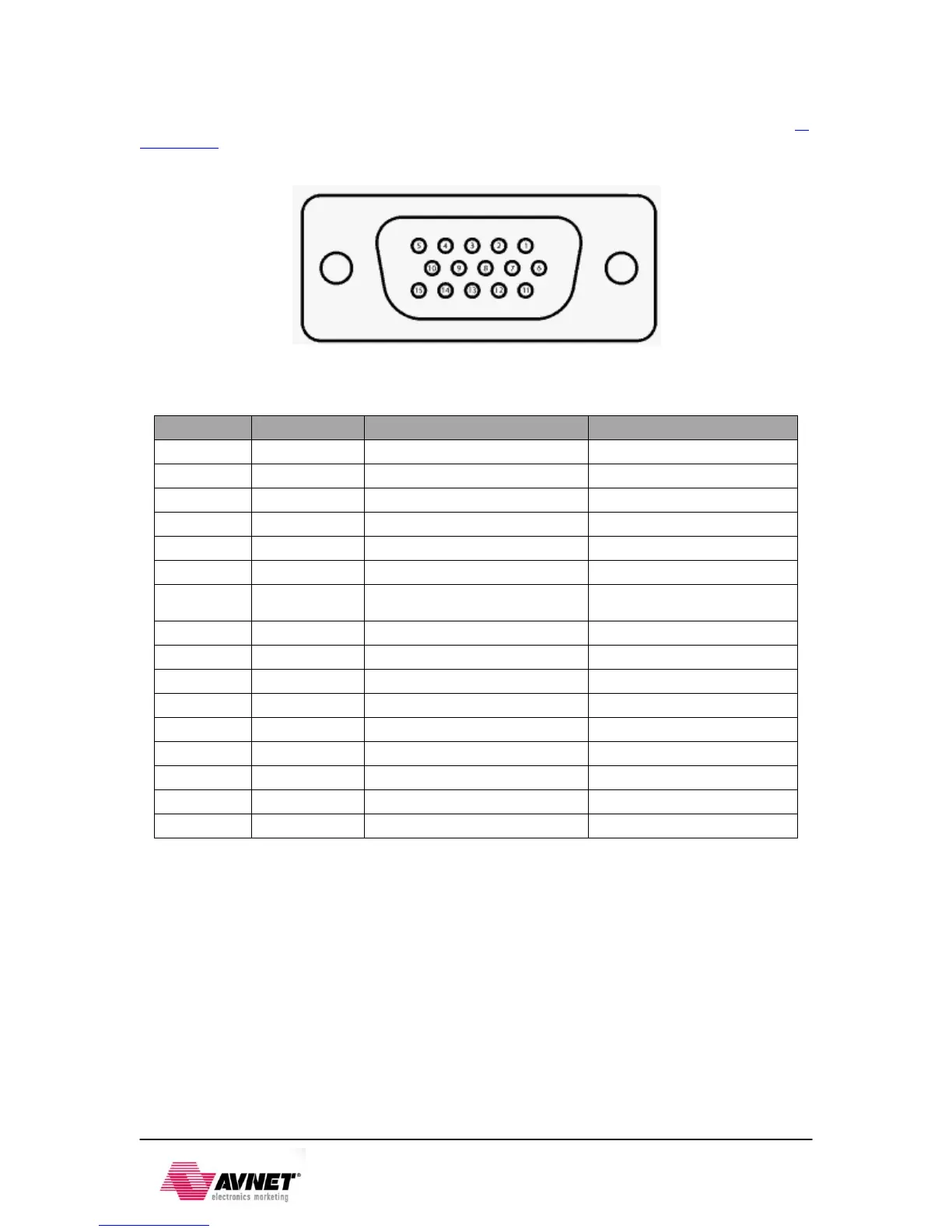

Figure 10 - DB15
Table 8 - VGA Connections
VGA Pin
Signal
Description
EPP Pin
1
RED
Red video
V20, U20, V19, V18
2
GREEN
Green video
AB22, AA22, AB21, AA21
3
BLUE
Blue video
Y21, Y20, AB20, AB19
4
ID2/RES
formerly Monitor ID bit 2
NC
5
GND
Ground (HSync)
NC
6
RED_RTN
Red return
NC
7
GREEN_RTN
Green return
NC
8
BLUE_RTN
Blue return
NC
9
KEY/PWR
formerly key
NC
10
GND
Ground (VSync)
NC
11
ID0/RES
formerly Monitor ID bit 0
NC
12
ID1/SDA
formerly Monitor ID bit 1
NC
13
HSync
Horizontal sync
AA19
14
VSync
Vertical sync
Y19
15
ID3/SCL
formerly Monitor ID bit 3
NC

Zynq ZedBoard Specifications

General

Processor	Dual-core ARM Cortex-A9
Clock Speed	667 MHz
System Memory	512 MB DDR3
Flash Memory	256 MB
Video Output	HDMI, VGA
Storage	SD Card Slot
FPGA	Xilinx Zynq-7000 XC7Z020
Ethernet	10/100/1000 Mbps Ethernet
USB	USB 2.0 (OTG and Host)
Audio	3.5mm jack, HDMI
Expansion Connectors	FMC, Pmod
Power	5V DC
