Zynq ZedBoard User Manual

1-Aug-2012
5
1.1 Zynq Bank Pin Assignments
The following figure shows the Zynq bank pin assignments on the ZedBoard followed by a table
that shows the detailed I/O connections. .

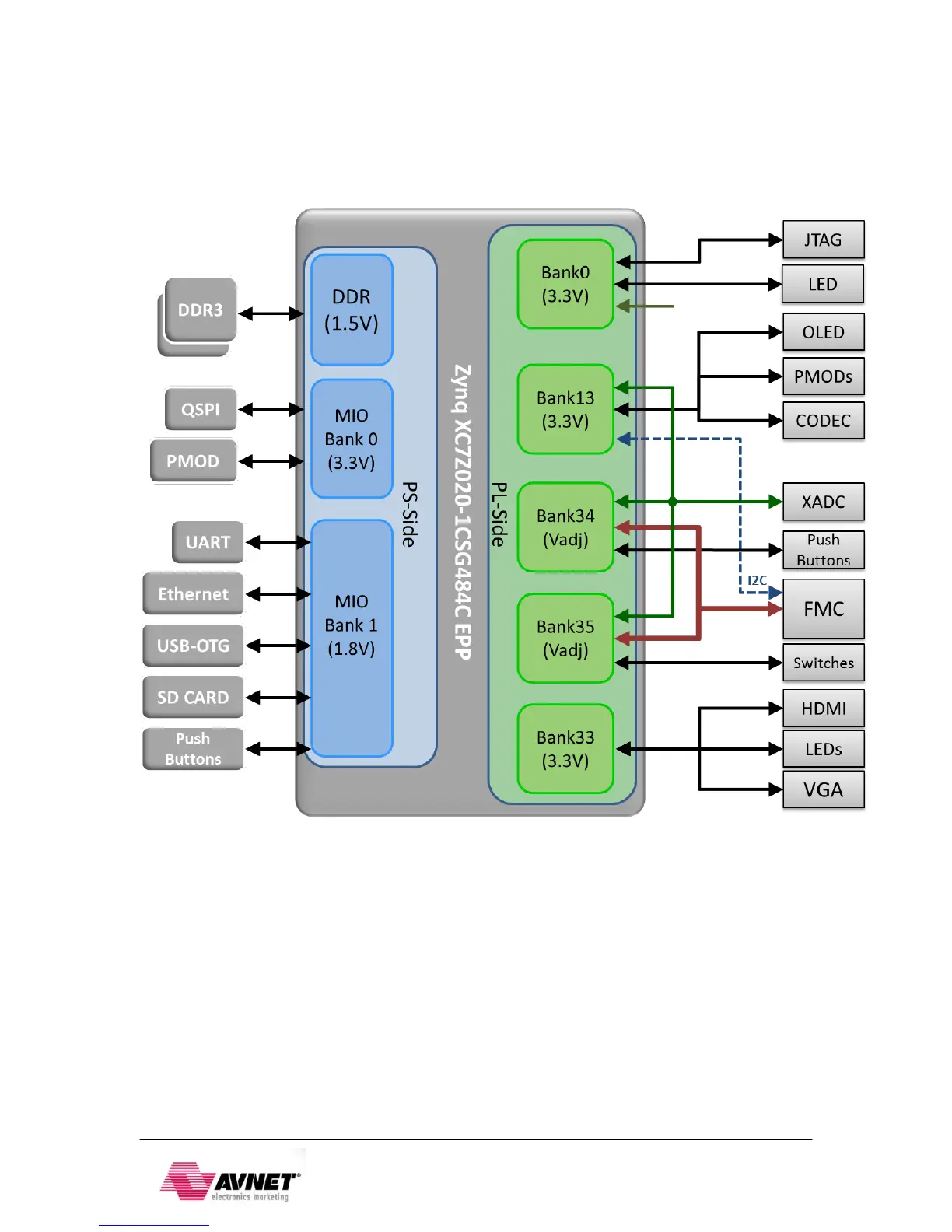

Figure 2 - Zynq Z7020 CSG484 Bank Assignments

Zynq ZedBoard Specifications

General

Processor	Dual-core ARM Cortex-A9
Clock Speed	667 MHz
System Memory	512 MB DDR3
Flash Memory	256 MB
Video Output	HDMI, VGA
Storage	SD Card Slot
FPGA	Xilinx Zynq-7000 XC7Z020
Ethernet	10/100/1000 Mbps Ethernet
USB	USB 2.0 (OTG and Host)
Audio	3.5mm jack, HDMI
Expansion Connectors	FMC, Pmod
Power	5V DC
