Chapter 2 Hardware
AX/DX/EX/PX Series User’s Guide
44
2.3.2 DX3300-T0, DX3301-T0, DX5301-B2/B3, DX5401-B0, EX3300-T0/
EX2210-T0, EX3301-T0, EX5300-B3, EX5301-B3 and EX5401-B0

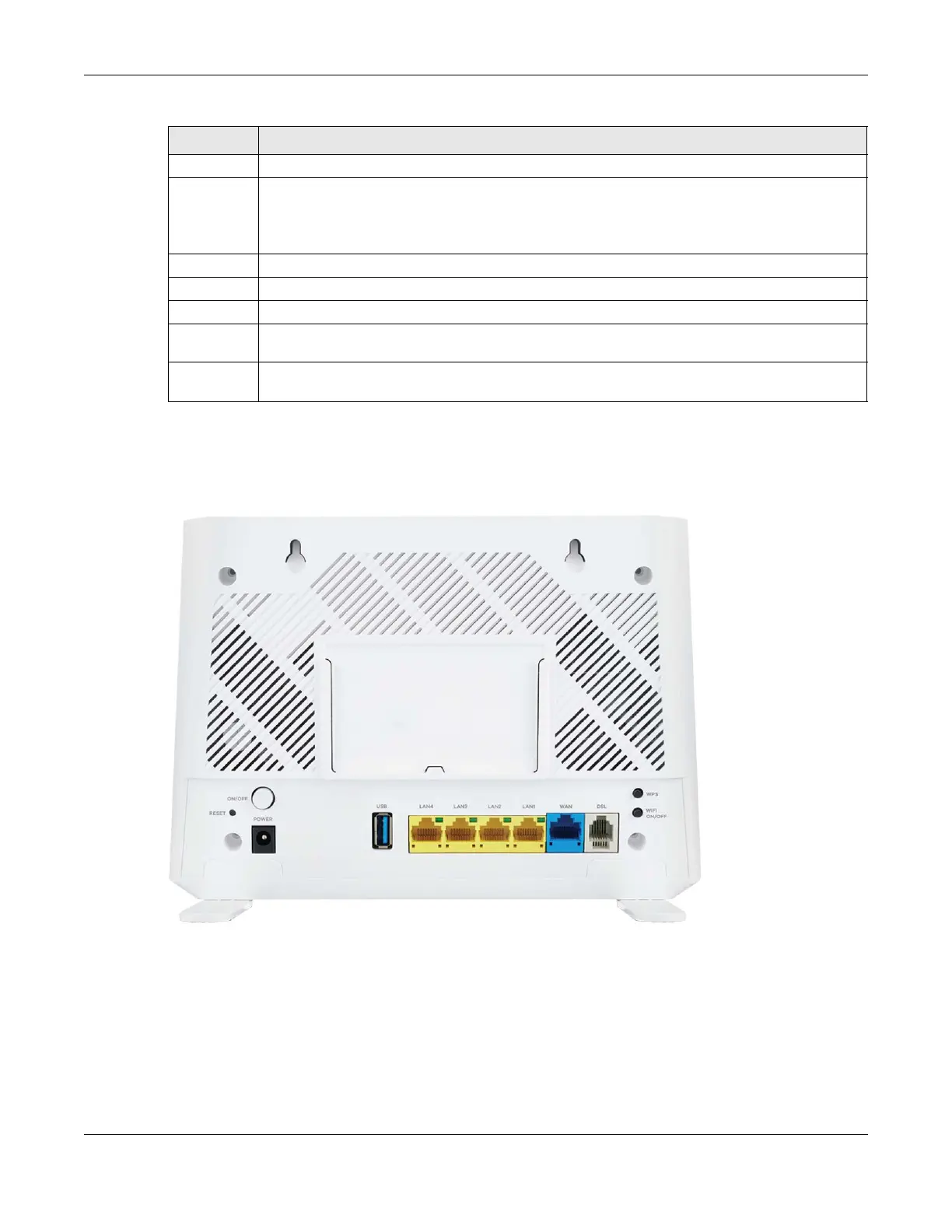

Figure 22 DX3300-T0
USB The USB port is used for cellular WAN backup, file-sharing, and media server.
LAN1 – LAN4
2.5G LAN
10G LAN
Connect computers or other Ethernet devices to Ethernet ports for Internet access.
PHONE1/2 Connect analog phones to the PHONE ports to make phone calls.
RESET Press the button to return the Zyxel Device to the factory defaults.
POWER Connect the power adapter and press the ON/OFF button to start the device.
WPS Press the WPS button for more than 1 second (EX5501-B0) / 5 seconds (AX7501-B0 / PX7501-B0) to
quickly set up a secure wireless connection between the device and a WPS-compatible client.
WLAN Press the WLAN button for more than 1 second (EX5501-B0) / 2 seconds (AX7501-B0 / PX7501-B0) to
enable the wireless function.
Table 11 Panel Ports and Buttons (continued)
LABEL DESCRIPTION
