Helios IP – Documentation Page 21
T001 – Call Setup Check
The test verifies an outgoing call setup. Extend the basic configuration with a SIP Proxy and IP phone as
shown in the figure below to verify the function.

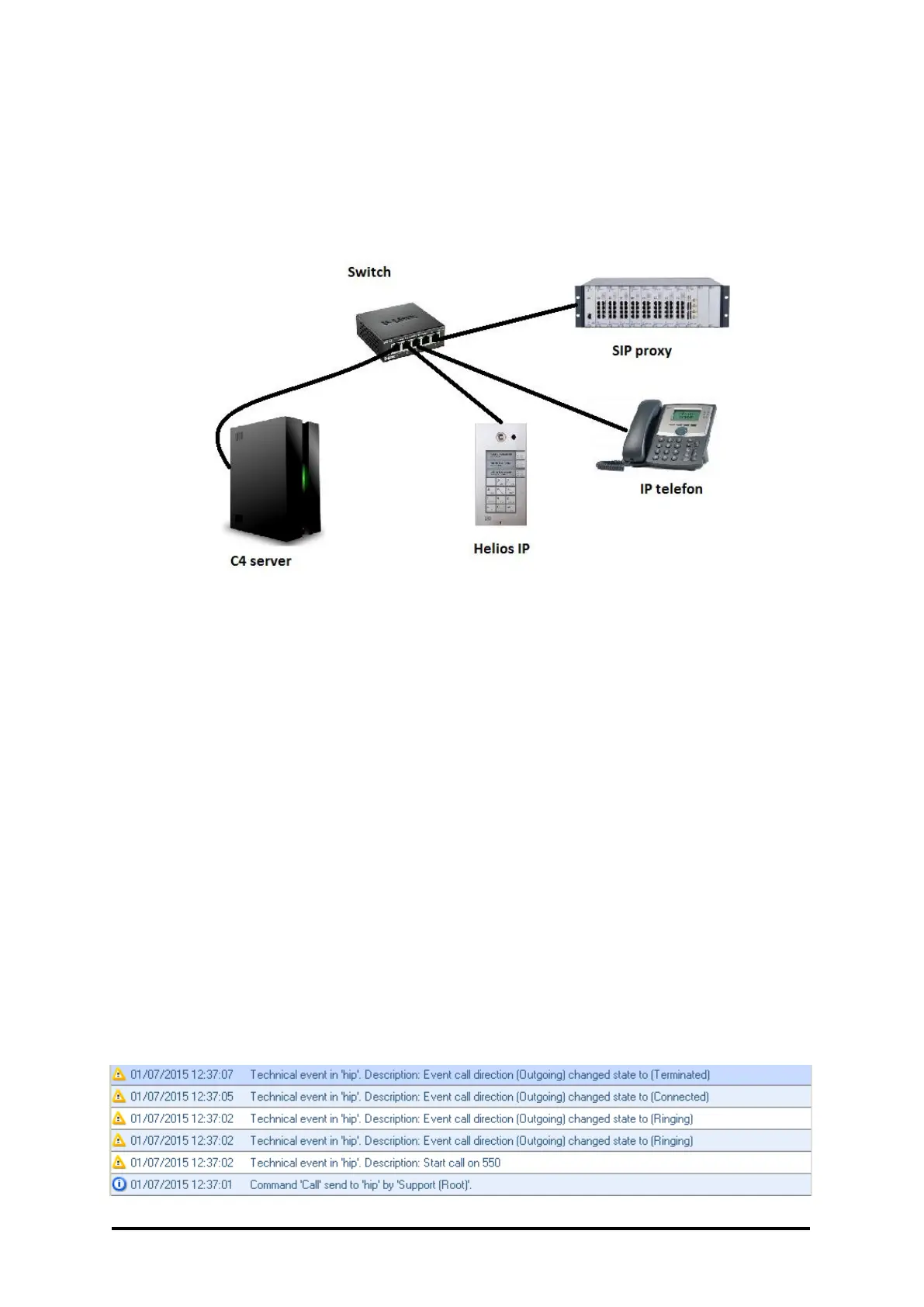

Figure 6: Basic Testing Diagram
Initial Conditions
Running C4 server,
Set SIP Proxy and IP phone,
Correctly configured Helios IP,
Helios IP added to C4 with a properly set driver and defined phone number.
Test Procedure
1) Start device state monitoring.
2) Start the Call command in the device context menu.
3) Receive the call and verify audibility via a SIP phone.
4) Hang up the call using the Close command in the context menu.
Expected Results
An outgoing call is set up from Helios IP to a defined phone number. The call is set up successfully with
mutual audibility. When the Close command is executed, the call is terminated. You can see the
following information on the Events tab:
