2N TELEKOMUNIKACE a.s., www.2n.cz 101/104
Door Opening by RFID Card
Specification
Activate the door contact switch by tapping/swiping the proper RFID card on
/through the reader.

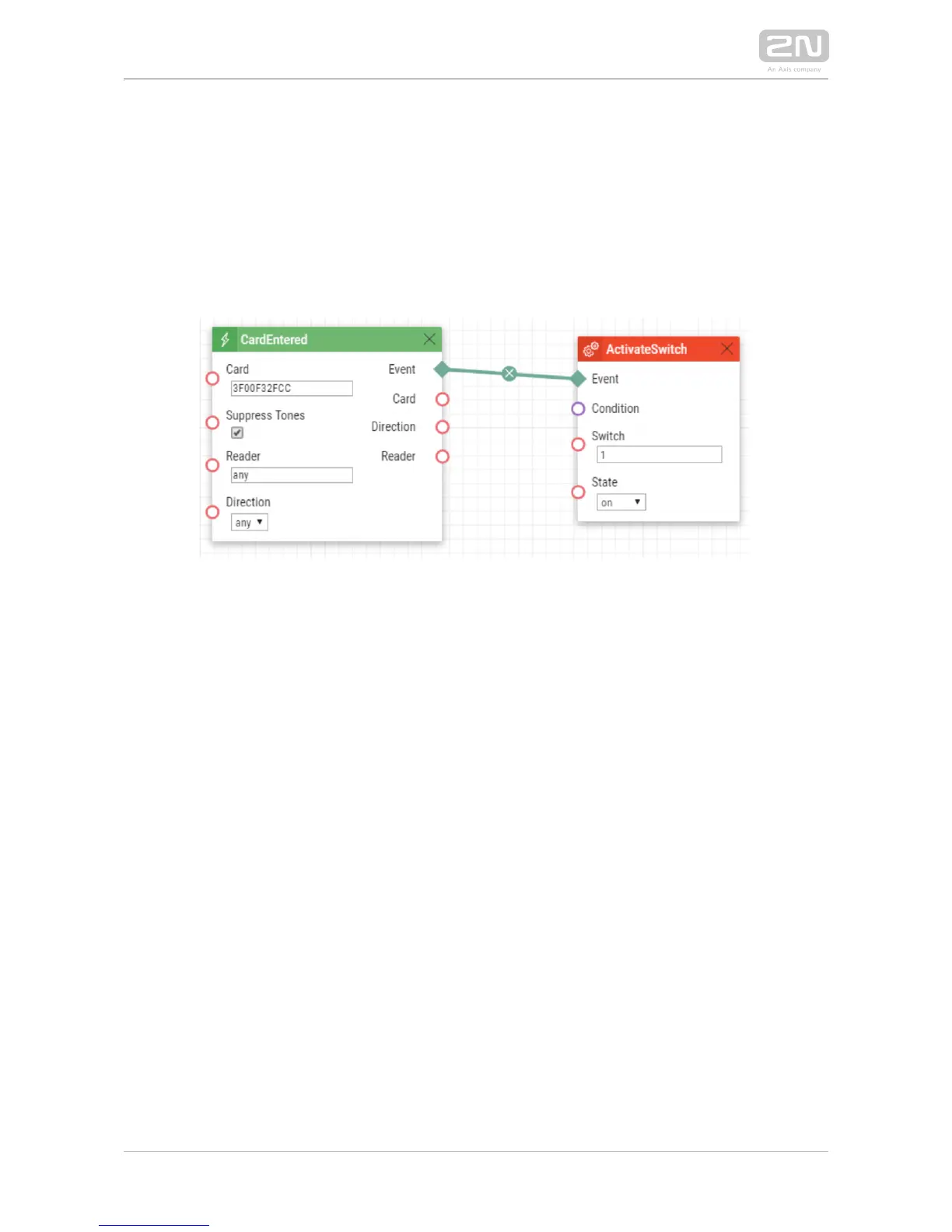

Block diagram
Entering an RFID card with the defined ID (1: Event.CardEntered) activates switch 1 (2:
Action.ActivateSwitch).
Intercom settings
1: Event.CardEntered: Card=0*0000
2: Action.ActivateSwitch: Switch=1; Event=1
