3-21

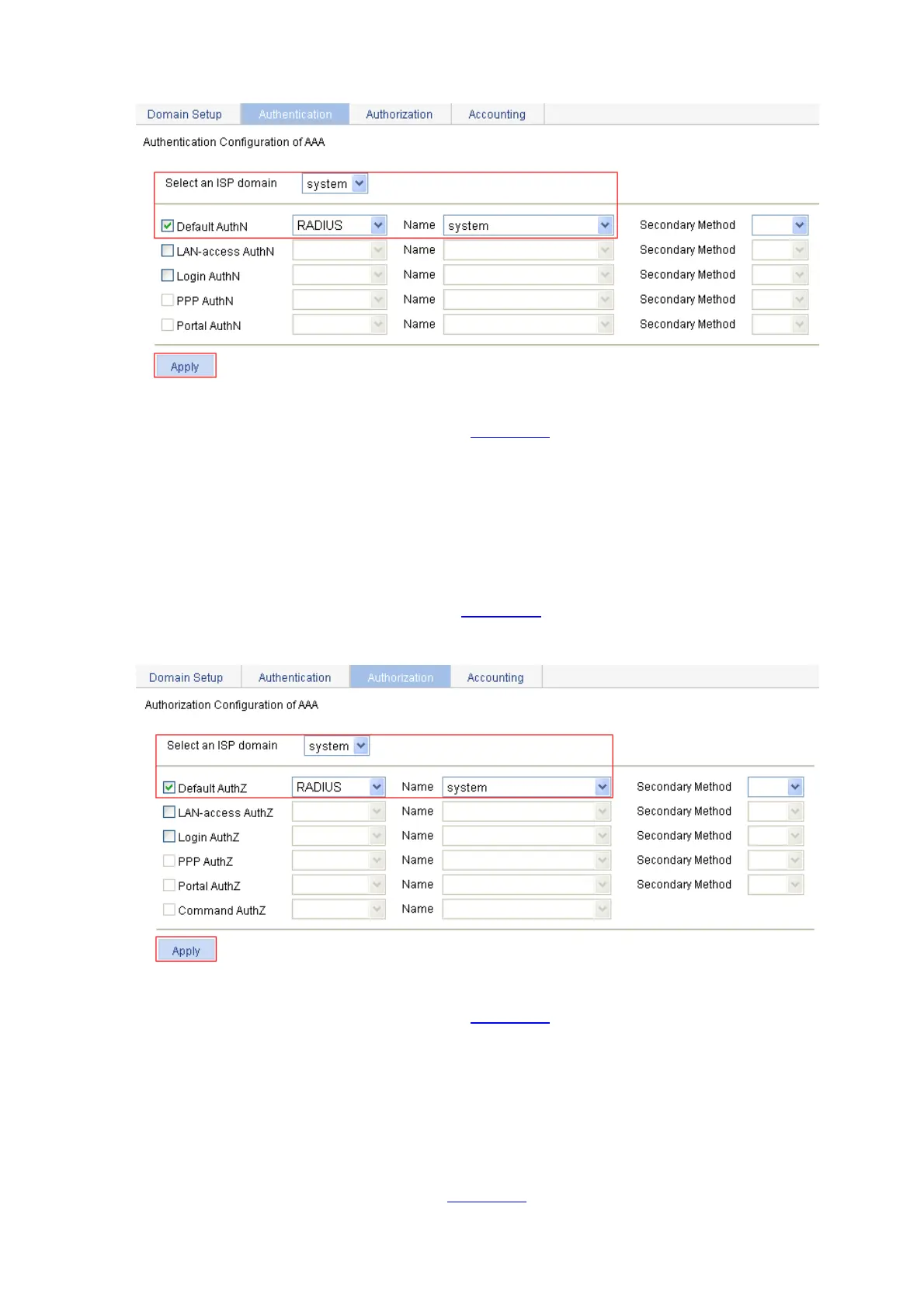

n Figure 3-38 Configure the AAA authentication method for the ISP domai
Perform the following configuration, as shown in Figure 3-38.
z Select the ISP domain name system.
z Select the Default AuthN checkbox and then select RADIUS as the authentication mode.
z Select system from the Name drop-down list to use it as the authentication scheme.
z Click Apply. A configuration progress dialog box appears.
z After the configuration process is complete, click Close.
# Configure the AAA authorization method for the ISP domain.
z Select the Authorization tab, as shown in Figure 3-39.
Figure 3-39 Configure the AAA authorization method for the ISP domain
Perform the following configuration, as shown in Figure 3-39.
z Select the domain name system.
z Select the Default AuthZ checkbox and then select RADIUS as the authorization mode.
z Select system from the Name drop-down list to use it as the authorization scheme.
z Click Apply. A configuration progress dialog box appears.
z After the configuration process is complete, click Close.
# Configure the AAA accounting method for the ISP domain, and enable Accounting Optional.
z Select the Accounting tab, as shown in Figure 3-40.
