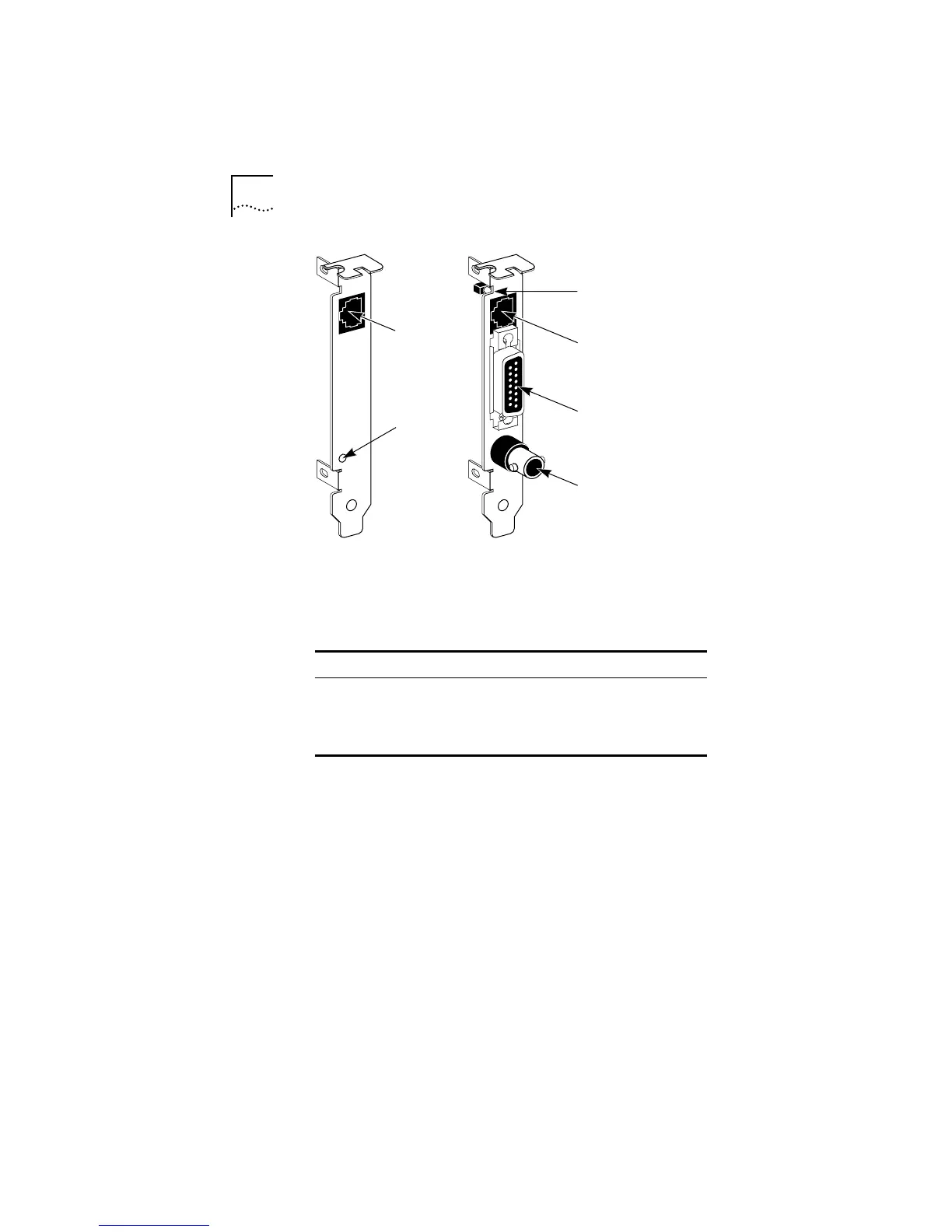

Figure 1-1 3C590 Adapter Backplates
The 3C590 PCI adapter can only be installed in computers
containing PCI bus master expansion slots. Be aware that not
all PCI slots in a PCI computer may be bus master slots. Check
the documentation provided with the PCI computer you are
using to determine which PCI slots are bus master slots.
10BASE-T AUI, coax,
10BASE-T
RJ-45
connector
BNC
connector
AUI
connector
LED
RJ-45
connector
LED
Table 1-1 3C590 PCI Adapter Cable and Connector Specifications
Adapter Type Cable Specification Connector Types
3C590-COMBO 10BASE-T
Thin coax (10BASE2)
Thick coax (10BASE5)
RJ-45
BNC
AUI
3C590-TPO 10BASE-T RJ-45
