Pannoramic DESK 1.18.1 User’s Guide 4 Software Description
Set the type of TMA block on this panel.
1. Select the shape of the TMA spots (Rectangle spots or Circle spots).
2. Enter the number of rows and columns in the Rows and Columns fields or select the
appropriate values with the arrows.
3. Enter the distance between two spots on the X and the Y axis in µm (in the Spot
distance X (µm) and Spot distance Y (µm) fields or select the appropriate values
with the arrows.
4. Enter the average diameter of the spots in the Diameter of spots (µm) field or
select the appropriate value with the arrows.
Grid tab
The Grid tab displays the previously set grid settings

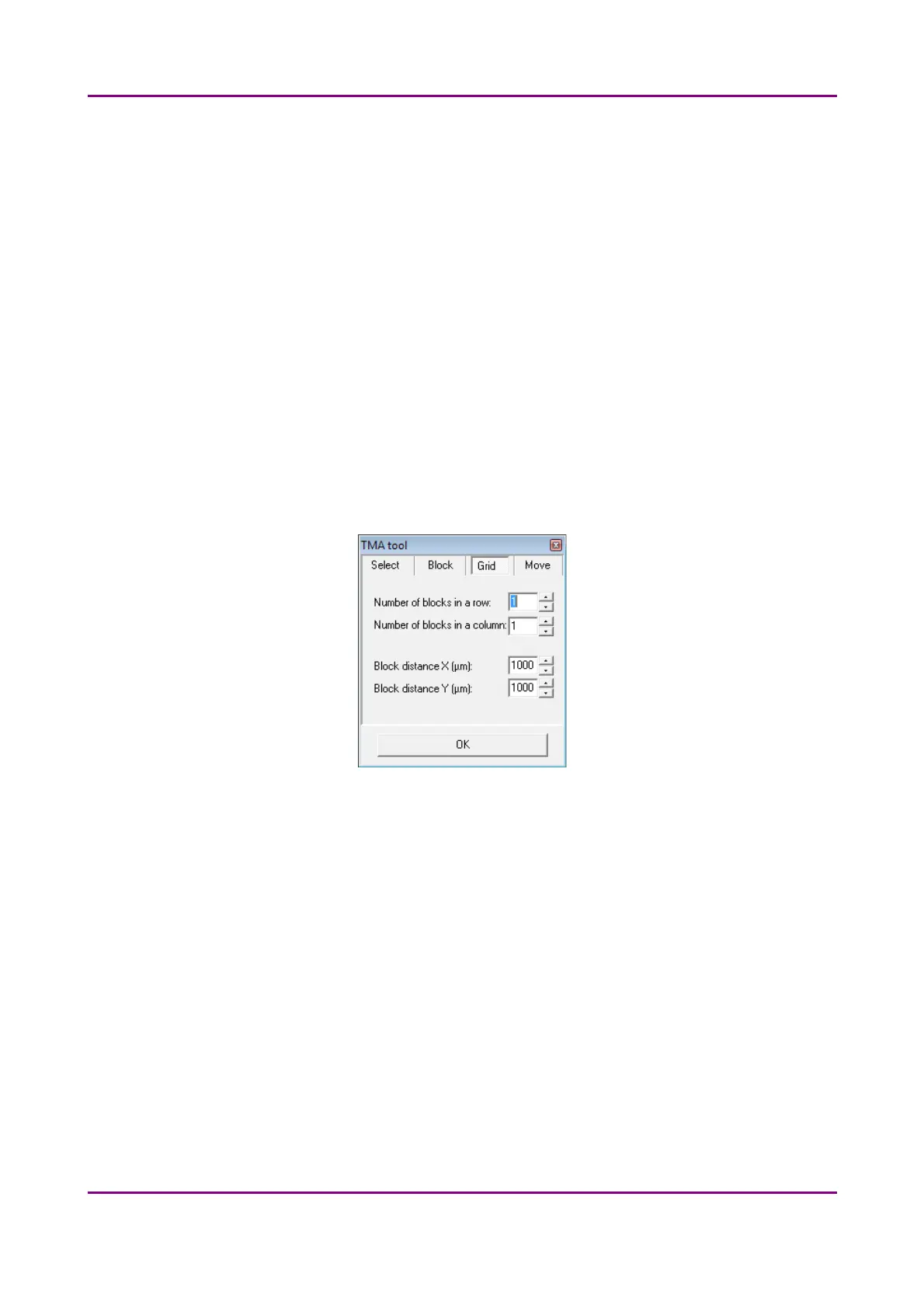

Figure 31 – TMA tool: Grid
