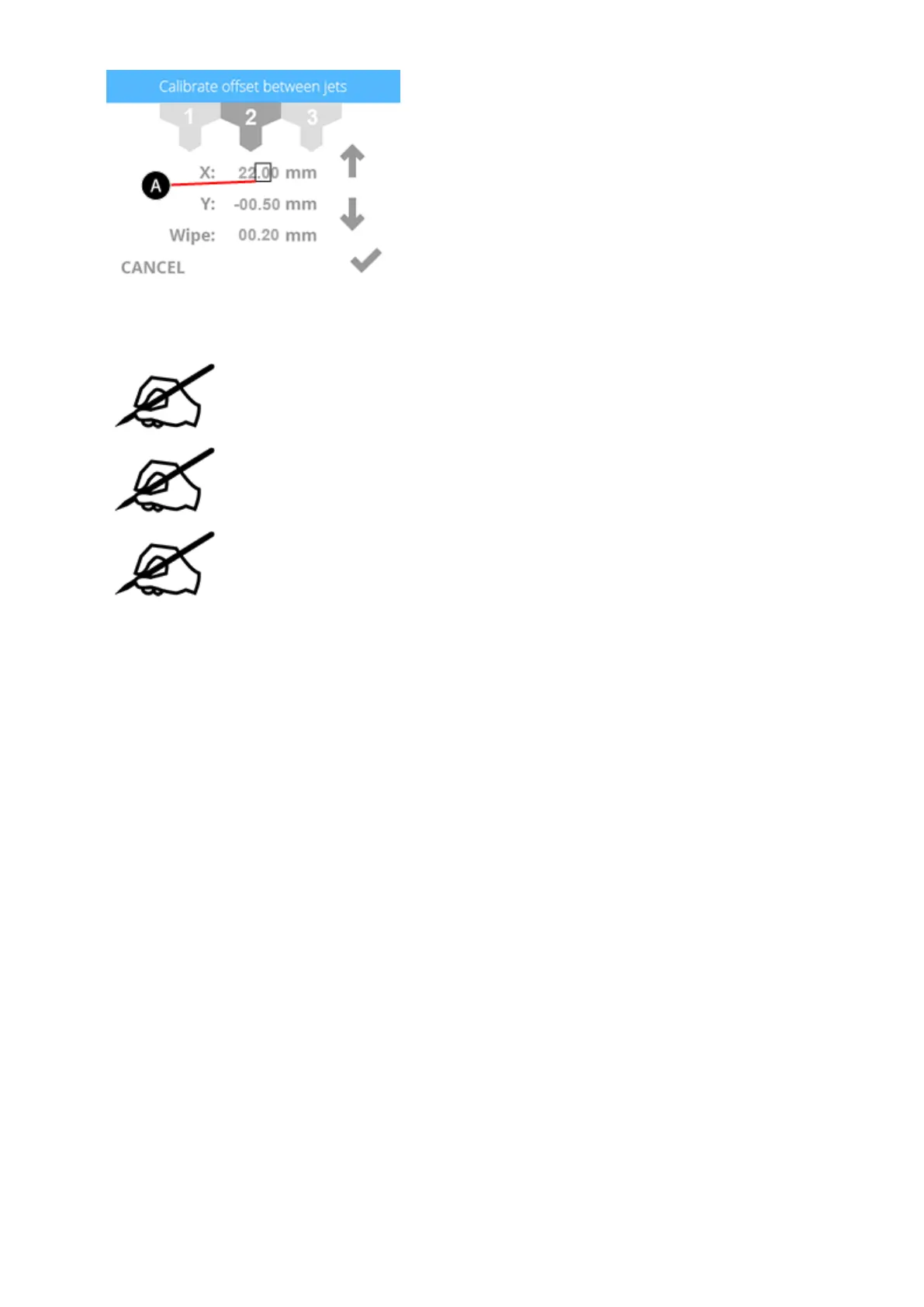

Press the up arrow three times to increase the value to 22.30 mm.10.
NOTE: Pressing the up arrow increases (+) the value. Pressing the down
arrow decreases (-) the value. Pressing the value repeatedly will scroll
through the digits left-to-right.
NOTE: You can also select the Y-axis settings and adjust those settings the
same way.
NOTE: If a value of 1 mm or larger are required, press the value until the first
digit to the left of the decimal is highlighted and press the up arrow
accordingly.
Once finished adjusting the settings, select the checkmark to continue.11.
Remove the original calibration print from the print pad. Reprint the calibration file12.
and verify that the arrows align properly on the X-axis and Y-axis.
