3D Systems ProJet 3510 HD - Page 41

3D Systems, Inc.
41

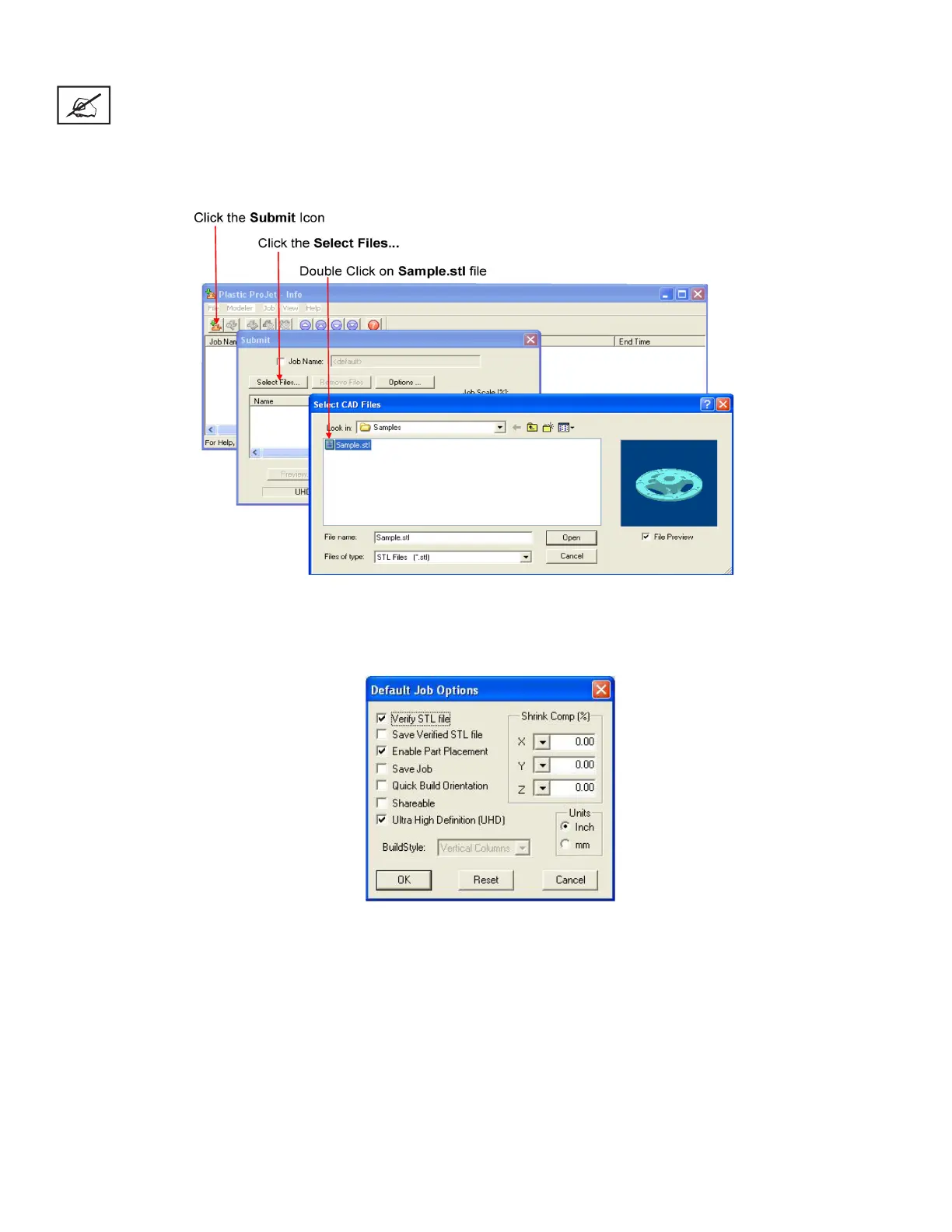

• Click Select Files on the Submit dialog box to add one or more parts to the build job.
NOTE: More than one STL le can be selected at a time.
• In Select CAD Files dialog box, hold down the Ctrl key and click on several STL les. Add parts in Preview window. After you have
added at least one STL le, use Preview window to view build jobs in three dimensions, and to add more STL les if desired. Sam-
ple STL les are in the \3-D Modeling Client\Samplesfolder.
• Browse les in Select CAD les window. When les are selected, le names appear in build job parts list of Submit dialog box.
• Click Options button on Submit dialog box. The Default Job Options dialog box appears.
