3M c960 User Manual

11
Installation
Notes: Both base stations must be set to the same channel number and different lane numbers.
Both base stations must be at least 12 feet apart.
Wiring the System

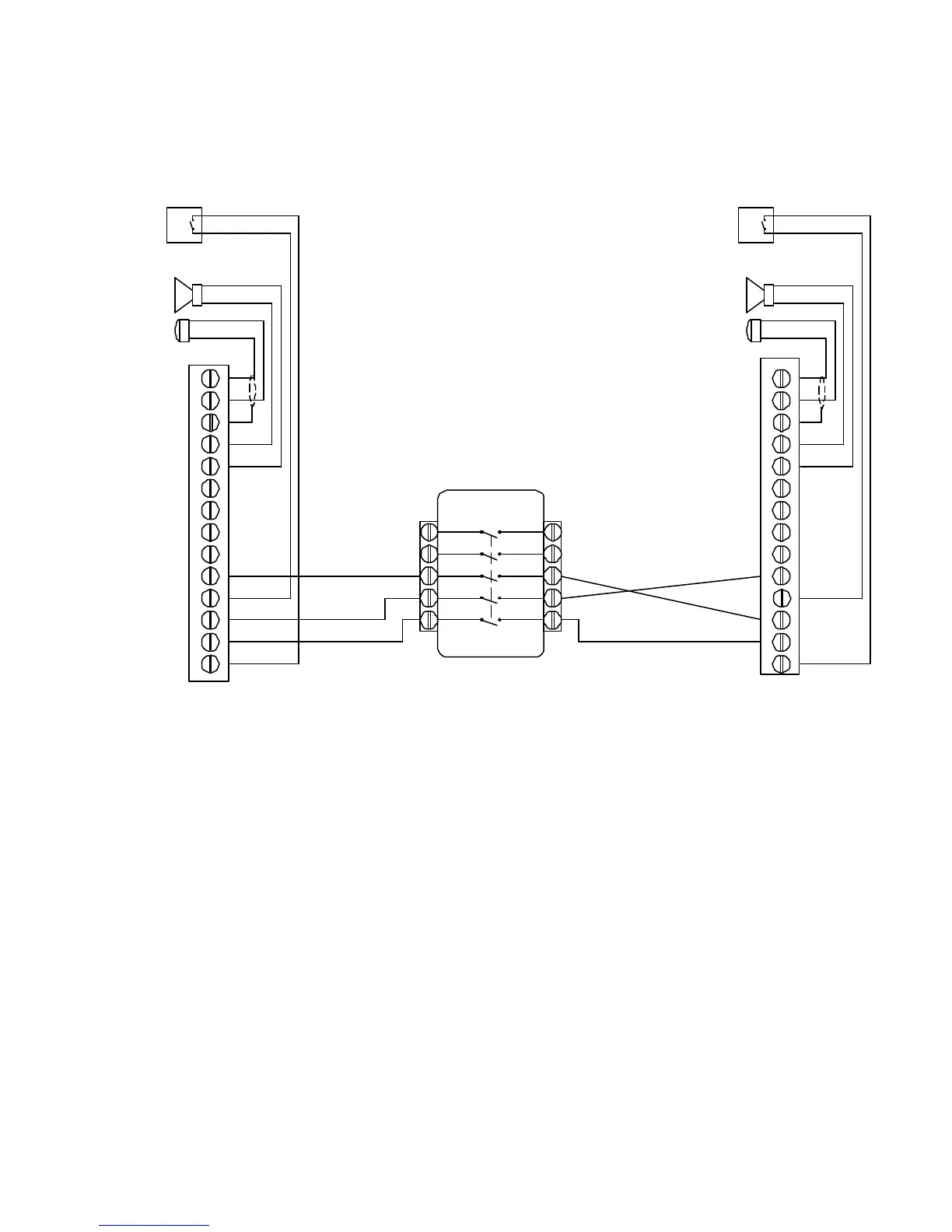

Figure 11. Cross-Lane Wiring Diagram
Programming the Headsets for Cross-Lane Operation
Follow the steps below to program the C960 headsets for Cross-Lane operation, and disable the Talk-Lock
function. It does not matter which base station is used to program the headsets. By pressing T1, the headset will
always communicate with the lane 1 base station; by pressing T2, the headset will always communicate with the
lane 2 base station.
1.
Disable the Talk Lock function
Talk-Lock is a toggle function that must be checked first to see if it is enabled or disabled. If the Talk LED
lights when the L button is pressed, Talk-Lock is enabled.
• To disable Talk-Lock, turn the headset OFF, press and hold the L button while pressing ON for 5
seconds. You will hear an acknowledging beep.
• Recheck the Talk-Lock function by pressing the L button. The Talk LED on the base station should not
light.
SHIELD
MENU SPKR
MON SPKR
COM
AUDIO IN *
ALT ALERT
VEH DET
ALERT OUT
12 VDC
COM
LANE 2 BASE STATION
LANE 1 BASE STATION
MIC MIC
MIC
SHIELD
MENU SPKR
MENU SPKR
MON SPKR
AUDIO IN
AUDIO OUT
ALT
ALERT
VEH DET
ALERT OUT
12 VDC
COM
COM
AUDIO OUT *
MIC
MENU SPKR
MIC
SPKR
LOOP
DET.
MIC
SPKR
LOOP
DET.
CROSS LANE CONTROL
AUDIO OUT
CROSS LANE CONTROL
ON
AUDIO IN
ALERT OUT
ALT ALERT
COMMONCOMMON
ALERT OUT
ALT ALERT
AUDIO OUT
AUDIO IN
OFF
* Note: Do not connect the AUDIO IN
and AUDIO OUT wires from the LANE 1
base station
