Model C960
Headset Preparation
3M
2000 May
9

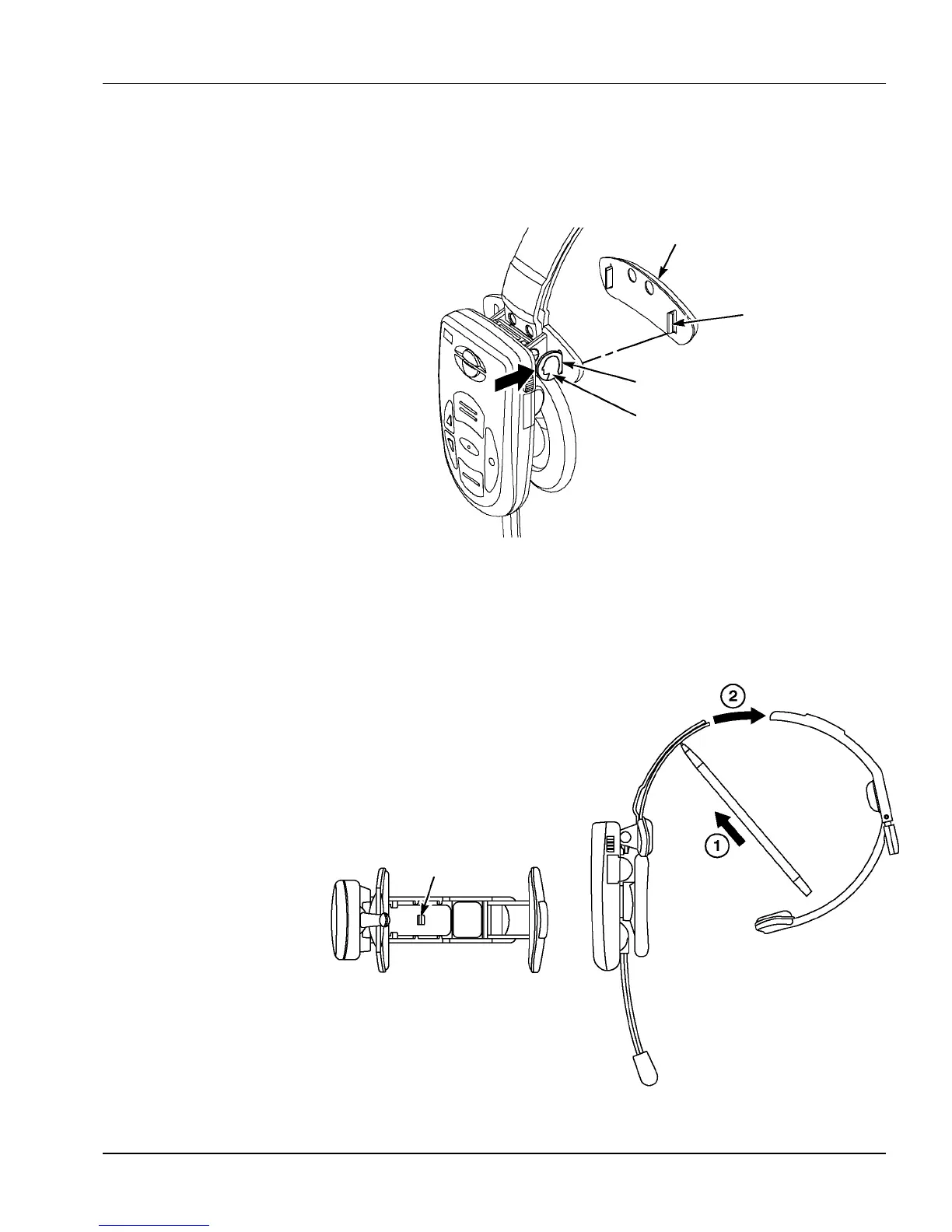

To install the cap clip:
1.
Remove the side headband pad (from above the ear pad). Insert a dime in
the slot on the headband pad housing and twist the dime to release the tab.
See Figure 9.
Headband Pad
Slot
Coin
Tab
Figure 9.
2.
Extend the headband to maximum size.
3.
Using a
ball point pen, release the headband latch and slide the 2–piece
headband apart. See Figure 10.
Headband
Latch
Figure 10.
Installing the Cap Clip
83
85
