Model C960 Controls and Indicators
3M 2000 May
The base station controls and indicators are shown below.

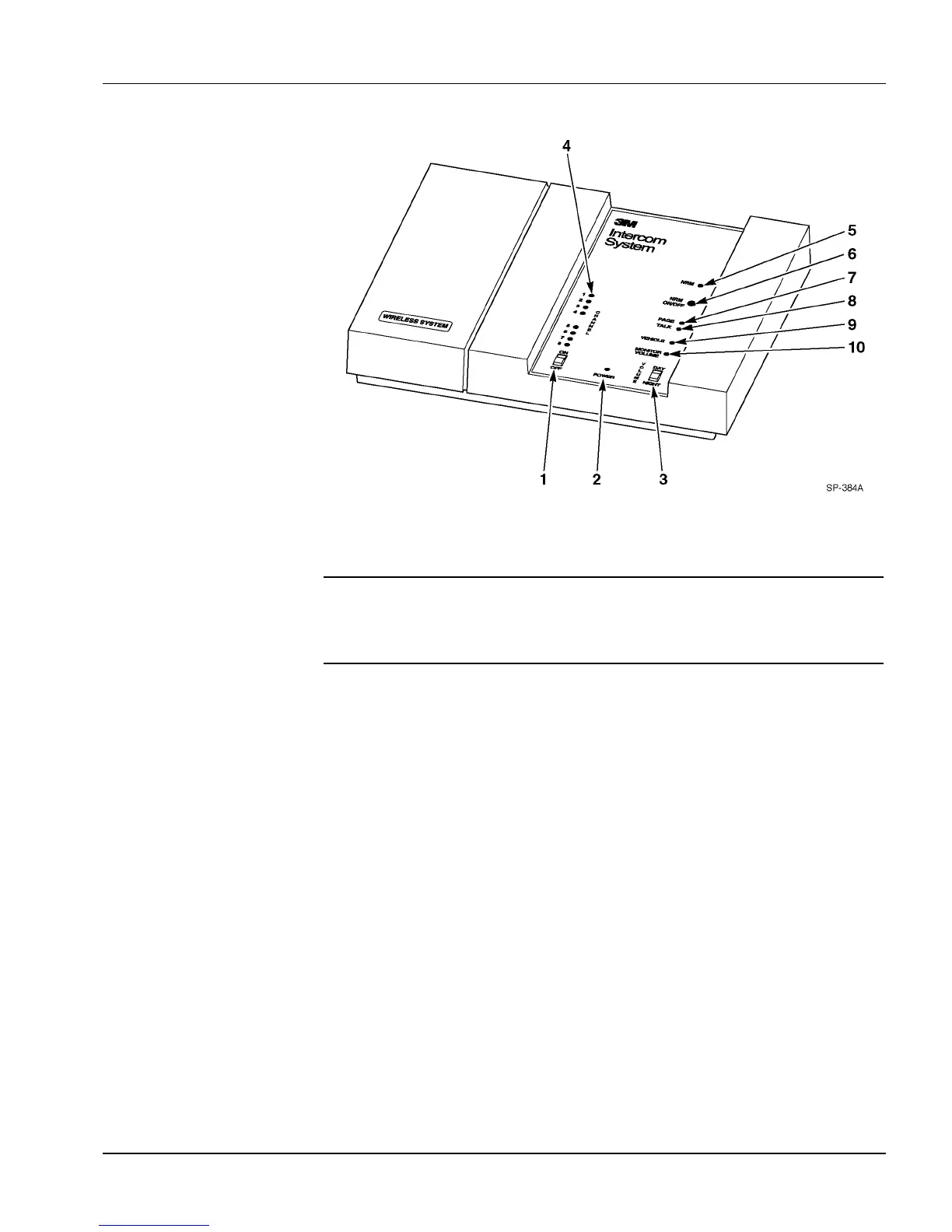

Figure 4. Base Station Controls and Indicators
The ON/OFF switch controls power to the base station.
This indicator lights when the ON/OFF switch is in the ON position.
ü Note
If for some reason the C960 headset system does not operate and the system
includes an optional wired backup system, turn off the C960 Base Station to
enable the backup system.
With the switch in the DAY position, the volume of the menu sign speaker is
increased for daytime operation. With the switch in the NIGHT position, the
volume of the menu sign speaker is decreased for nighttime operation. (Sound
travels further and more efficiently at night.)
These indicators light to show which of the 8 channels is selected.
This indicator blinks when the Noise Reduction Module is switched on.
This button turns the optional Noise Reduction Module on or off.
This indicator lights when headset Page communications occur.
This indicator lights when headset–to–menu sign “Talk” communications occur.
This indicator lights when a vehicle is detected at the menu sign.
This access hole allows for adjusting the volume of the optional monitor
speaker.
2 POWER
3 VOLUME
DAY/NIGHT
6 NRM On/Off
10 Monitor Volume
