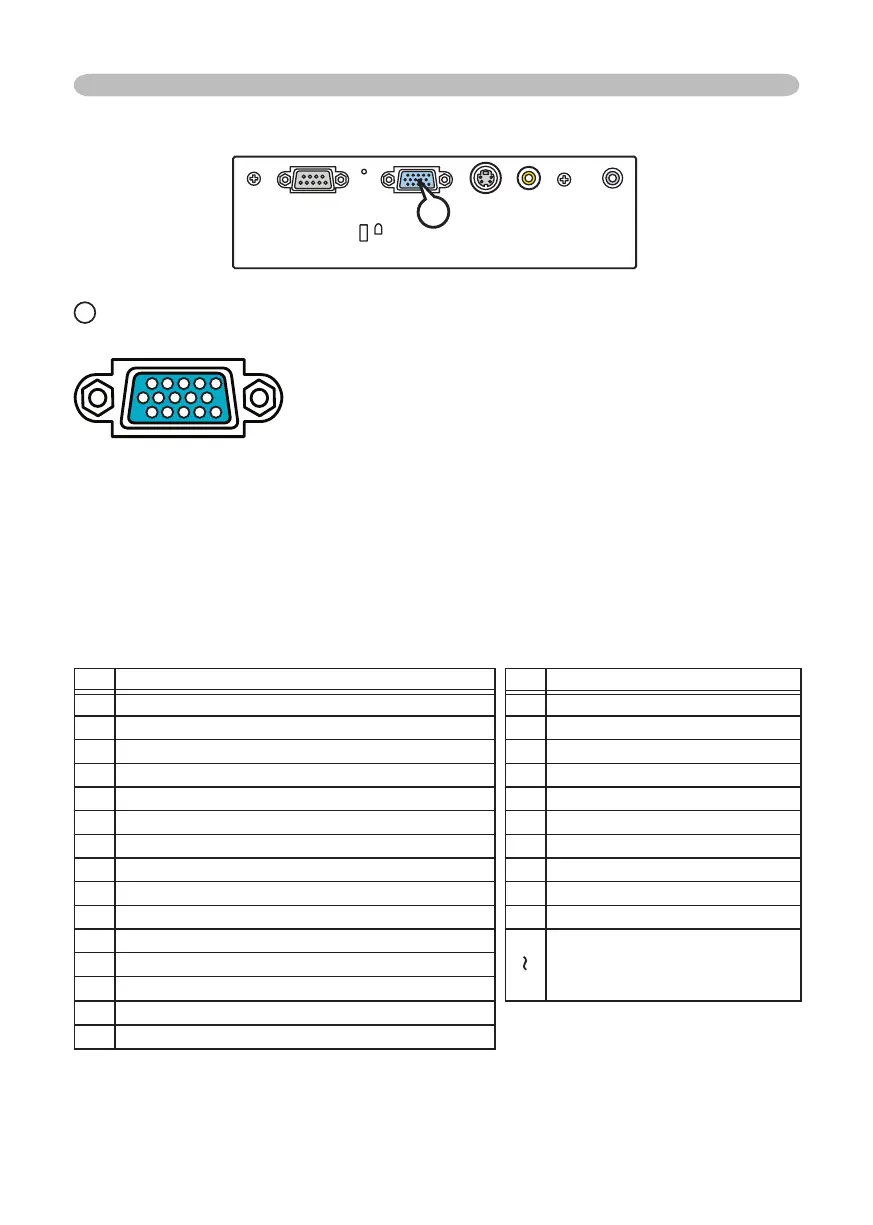

Connection to the ports
S-VIDEO
VIDEO
AUDIO
RGB
CONTROL
K
1
RGB
D-sub 15pin mini shrink jack
At RGB signal
• Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω terminated (positive)
• H/V. sync. Signal: TTL level (positive/negative)
• Composite sync. Signal: TTL level
At component video signal
• System: 525i (480i), 525p (480p), 625i (576i), 750p (720p), 1125i (1080i)
At RGB signal At component video signal
Pin Signal
1
Video Red
2 Video Green
3 Video Blue
4 (No connection)
5 Ground
6 Ground Red
7 Ground Green
8 Ground Blue
9 (No connection)
10 Ground
11 (No connection)
12
SDA (DDC data)
13
H. sync / Composite sync.
14
V. sync.
15
SCL (DDC clock)
1
Pin Signal
1
C
R
/P
R
2
Y
3
C
B
/P
B
4
(No connection)
5
Ground
6
C
R
/P
R
Ground
7
Y Ground
8
C
B
/P
B
Ground
9
(No connection)
10
Ground
11
15
(No connection)
* except for RGB OUT.
11 12 13 14 15
1 2 3 4 5
6 7 8 9 10
