3M S15 - Page 58

58
Technical (continued)

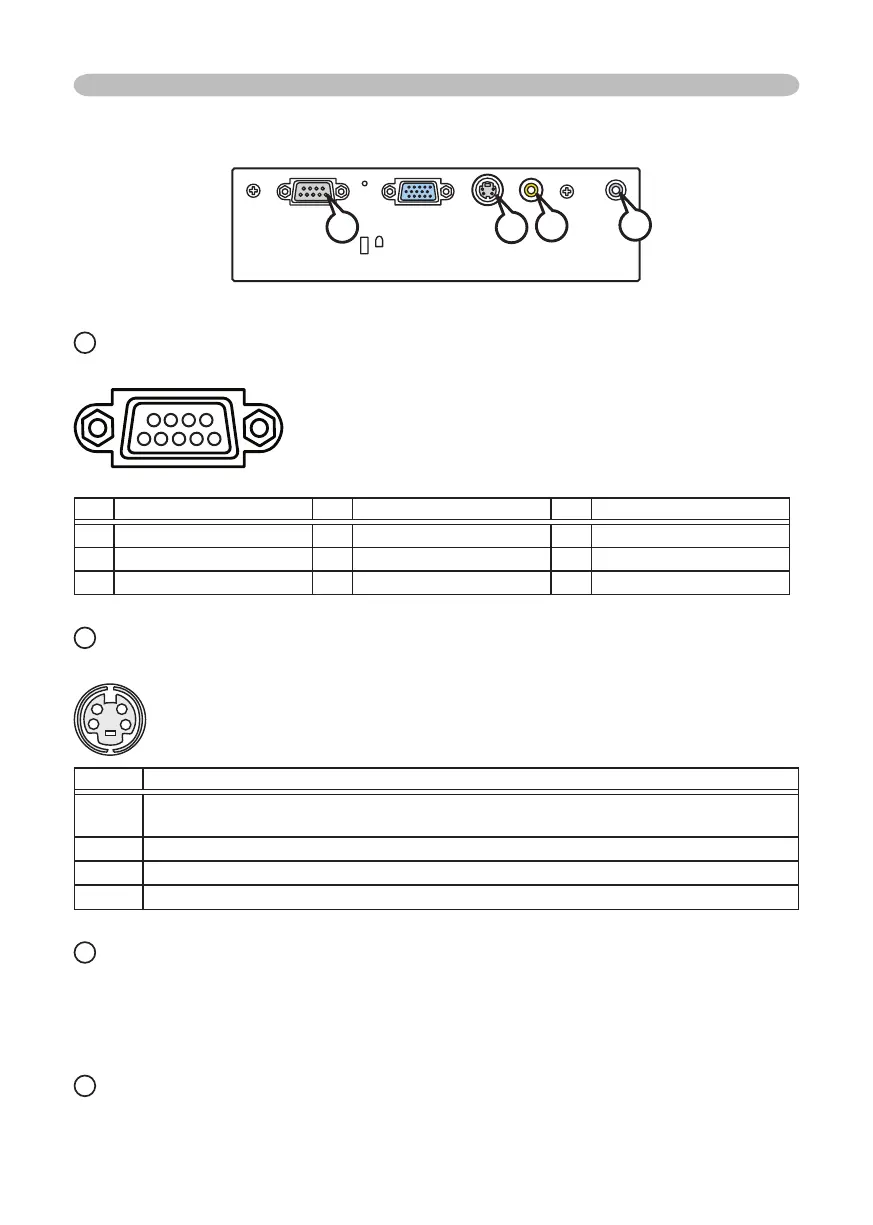

Connection to the ports (continued)
2
CONTROL
D-sub 9pin plug
• About the details of RS-232C communication, please refer to the following page.
Pin Signal Pin Signal Pin Signal
1 (No connection) 4 (No connection) 7 RTS
2 RD 5 Ground 8 CTS
3 TD 6 (No connection) 9 (No connection)
3
S-VIDEO
Mini DIN 4pin jack
4
3
2 1
Pin Signal
1
Color signal 0.286Vp-p (NTSC, burst), 75Ω terminator
Color signal 0.300Vp-p (PAL/SECAM, burst) 75Ω terminator
2
Brightness signal, 1.0Vp-p, 75Ω terminator
3
Ground
4
Ground
4
VIDEO
RCA jack
• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL60
• 1.0±0.1Vp-p, 75Ω terminator
5
AUDIO
Ø3.5 stereo mini jack
• 200 mV rms, more than 47k Ω or more
S-VIDEO
VIDEO
AUDIO
RGB
CONTROL
K
3
4
5
2
9 8 7 6
5 4 3 2 1
© 3M 2005. 3M™ Digital Projector S15/X15
