6. Electric wiring
6-1 Wiring circuit
6-2 External connection
Warning
・When wiring, Please turn off the power.
・Please installing in accordance with local recommended.When using Flame-proof equipment
at hazardous areas, always wiring in accordance with 『ANNEX1 Instructions about Flame-
proof type Equipment』.
・Be sure to close the unused connection port with a blind plug.

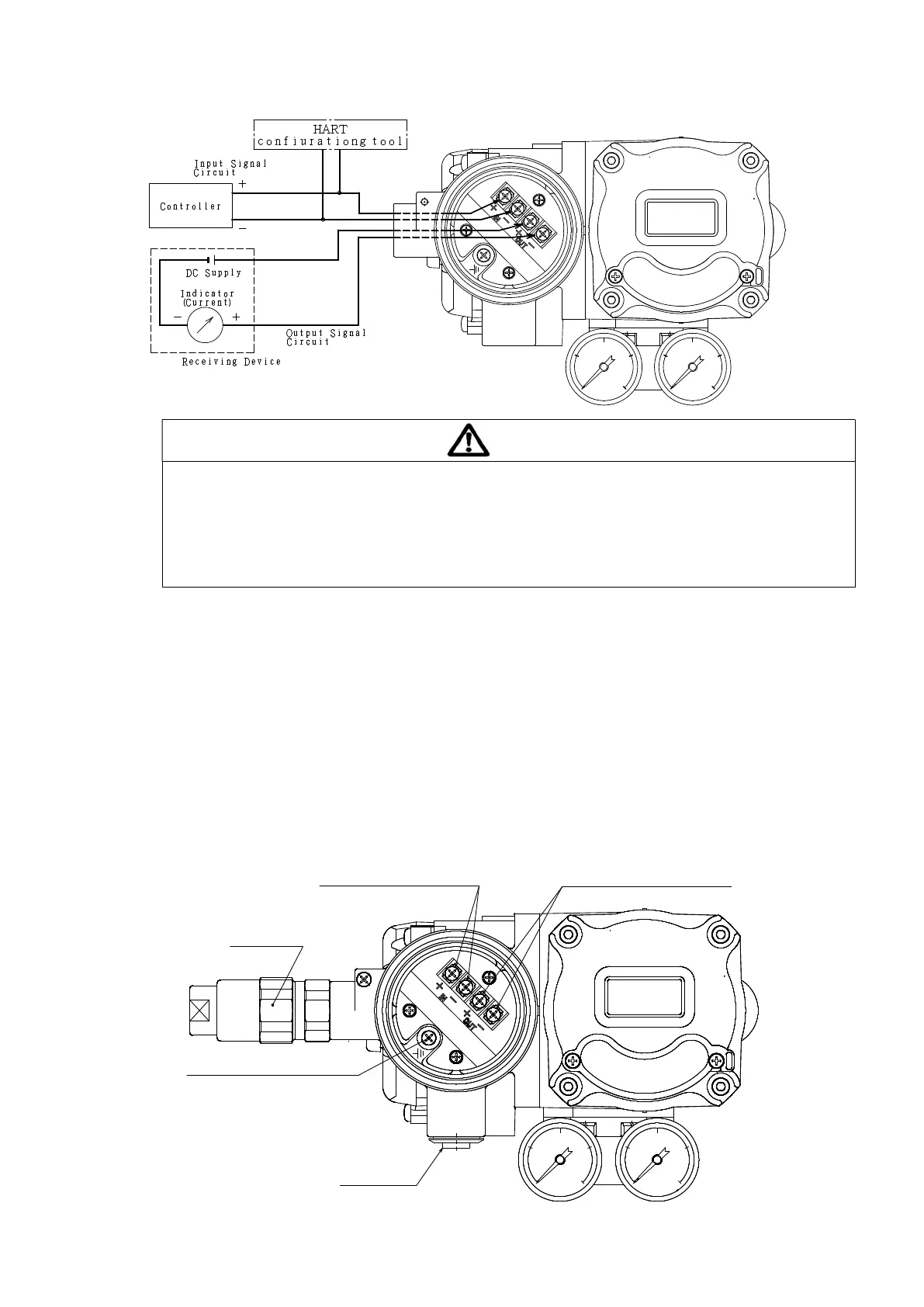

1) Remove Terminal Box Cover and connect wires to the terminal block with insulated terminals
Connect.
Input signal (+) and (-) wires to “In” (+) and (-) respectively.
Connect Output signal (+) and (-) wires to “OUT” (+) and (-) respectively.
2) Choose one of the two connection ports to ensure the most suitable arrangement for the wires.
3) Impact on Positioner and use of excessive force during wiring works may result in deterioration
in performance.
4) Apply a sealant to the threads of the connection port for waterproofing.
5) Please be sure to connect Earthing terminal with a cable lug surely.
6) The earth connection shall be mounted so that it is secured against loosening and twisting.
Ｇ
Ｏｕｔｐｕｔ Ｓｉｇｎａｌ Ｔｅｒｍｉｎａｌ（Ｍ４）
Ｉｎｐｕｔ Ｓｉｇｎａｌ Ｔｅｒｍｉｎａｌ（Ｍ４）
Ｃａｂｌｅ Ｇｌａｎｄ
（Ｏｐｔｉｏｎ）
Ｂ ｌｉ ｎ ｄ Ｐｌ ｕ ｇ
Ｅａ ｒｔ ｈｉｎ ｇ Ｔ ｅ ｒ ｍｉｎ ａ ｌ （Ｍ ４）
