3S MP 100 - LCD Display Description

10

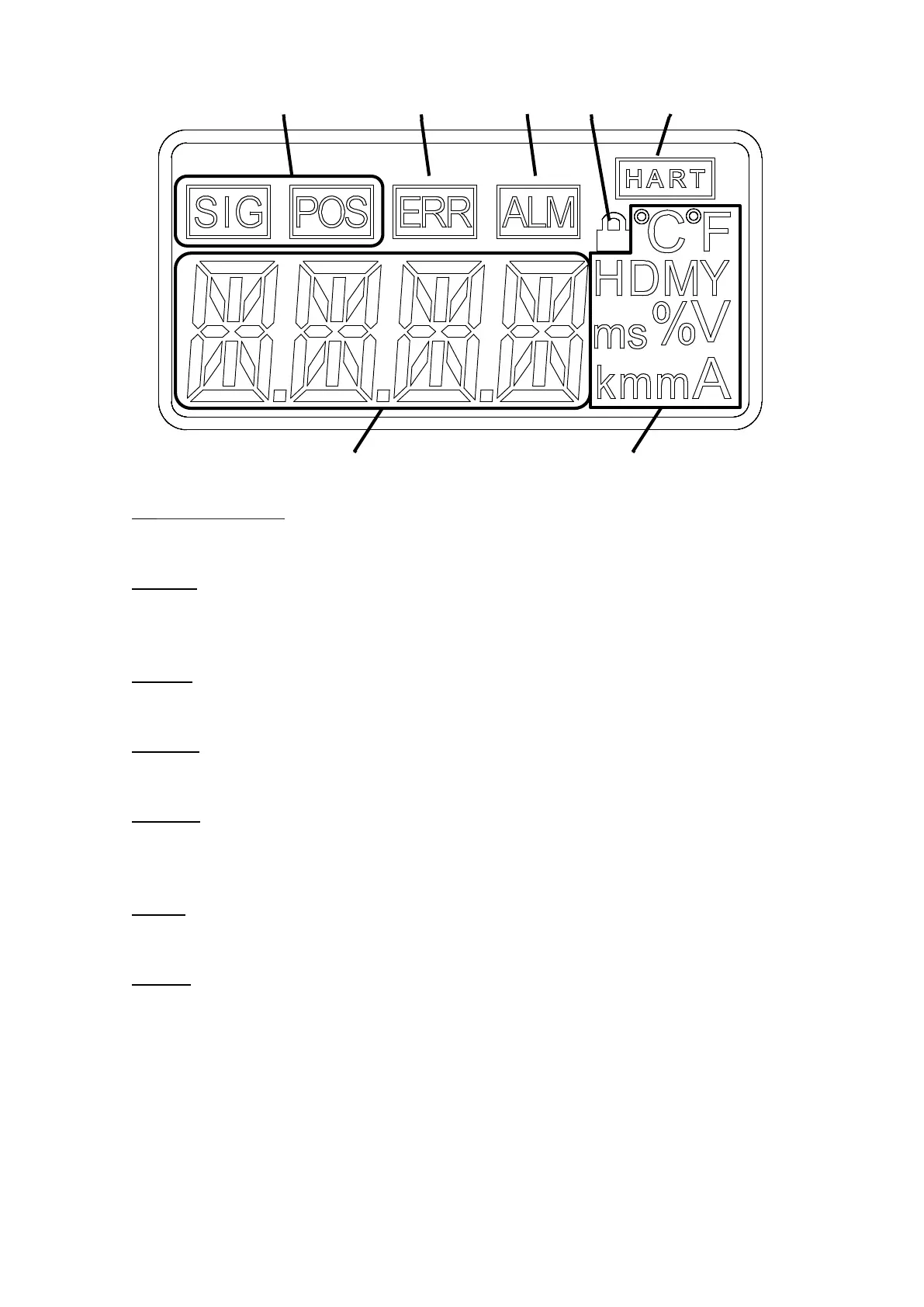

7-1 LCD-Display description
① Numerical display
Display the numeric portion of setting parameters, input signal, or position value.
② Mode
Display the mode of the value shown, SIG means ‘Displaying input signal value’ and POS means
‘Displaying position signal value’
③ Error
Blinking when the device is occurred to controlled error
④ Alarm
Blinking when the value exceed alarm set limit
⑤ HART
Displayed when HART communication function works
※HART communication function is option.
⑥ Unit
Display the unit corresponding to the value
⑦ Lock
Displayed during the setting function is locked
①
②
③
④ ⑤
⑥
⑦
