4-3 Installing to Rotary-actuator (Namur clumping type)

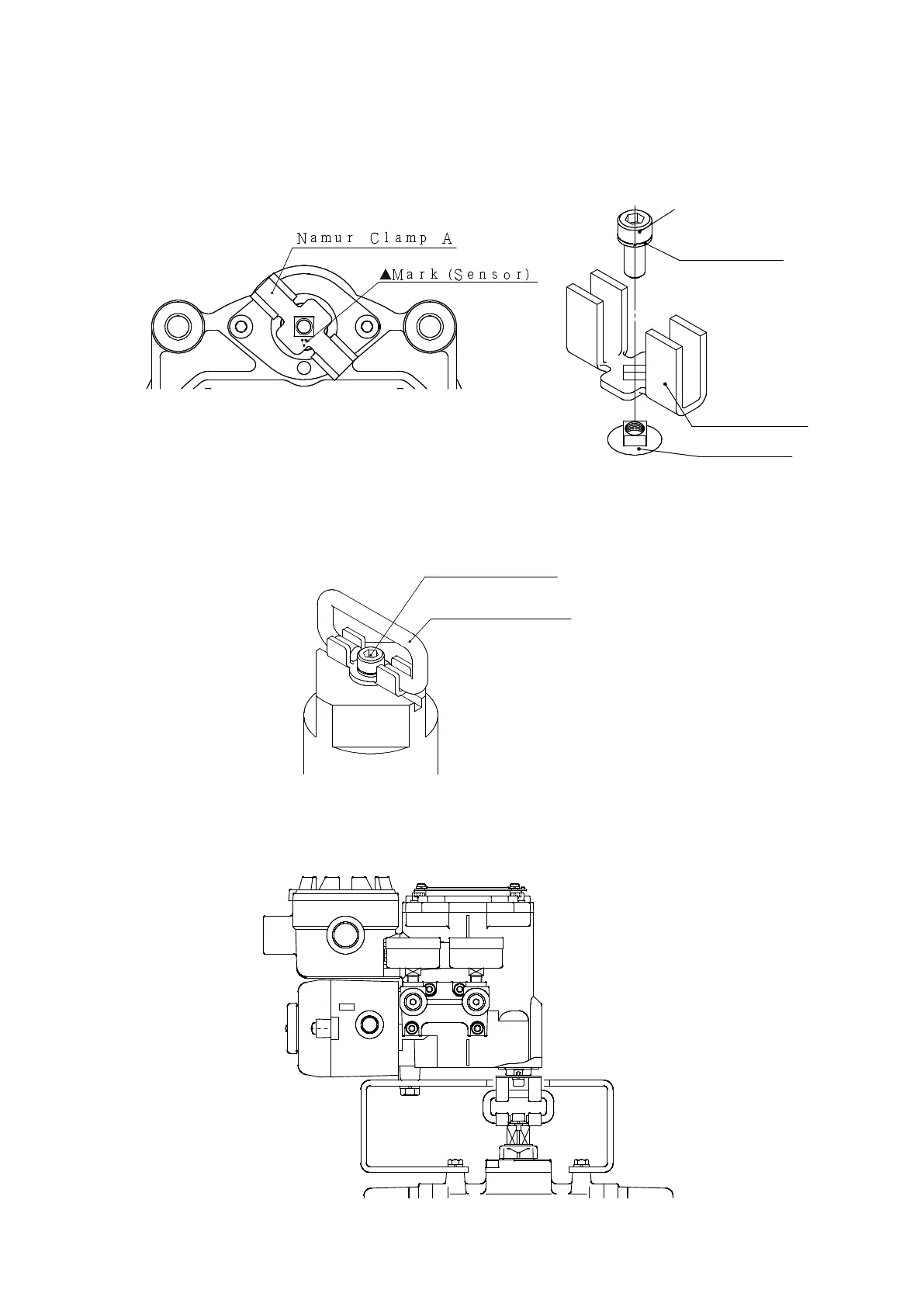

1) Assemble Namur clamp A (Positioner side)
Insert Namur clamp A into boss and fasten screw (Keep the marked range). As shown in the figure
below, the position where the ▲ mark and the convex part is match is mounted so that the 50%
opening.
2) Assemble Namur clamp B (Actuator side)
Insert Namur clamp B into Namur slot and fasten with hexagon head screws
3) Install positioner
Install positioner and fix. Keep axis of Namur clamp A, B.
※Non-alignment of the axis of A and B can lead to linearity errors.
Ｎａｍｕｒ Ｃｌａｍｐ Ａ
Ｓｅｎｓｏｒ Ｓｈａｆｔ
Ｓｐｒｉｎｇ Ｗａｓｈｅｒ
Ｈｅｘａｇｏｎ ｓｏｃｋｅｔ
Ｈｅａｄ ｃａｐ ｓｃｒｅｗ
ＳＵＰ
