3S MP 100 - Pneumatic Piping

6
5. Pneumatic Piping
Use supply air that has been dried and filtered by 5
μ
m or less filter to protect against moisture or
oil or dust.
※(Single Acting) If input signal is increased, output pressure increase too.
(Configuration is required to conform to the application signal increase to decrease output pressure)

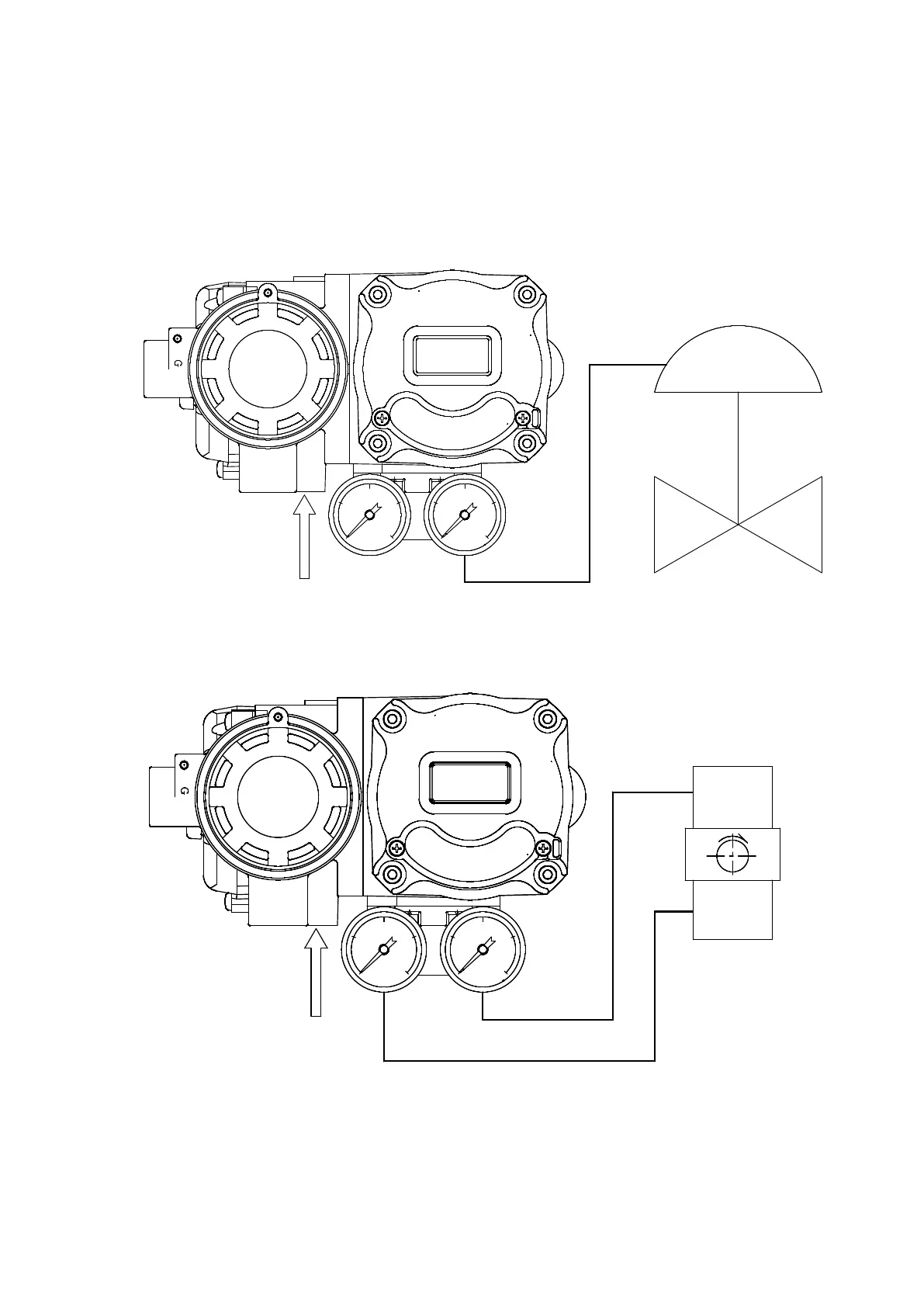

【Single acting】
【Double acting】
OUTPUT1
SUPPLY
Ｓｉｎｇｌｅ Ａｃｔｉｎｇ Ａｃｔｕａｔｏｒ
（Ｄｉａｆｒａｍ）
OUTPUT1
OUTPUT2
SUPPLY
Ｄｏｕｂｌｅ Ａｃｔｉｎｇ Ａｃｔｕａｔｏｒ
（Ｃｙｌｉｎｄｅｒ）
