User’s Manual
WHG Controller / HSG Gateway ENGLISH

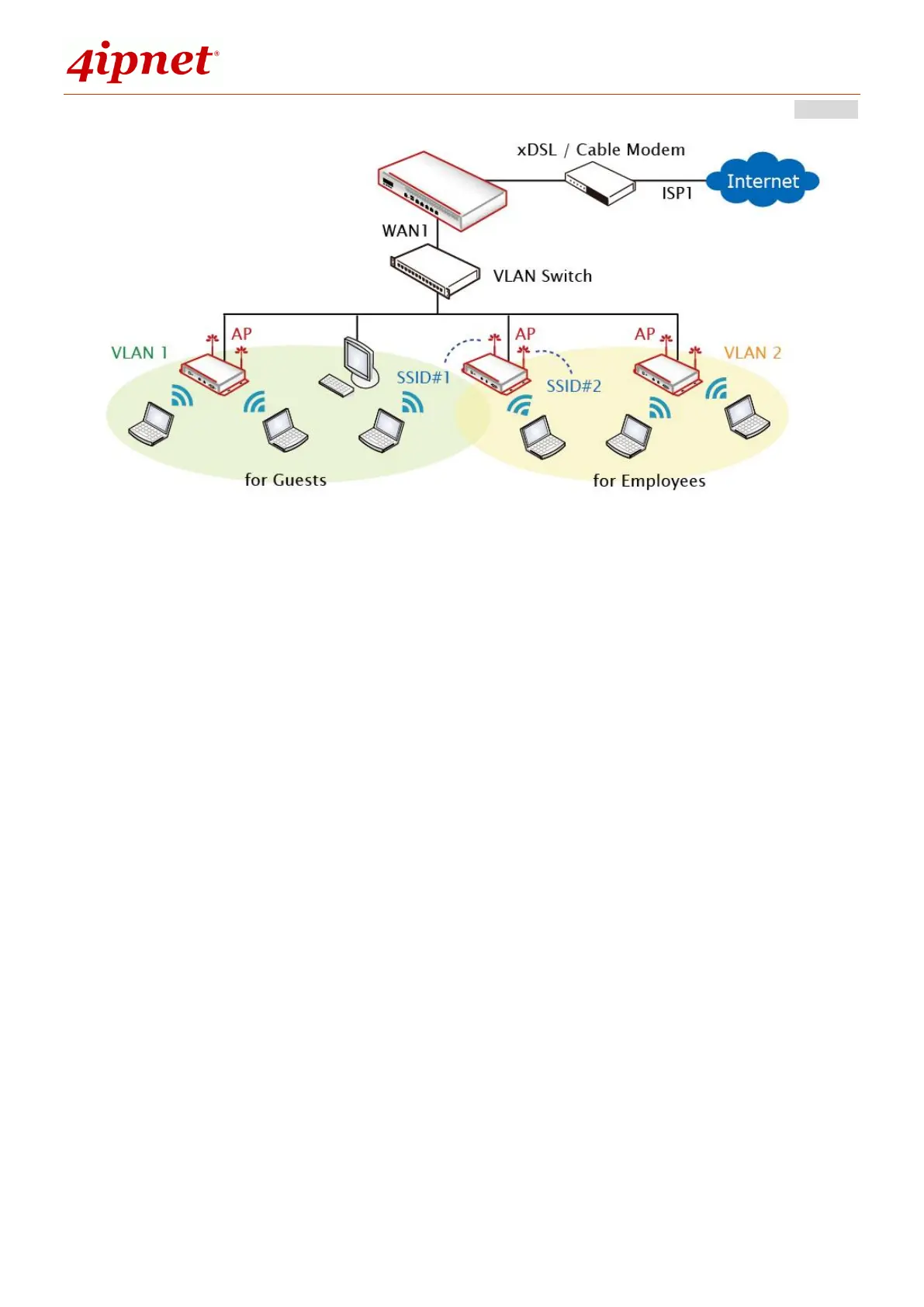

【Graphical Illustration of Layer 2 Topology】
Layer 2 Network Design Guidelines
Always connect hierarchically. If there are multiple switches in a building, use an
aggregation switch.
Locate the aggregation switch close to the network core (e.g. mainframe
housing)
Locate edge switches close to users (e.g. one per floor)
Layer 3 Topology
This network topology aims to build a managed Local Area Network (LAN) which
consists of both wired and wireless capabilities to provide network services to local
and remote physical areas such as enterprise buildings, hotel chains, college
campuses, and etc.
To Next Page
