25
HEATER STATUS MENU
This menu displays non adjustable operational information. This menu contains more information that can be displayed on one
screen of the LCD display. Use the Up & Down Buttons to navigate to the bottom of this menu.

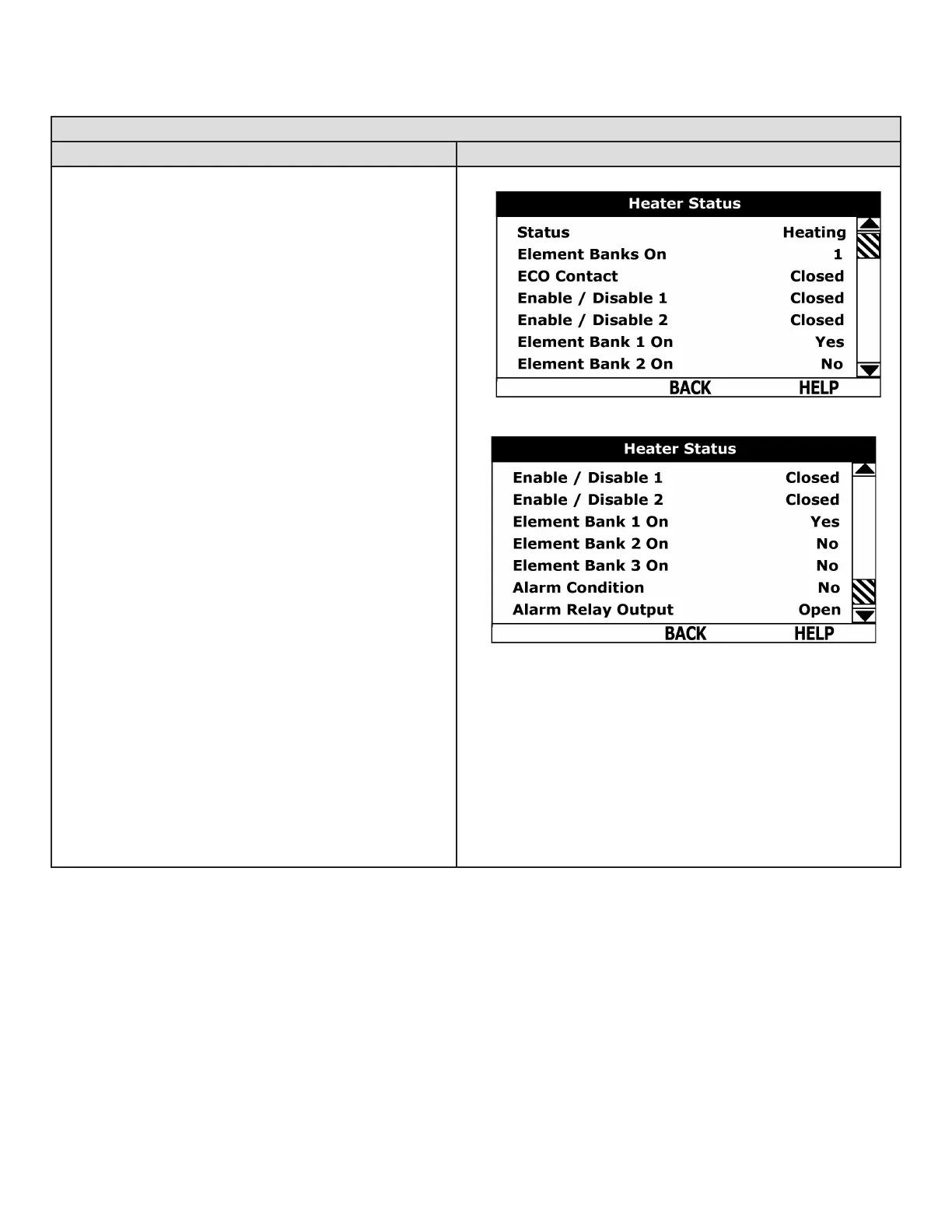

Table 10. Heater Status Menu
ACTION DISPLAY
Status Displays the current Operating State of the control system.
IE: Heating, Standby, Fault. See Table 7 (page 21).
Element Banks On -Displays the current number of heating ele-
ment Banks the control system has energized. Each Bank of ele-
ments contains 3 heating elements.
ECO Contact - Displays the current state of the ECO high tem-
perature limit switch contacts. The ECO switch is located inside the
immersion Temperature Probe (two red wires).
Enable / Disable 1 & 2 - Displays the current state, open or closed,
of the two Enable/Disable circuits (J7 socket on the CCB). See
Wir-
ing Diagrams
(page 39). This is provided for external supervisory
controls such as building EMS (Energy Management System). Both
of these Enable/Disable circuits must be closed to “enable” heating
operation. If either Enable/Disable circuit is open for any reason
heating operation will be “disabled.” There is a plug with two jumper
wires installed from the factory in the CCB J7 socket to enable heat-
ing operation when external controls are not in use.
Note: If a supervisory control(s) is used to enable/disable
heating operation, install eld wiring between the
J7 socket on the CCB and a set of “dry contacts”
on the external control per all applicable building
codes. This is a switching circuit only: DO NOT
apply any external voltage or connect any load (IE:
relay coil) to either circuit.
Element Bank On - Displays the on/o status of each Bank of heat-
ing elements. Yes = On, No = O.
Alarm Condition - Displays the status of the user denable Alarm
Output function. See
Alarm Output Setup Menu
(page 30). Yes =
alarm condition has been met, No = alarm condition has not been
met.
Alarm Relay Output - Displays the state of the normally open con-
tacts of the Alarm Output relay. This relay (J3 contacts on the CCB)
is used for building EMS (Energy Management System) notication
of operational conditions such as Fault conditions.
Top of Menu
Bottom of Menu
