DIAGRAMSDIAGRAMS
WIRING DIAGRAMS
The water heater’s electrical components are pictured and identied on page 7. The following describes the heater circuits and
includes wiring diagrams. All heater circuits are designed for 60/50 hertz alternating current. The water heater circuit wiring is 12
AWG, AWM, or TEW type, rated 600 volts, 105°C. Fusing consists of three 30 amp fuses for each contactor.

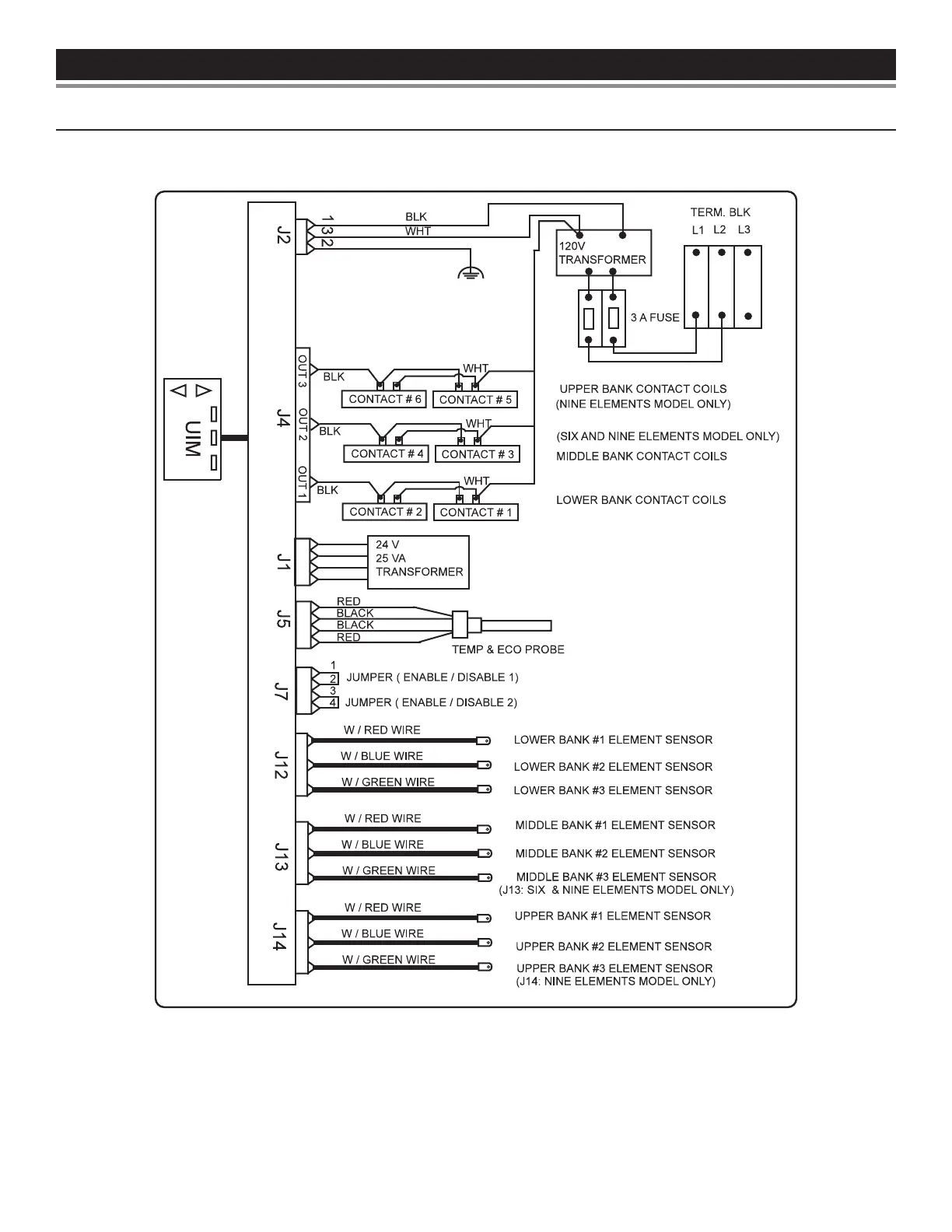

Figure 16. CCB (Central Control Board) Circuit Board.
