44

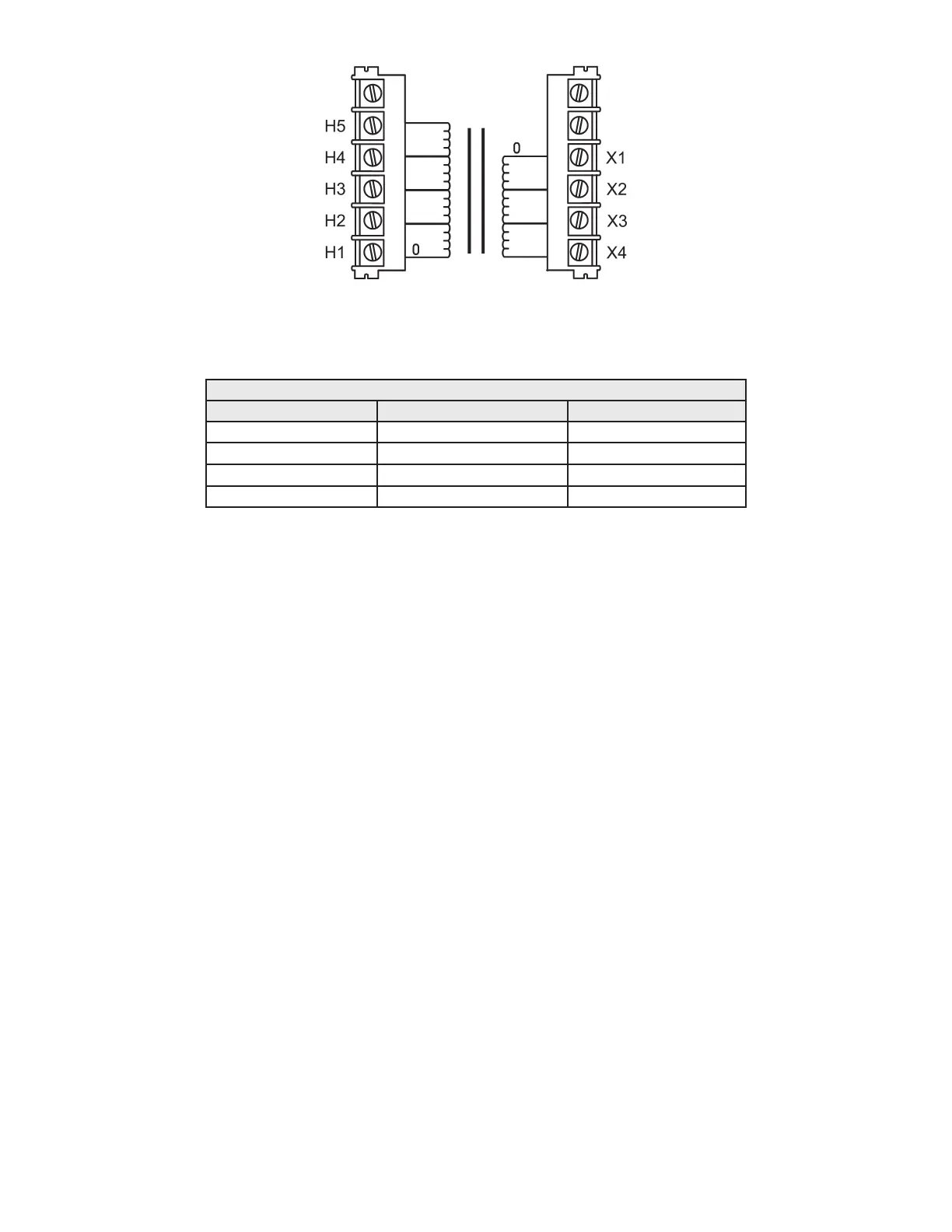

Figure 21. Transformer Connections For “Y” Connections
Table 18. Universal Transformer Conguration
Input Voltage Input Connection Output Connection
220 VOLT H1-H2 X1-X4
380 VOLT H1-H3 X1-X4
400/415 VOLT H1-H3 X1-X3
575/600 VOLT H1-H5 X1-X3
Printed on 5/6/2022 7:17 AM CT
