AAON RN Series Installation, Operation & Maintanance Manual

101
Table 49 - 26, 31-50, 60, and 70 ton Energy Recovery Wheel Filters
Feature 1A
Quantity / Size
Type
F, G, H, J, Q, R, S, T,
U, V, W, Y, Z, 1, 2, 3
4 / 24” x 24” x 4”
Pleated, 30% Eff, MERV 8
With Energy Recovery Wheel Exhaust
Air Filters, Feature 6A - D, F, G
OA - 4 / 24” x 24” x 2”
EA - 8 / 16” x 20” x 2”
4
3 / 24” x 24” x 4”
With Energy Recovery Wheel Exhaust
Air Filters, Feature 6A - D, F, G
OA - 3 / 24” x 24” x 2”
EA - 6 / 16” x 20” x 2”
Table 50 - 55, 65, and 75-140 ton Energy Recovery Wheel Filters
Feature 1A
Quantity / Size
Type
F, G, H, J, Q, R, S, T
10 / 24” x 24” x 2”
Pleated, 30% Eff, MERV 8
With Energy Recovery Wheel Exhaust
Air Filters, Feature 6A - D, G
OA - 10 / 24” x 24” x 2”
EA - 14 / 25” x 16” x 2”
U, V, W, Y, Z, 1, 2, 3
10 / 24” x 20” x 2”
With Energy Recovery Wheel Exhaust
Air Filters, Feature 6A - D, G
OA - 14 / 20” x 24” x 2”
EA - 14 / 25” x 16” x 2”
6-8 and 10 ton Units
9 and 11-15 ton Units
16-25 and 30 ton Units
26, 31, and 40 ton Units
50, 60, and 70 ton Units
Two Coils with Two Filter Layouts

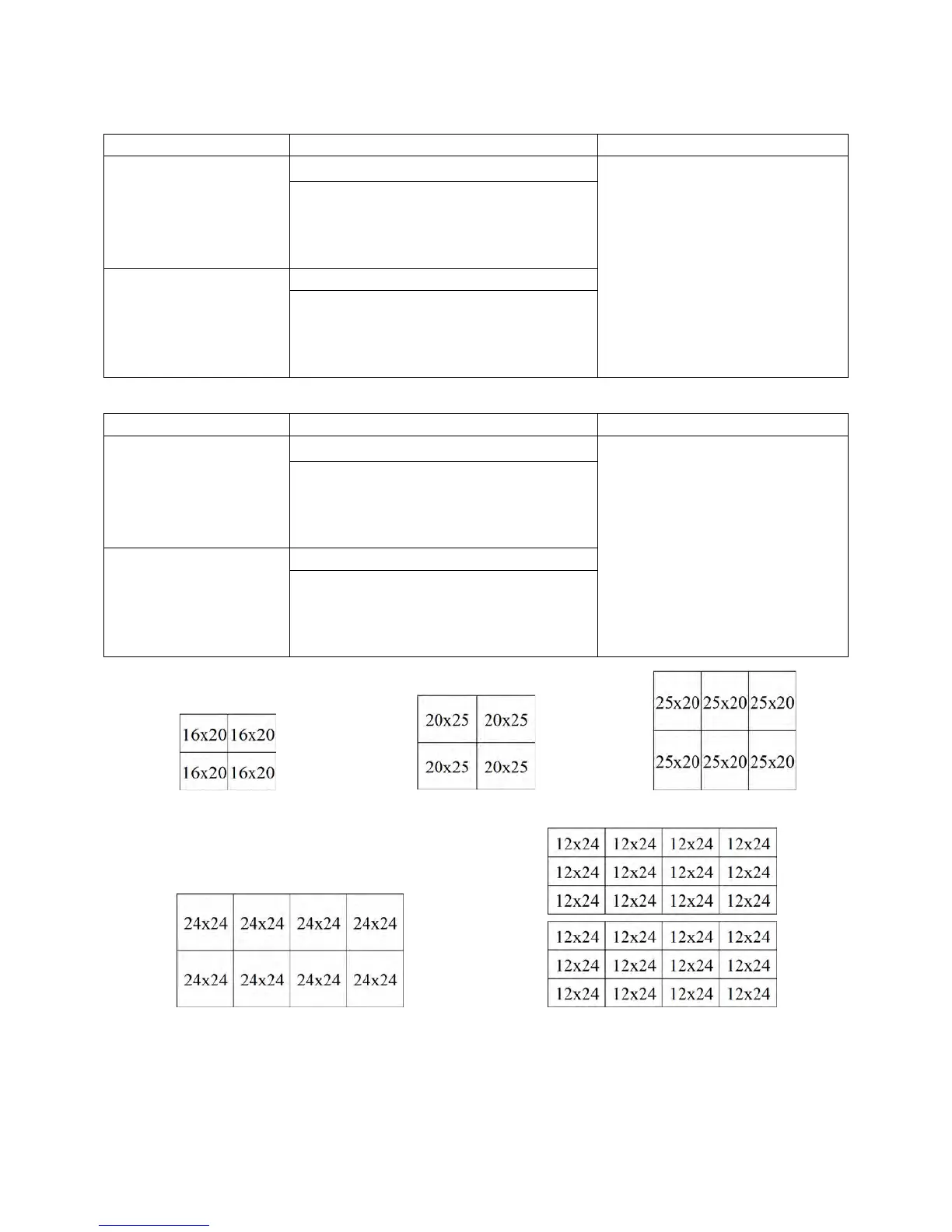

Figure 52 - RN Series 6-50, 60, and 70 ton Standard Filter Layouts
All dimensions are in inches and are height x length.
Layouts are viewed from the upstream side of the cooling coil.
