AAON RN Series - Replacement Parts; Figure 53 - RN Series 55, 65, 70-140 Ton Standard Filter Layouts

102

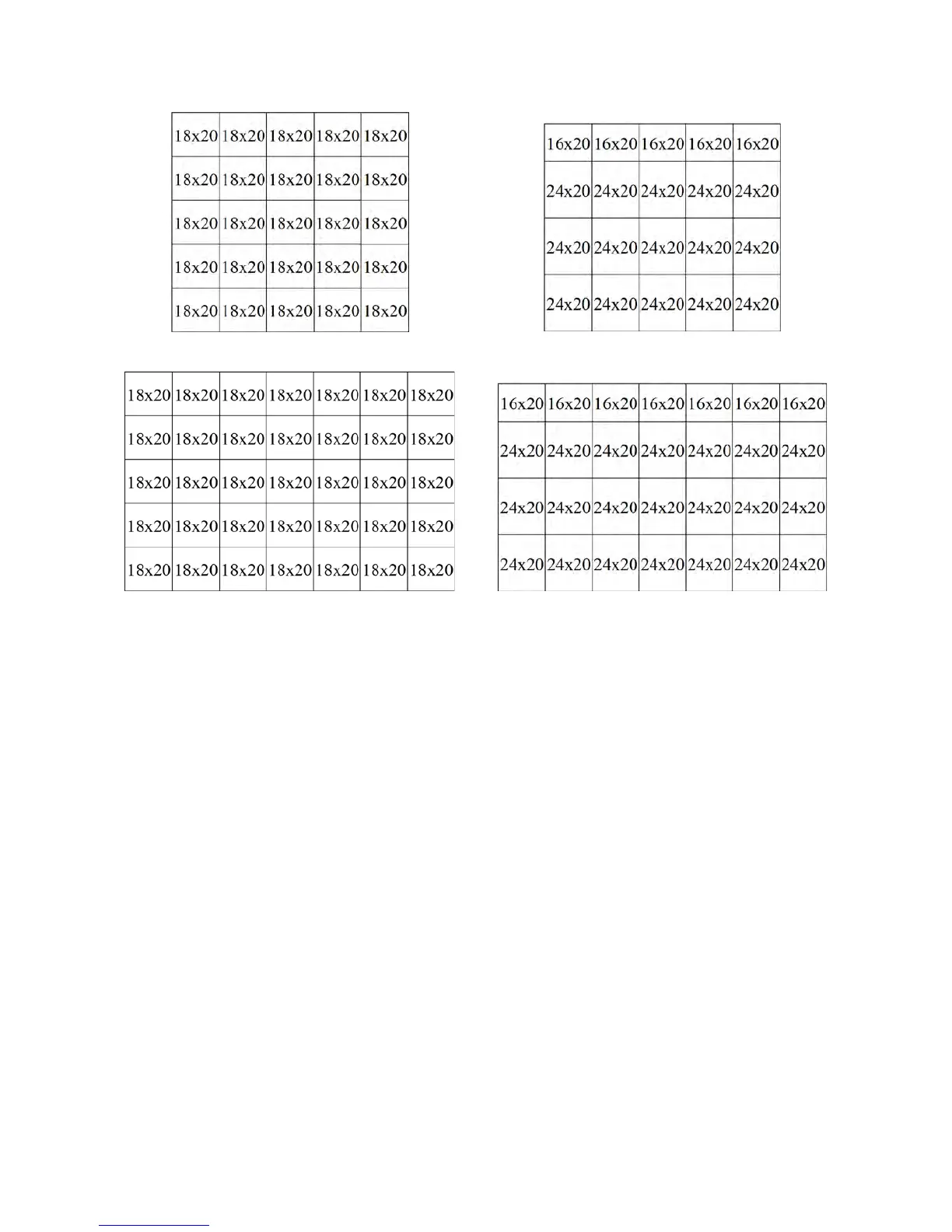

55, 65, and 75 ton Units, 2” Filters
55, 65, and 75 ton Units, 4” Filters
90-140 ton Units, 2” Filters
90-140 ton Units, 4” Filters
Figure 53 - RN Series 55, 65, 70-140 ton Standard Filter Layouts
All dimensions are in inches and are height x length.
Layouts are viewed from the upstream side of the cooling coil.
Replacement Parts
Parts for AAON equipment may be obtained
from AAON at www.aaonparts.com. When
ordering parts reference the unit serial
number and part number.
AAON
Warranty, Service and Parts Department
2424 S. Yukon Ave.
Tulsa, OK 74107
Ph: 918-583-2266
Fax: 918-382-6364
www.aaon.com
Note: Before calling, technician should have
model and serial number of the unit
available for the service department to help
answer questions regarding the unit.
