AAON RN Series Installation, Operation & Maintanance Manual

44

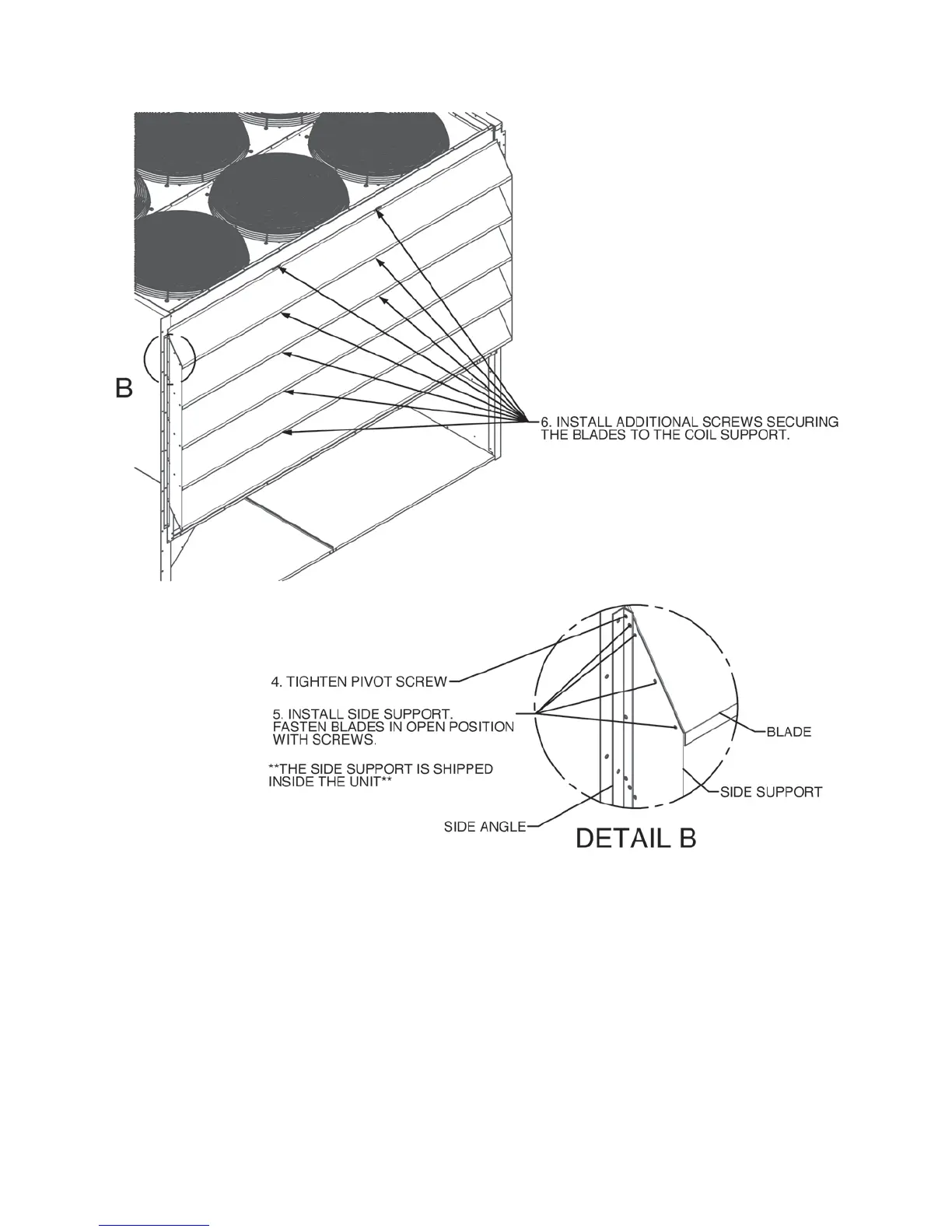

Figure 21 - 90-140 ton Condenser Coil Guard Installation Instructions 2
Outside Air Rain Hood
Rain hood must be opened before startup of
the unit. Fresh air intake adjustments should
be made according to building ventilation of
local code requirements.
6-25 and 30 ton Units
Remove the two screws at the bottom of the
rain hood that secure it in the shipping
position. Remove the screws that attach the
side pieces of the hood to the top of the
hood.
Rotate the side pieces so that the holes along
one edge line up with the holes on the top
piece and the flange is on the inside of the
rain hood.
Attach the side pieces to the top of the hood
using the provided screws and attached the

AAON RN Series Specifications

General

Category	Heat Pump
HSPF	Up to 10.0
Refrigerant	R-410A
Compressor Type	Scroll
Efficiency	High
Series	RN
Voltage Options	208-230/460V
Unit Weight	Varies with model
Dimensions	Varies with model
