AAON RN Series - Metal Mesh Filters (6-25 and 30 Ton Units); Figure 25 - Factory Supplied End Flashings; Figure 26 - Rain Hood with Metal Mesh Filter Rack Installation

46

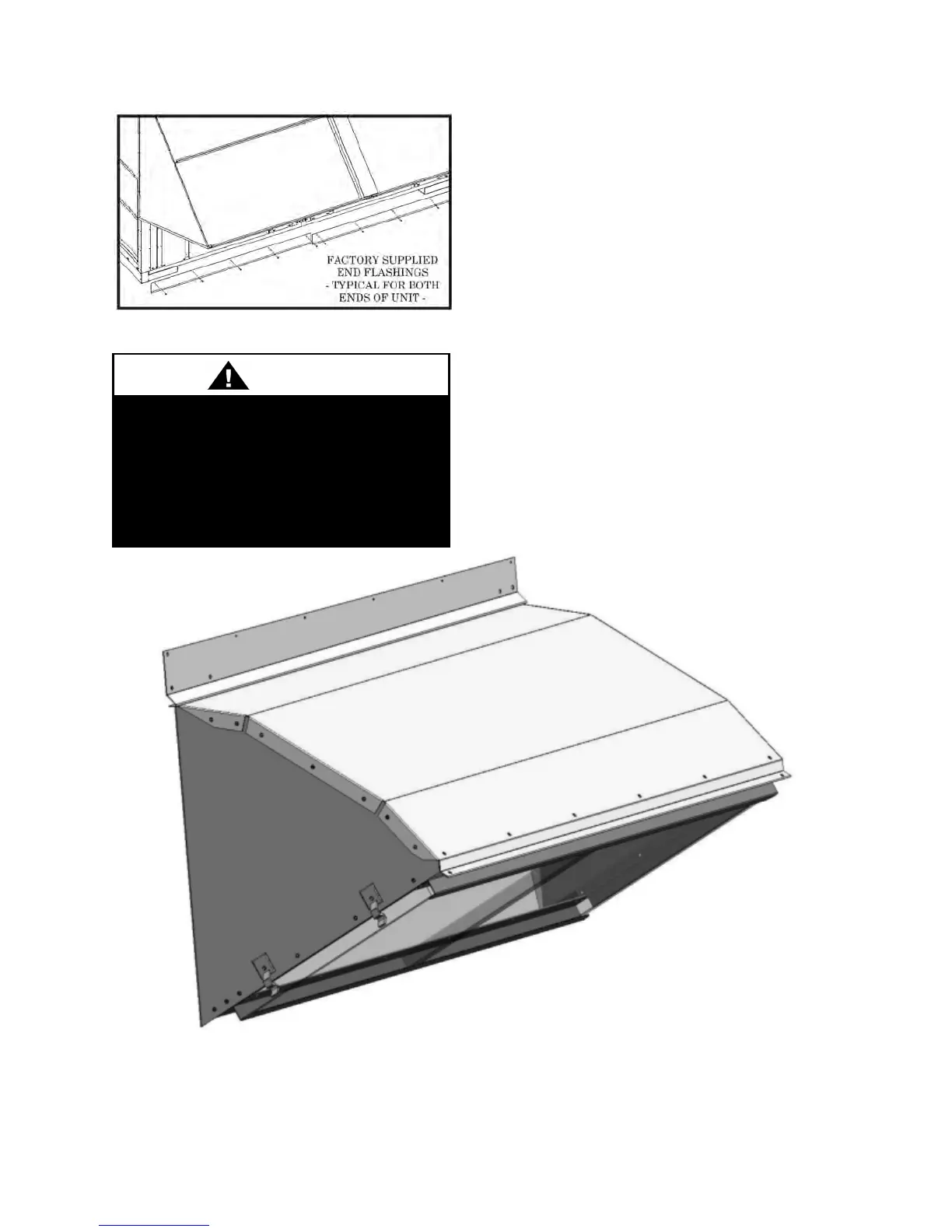

Figure 25 - Factory Supplied End Flashings
Metal Mesh Filters (6-25 and 30 ton
Units)
Metal mesh outside air filters require
installation of the filter rack on the intake of
the rain hood.
Clips which hold the metal mesh filters in
the filter rack should face outward.
Figure 26 - Rain Hood with Metal Mesh Filter Rack Installation
In order to prevent water leakage into
the roof curb,
the factory provided
sheet metal flashings MUST BE
attached to the unit base to cover the
shipping slots at both ends of the
unit.
CAUTION
