32
RSMD-CM T
echnical Guide
APPENDIX
A
:
CONDENSER OPTIONS
T
wo Condensers Per Module (Default)

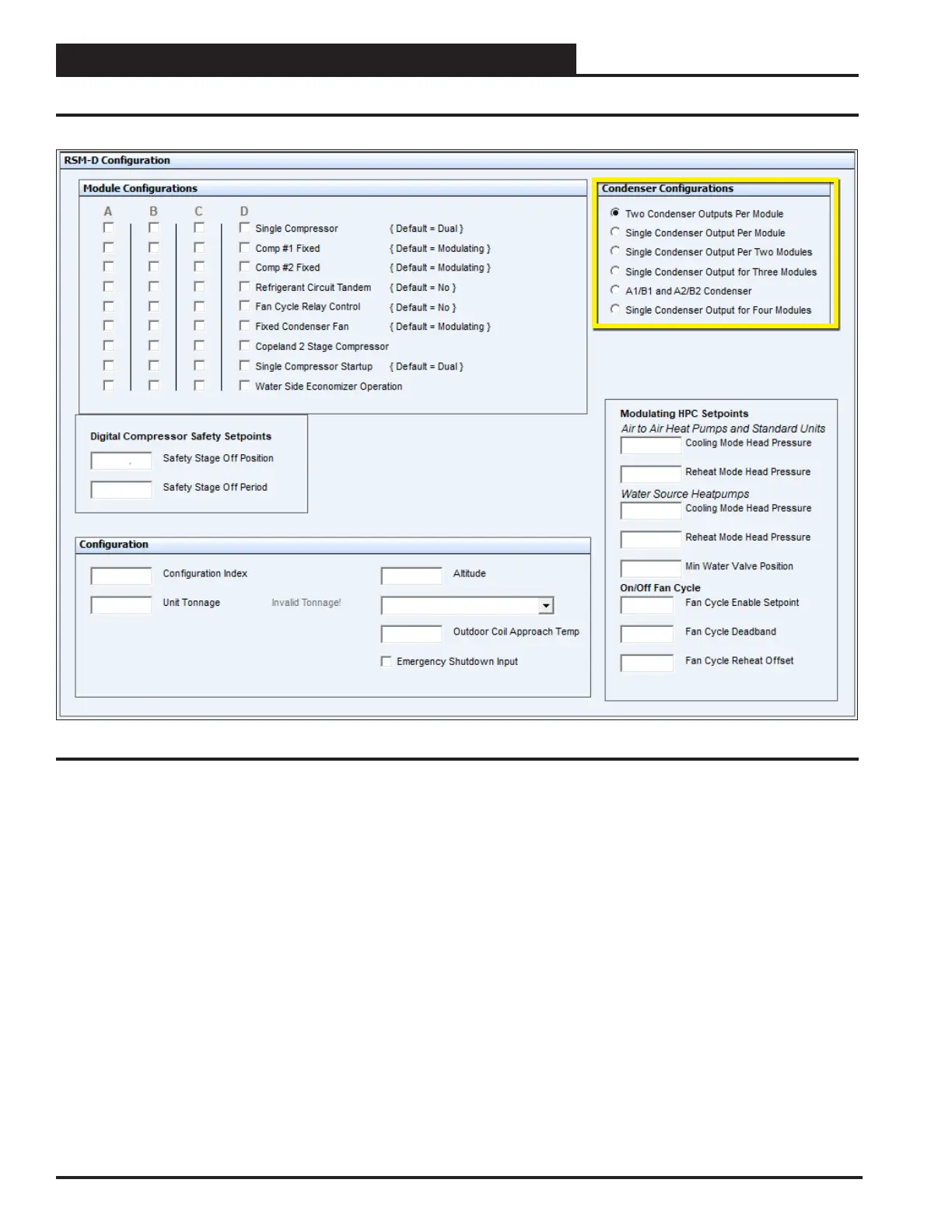

Figure 7:
Prism 2 Condenser Conguration - T
wo Condenser Operations (Default)
HV
AC
Unit Application
The default
T
wo
Condensers Per
Module conguration
is used
with the following HV
AC units:
•
B-BOX
•
C-BOX 16-20 T
on
•
D-BOX 26-40 T
on
31
33
