8
RSMD-CM Technical Guide
WIRING
Inputs Wiring
RSMD-CM Wiring
The RSMD-CM provides three analog inputs, four binary inputs,
ve relays, and two analog outputs. See Figure 2, this page, for
inputs wiring and Figure 3, page 9, for outputs wiring.
WARNING: Observe polarity! All boards must be wired
with GND-to-GND and 24-VAC-to-24
VAC. Failure to observe polarity will result
in damage to one or more of the boards.
Expansion modules must be wired in such
a way that the expansion modules and the
controller are always powered together. Loss
of power to the expansion module will cause
the controller to become inoperative until
power is restored to the expansion module.
Suction Pressure Transducer Wiring
The Suction Pressure Transducers must be wired as shown
in Figure 2, this page. It is typically required for all VCCX2
applications.
The Suction Pressure Transducers are used to measure suction
pressure at the HVAC unit’s DX evaporator coil suction line.
This suction line pressure is converted to saturated refrigerant
temperature. The saturated refrigerant temperature is used to
properly control the compressors to maintain a given Suction
Coil (Saturated) Temperature Setpoint. In Cooling Mode,
the VCCX2 resets the Suction Coil (Saturated) Temperature
Setpoint to maintain a given Supply Air Temperature Setpoint.
In Dehumidification Mode, the Suction Coil (Saturated)
Temperature Setpoint is a user congurable setpoint that can be
reset based on indoor humidity levels.

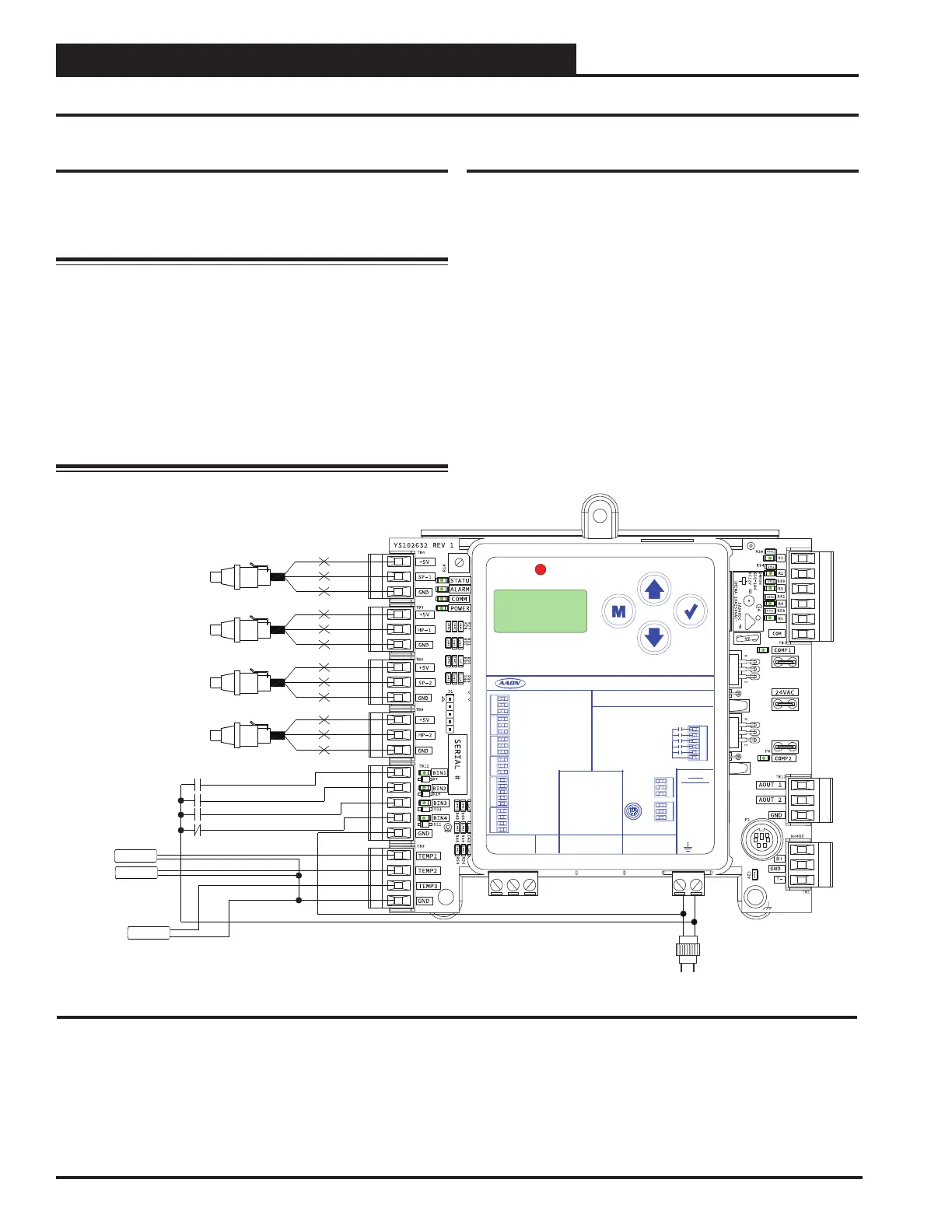

Figure 2: RSMD-CM Inputs Wiring
GND
18-30
VAC
Head Pressure 2
Transducer (by others)
Comp. Discharge
Temp 1 Sensor
Comp. Discharge
Temp 2 Sensor
Leaving Water
Temp Sensor
Comp Status 1
Comp Status 2
Outside Coil Temp/POWF
Emergency Shutdown
Suction Pressure 1
Transducer
RD
WT
BL
Head Pressure 1
Transducer (by others)
Suction Pressure 2
Transducer
Line Voltage
ALARM
UP
DOWN
ENTERMENU
AAON P/N:ASM06709
+24 VAC
GND
RELAY CONTACT
RATING IS 1 AMP
MAX @ 24 VAC
CONDENSER 1
COMP 1
COMP 2
ANALOG OUT
REVERSING VALV E
COMMON
RELAY OUTPUT
TERMINALS
LABEL P/N:
G102070
COND 1
COND 2
GND
24 VAC
POWER ONLY
WARNING!
POLARITY
MUST BE
OBSERVED
OR THE
CONTROLLER
WILL BE
DAMAGED
CONDENSER 2
HEAD PRES 1
+5 V
+5 V
COMP DIS 1
COMP 1
SP-1
HP-1
COMP DIS 2
COMP 2
GND
GND
OA COIL/ POWF
EMER SHDN
GND
LEAVING H20
GND
SUCTION PRES 2
HEAD PRES 2
+5 V
+5 V
SP-2
HP-2
GND
GND
R+
SHD
T-
R+ SHD T-
E-BUS
DUAL E-BUS
EXPANSION
RSMD-CM
www.aaon.com
SUCTION PRES 1
RD
WT
BL
RD
WT
BL
RD
WT
BL
