38
RSMD-CM T
echnical Guide
APPENDIX
A
:
CONDENSER OPTIONS

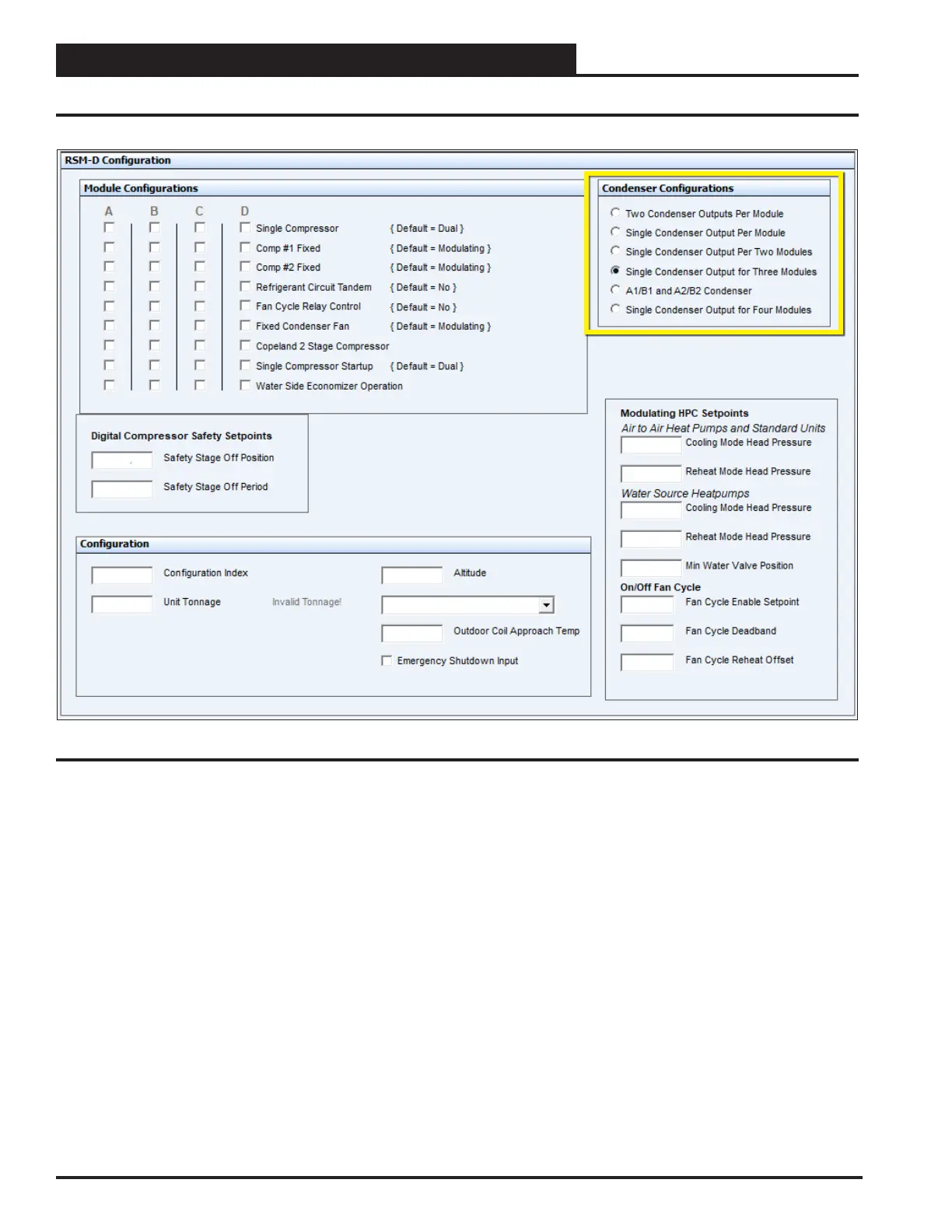

Single Condenser for Three Modules
Figure 13:
Prism 2 Condenser Conguration - Single Condenser for Three Modules
HV
AC
Unit Application
The Single Condenser for Three Modules conguration is used
with the following HV
AC units:
•
RLC BOX
•
RLD BOX
37
39
