65VCCX2 Controller Technical Guide
APPENDIX B: LCD SCREENS

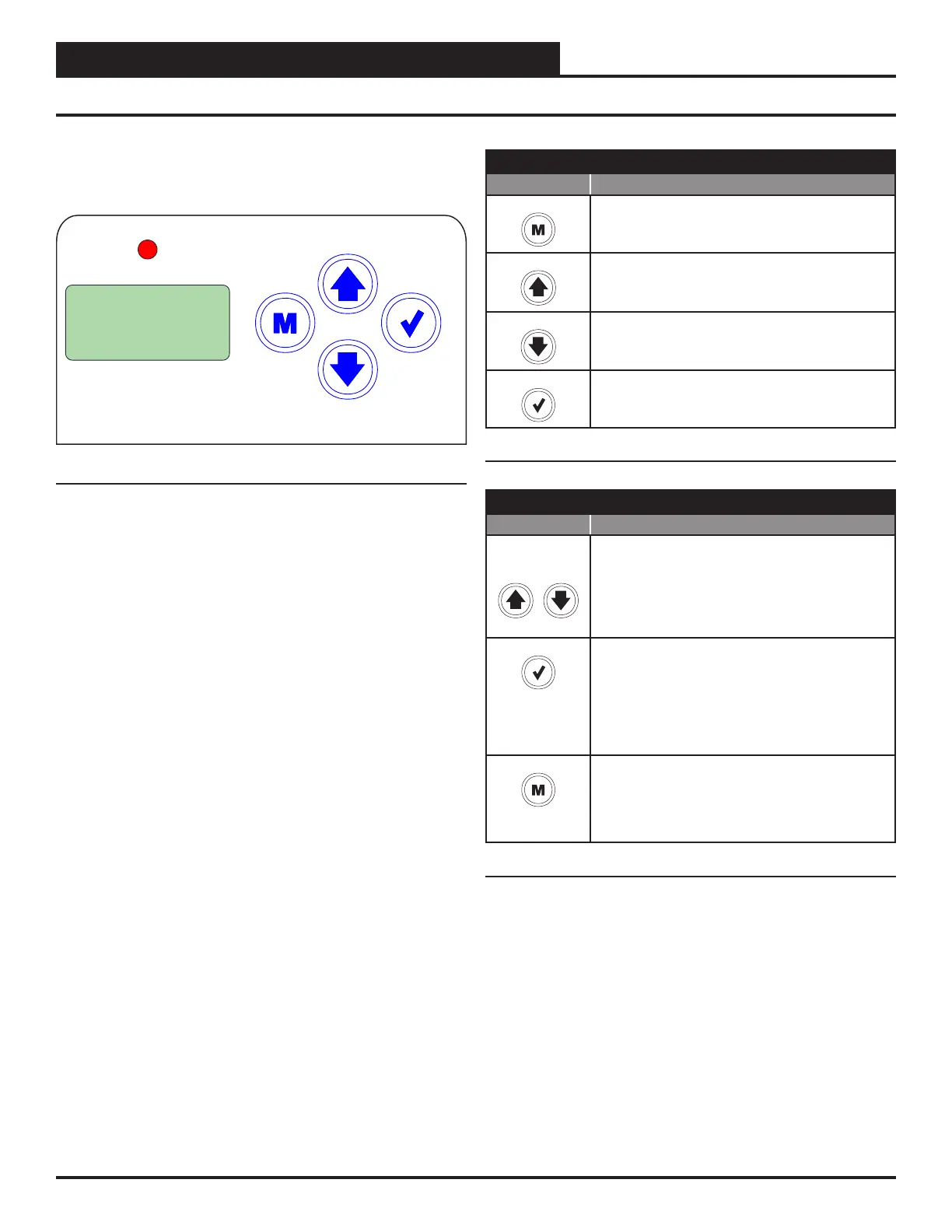

LCD Display Screen and Navigation Keys
The LCD display screens and buttons allow you to view status and
alarms, and enable force modes. See Figure 24, this page, and refer
to Table 23 and Table 24, this page, for key functions.
ALARM
UP
DOWN
ENTERMENU
Figure 24: LCD Display and Navigation Keys
NAVIGATION KEY FUNCTIONS
KEY FUNCTION
MENU Use the <MENU> key to move through screens
within Main Menu categories and return to the Main
Menu while at other screens.
UP Use this key to adjust setpoints and change
congurations.
DOWN Use this key to adjust setpoints and change
congurations.
ENTER Use the <ENTER> key to navigate through the Main
Menu Screen categories.
Table 23: Navigation Key Functions
EDITING KEY FUNCTIONS
KEY FUNCTION
UP
or
DOWN
Use the <UP> or <DOWN> key to enter Edit Mode
on a user-adjustable screen. Edit Mode is indicated
by the underscore appearing on the screen.
NOTE: Entering Edit Mode will also adjust the value
up one (<UP> key) or down one (<DOWN> key), so
you may have to readjust the value.
ENTER Use the <ENTER> key to move through the digits
in the screen when editing a numeric value. An
extended press of the <ENTER> key saves your
edits no matter the location of the editing cursor
within the digits.
Press the <ENTER> key to save a non-numeric
value such as Hi Speed Network.
MENU The <MENU> key cancels editing when in Edit Mode.
The screen you were editing will return to its original
value and the underscore will disappear.
A second press of the <MENU> key will return you
to the Main Menu.
Table 24: Editing Key Functions
