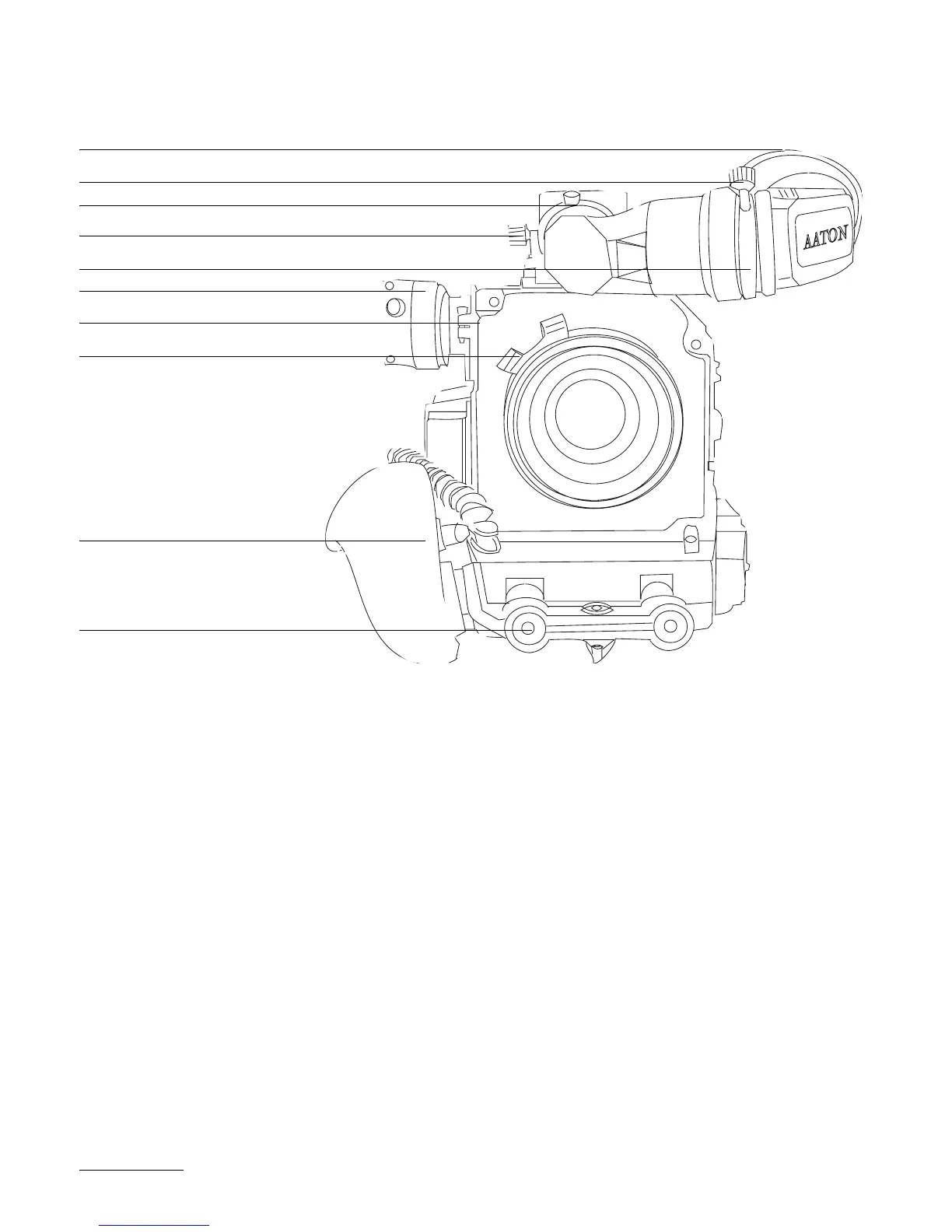

1.1 FRONT
1 Eyepiece
2 Friction Adjusting Ring adjusts the tension of the eyepiece swivel
3 Diopter Set Ring adjusts the diopter setting of the viewfinder to the operator’s eye
4 Lateral Lock Knob locks the lateral position of the viewfinder
5 PL Lens Port
6 CCD Control Unit
7 CCD Friction Ring
8 Lens Locking Ring
9 Wooden Handgrip
10 15mm Front Rods
12
1
2
3
4
5
6
7
8
9
10
