Once the door is closed, you need to adjust the loop.
•Place the magazine with its digital display facing toward you and
the magazine nose being to your right. The correct loop size can be
adjusted, by using the loop tool delivered with the magazine.

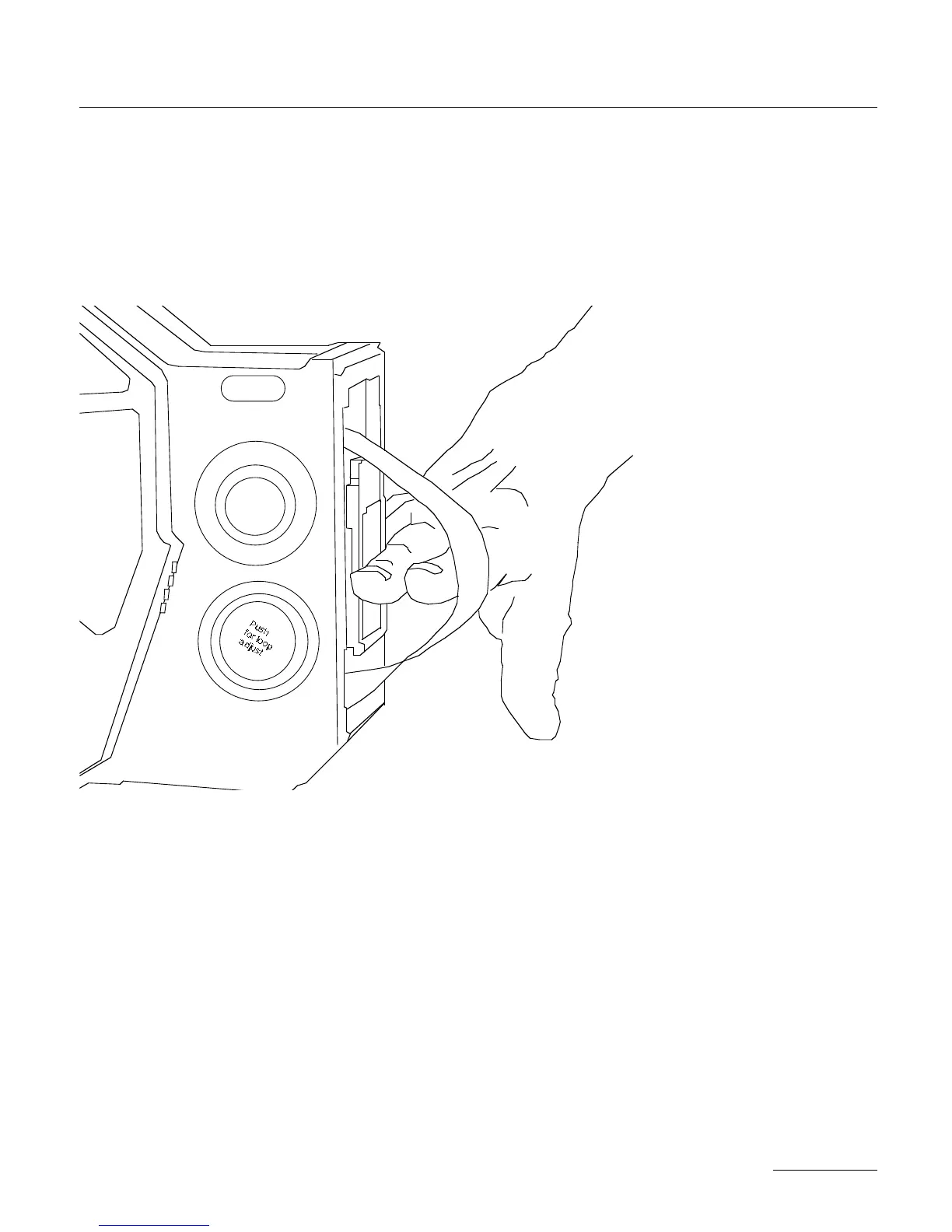

•If you cannot insert the tool between the mag pressure plate and
the fim, you need to enlarge the loop. To do so, push the disk mar-
ked "push for loop adjust" with your right tumb while holding the
film against the pressure plate with your right forefinger. Using your
left hand rotate the upper magnetic wheel clockwise until the loop
length allows you to insert the tool.
•If you need to reduce the loop length, simply push the disk marked
"push for loop adjust" with your right thumb and rotate the upper
magnetic wheel counterclockwise before installing the mag on the
camera. DO NOT FORGET to remove any slack existing between
the lower sprocket and the take-up spool. To do so, rotate the
magnetic wheel situated at the left of the loop adjusting disk coun-
terclockwise. The wheel should turn smoothly as the film winds on
49
THE MAGAZINE
