JTAG interface for RDI Debuggers, BDI1000 User Manual 11
© Copyright 1999-2003 by ABATRON AG V 1.10

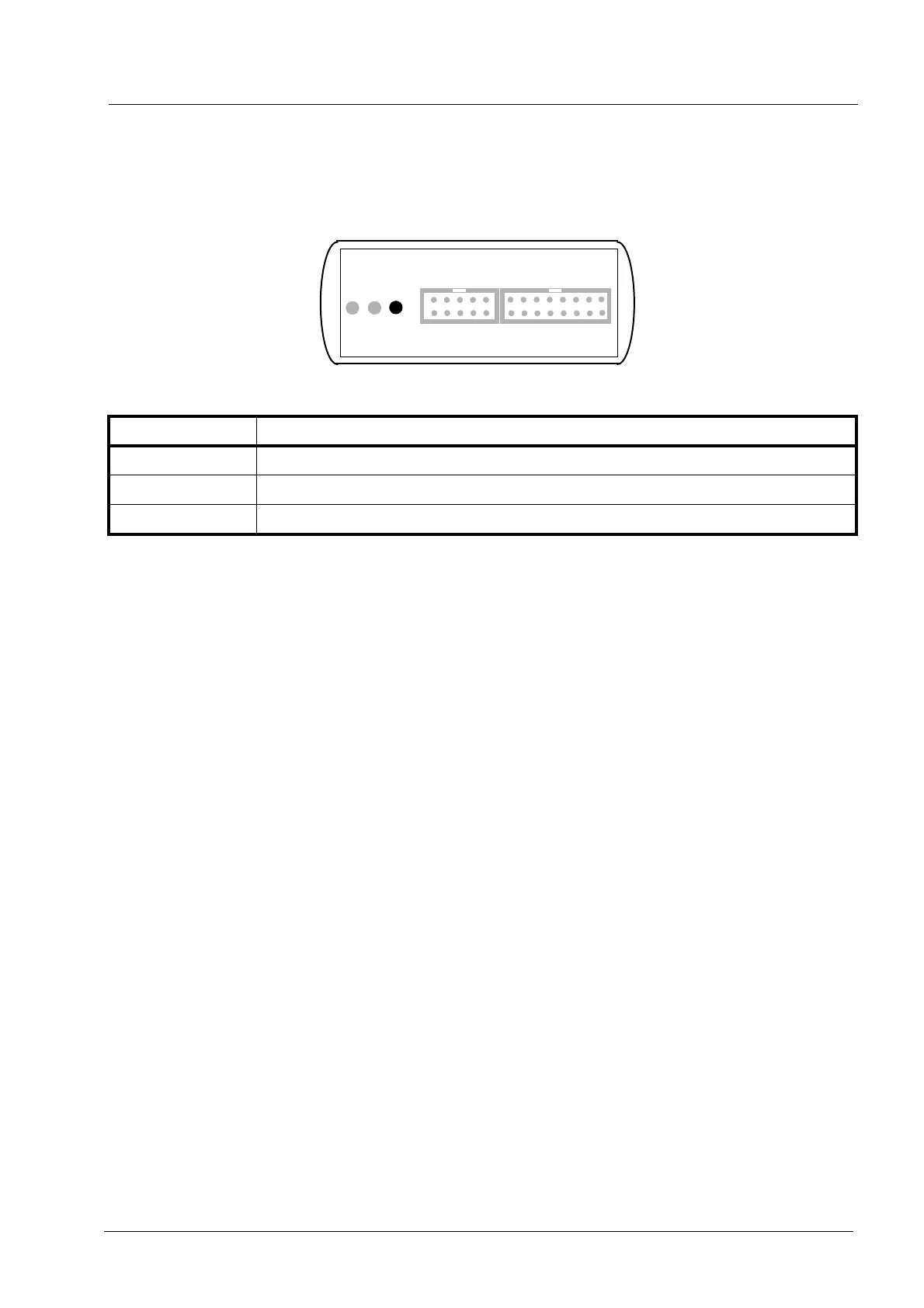

2.3 Status LED «MODE»
The built in LED indicates the following BDI states:
MODE LED BDI STATES
OFF The BDI is ready for use, the firmware is already loaded.
ON The power supply for the BDI1000 is < 2.5VDC.
BLINK The BDI «loader mode» is active (an invalid firmware is loaded or loading firmware is active).
TARGET A TARGET B
BDI
TRGT
MODE
